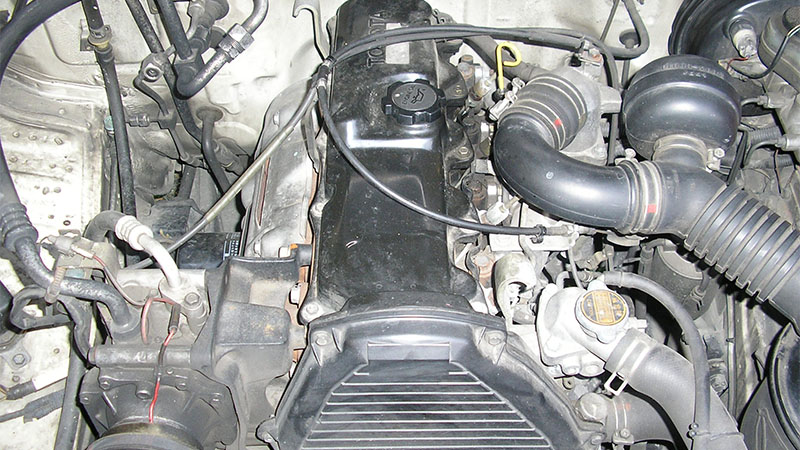

The Toyota 2L engine is a versatile workhorse that has powered a variety of Toyota vehicles, including the Hilux and certain Land Cruiser 70-series models.
Part of the renowned Toyota L engine family, the 2L engine is known for its durability, efficiency, and dependability, making it a popular choice for commercial vehicles, off-roading, and even as a replacement engine in older Toyota models.
In this guide, we’ll take a closer look at the Toyota 2L engine, diving into its specifications, performance, common issues, and comparisons to other engines in the L family.
Toyota 2L Engine Specifications
Let’s take a closer look at the key specifications of the Toyota 2L diesel engine, one of the most reliable and widely used powerplants in Toyota’s lineup.
| Specification | Details |
|---|---|
| Engine Type | Inline-4, Diesel |
| Displacement | 2.4 liters (2446 cc) |
| Power Output | 67 – 72 hp @ 4200 rpm (depends on model and year) |
| Valve Train | SOHC 8-valve |
| Injection System | Indirect injection |
| Torque | 130 – 140 Nm @ 2400 rpm |
| Compression Ratio | 22 : 1 |
| Fuel Efficiency | 9 – 12 km/l (depends on vehicle and driving conditions) |
| Production Years | 1980 – 1997 |
Although its name might suggest otherwise, the “2L” refers to the engine code, not its displacement. This 2.4-liter inline-four diesel engine was designed for durability, fuel efficiency, and smooth performance.
Its high compression ratio and robust design make it well-suited for long-distance, off-road, and commercial applications, where reliability is essential.
Applications of the Toyota 2L Engine
The Toyota 2L engine has found a home in various Toyota vehicles over the years. Here are some of the most notable applications:
- Toyota Hilux: One of the most popular vehicles to feature the 2L engine, especially in older models.
- Toyota Land Cruiser: A rugged off-road vehicle where the 2L engine has been used in certain versions.
- Toyota Hiace: This diesel engine has powered several commercial versions of the Hiace, which are often used in transport and logistics.
- Other Toyota Models: The 2L has also been used in other models like the regional diesel variants of the Corolla and other export models.
It’s also worth noting that the 2L engine wasn’t just limited to Toyota cars and trucks. It was also used in commercial vehicles, buses, and even some agricultural equipment due to its rugged reliability and efficiency.
For example, the Toyota Coaster, a popular bus model, was equipped with the Toyota 2L engine in its earlier iterations. This engine powered the Coaster through years of daily commercial use, providing a reliable and efficient solution for transportation companies.
Additionally, the engine was utilized in agricultural machinery such as tractors and irrigation pumps, further demonstrating its versatility in demanding environments beyond just passenger vehicles.
Performance and Reliability
Performance
The Toyota 2L engine may not have the power of modern turbocharged engines, but it performs reliably in its intended applications. With 67 to 72 horsepower and 130–140 Nm of torque, it’s well-suited for light commercial vehicles like the Toyota Hilux and Hiace, as well as off-road use.
At low to moderate speeds, it delivers a smooth driving experience—ideal for city driving, rural roads, light towing, or off-road exploration. While it may feel less powerful compared to newer engines, the 2L strikes a solid balance between performance and economy, making it a favorite for commercial fleets and reliable workhorse applications.
Toyota later introduced improved versions such as the 2L-II (with better cooling and refinement) and the 2L-TE (a turbocharged electronic version), which offered more power and smoother performance while maintaining the same reliability that defined the original 2L.
Reliability
The Toyota 2L engine is known for its exceptional durability. Its simple design and sturdy construction contribute to its longevity, with well-maintained engines often surpassing 300,000 km. This reliability makes it popular in both commercial use and older Toyota models that continue to run smoothly even with age.
However, like all older engines, it’s not immune to common wear-and-tear issues such as oil leaks, fuel injector problems, and overheating in high-mileage units. Regular maintenance can help prevent these problems and keep the engine running efficiently for years.
Common Problems with the Toyota 2L Engine
While the Toyota 2L engine is known for its reliability, no engine is without its issues—especially as it ages. Here are some of the most common problems owners may encounter:
Oil Leaks
As the engine gets older, oil seals and gaskets can deteriorate, leading to small leaks. This is especially common in high-mileage units. While not a major problem, it’s worth checking during regular maintenance to prevent oil loss or contamination.
Fuel System Problems
Over time, the fuel injectors and injection pump may wear out, causing rough idling, reduced power, or black exhaust smoke. Cleaning or replacing these components can help restore proper fuel delivery and performance.
Overheating
Older 2L engines can overheat if the radiator or water pump is failing, or if coolant flow is restricted. In some cases, early 2L engines experienced cylinder head cracking due to cooling limitations, an issue that Toyota later addressed in the 2L-II and 3L designs with improved coolant passages and head durability. Keeping the cooling system clean and efficient is essential for preventing serious damage.
Excessive Oil Consumption
Engines with worn valve seals or head gaskets may start consuming more oil than normal. Monitoring oil levels and addressing leaks early can prevent low-oil damage.
Maintenance-Related Issues
The Toyota 2L engine is generally easy to maintain, but a few items require attention:
- Timing Belt: Replace every 100,000–150,000 km to prevent timing failure or internal damage.
- Worn Seals and Gaskets: These components naturally degrade with age. Replacing them early prevents leaks and maintains oil pressure.
With regular maintenance and timely inspections, most Toyota 2L engine issues can be avoided, keeping the engine reliable for many more years of service.
Toyota L Engine Comparison
The Toyota L engine family is renowned for its reliability, longevity, and versatility, powering everything from compact trucks to heavy-duty commercial vehicles. Among them, the 2L engine stands out as one of the most trusted and widely used.

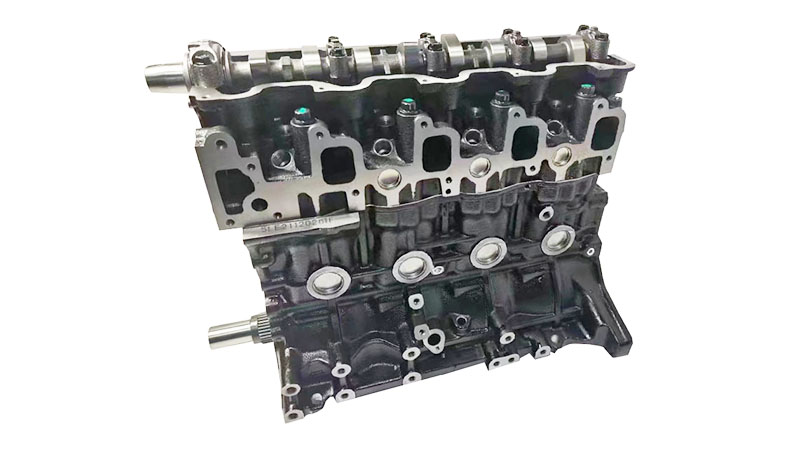

Below is a comparison between the L, 2L, 3L, and 5L engines, showing their differences in displacement, performance, and ideal applications.
| Feature | L Engine | 2L Engine | 3L Engine | 5L Engine |
|---|---|---|---|---|
| Displacement | 2.2L (2188 cc) | 2.4L (2446 cc) | 2.8L (2779 cc) | 3.0L (2986 cc) |
| Power Output | ~67–72 hp | ~67–72 hp | ~90 hp | ~105–110 hp |
| Torque | ~130–140 Nm | ~130–140 Nm | ~190 Nm | ~240 Nm |
| Fuel Efficiency | Best for smaller vehicles | 9–12 km/l | Lower than 2L | Lower than 2L |
| Applications | Light commercial, off-road | Light vehicles, small commercial | Larger vehicles, towing | Heavy-duty trucks |
| Use Case | Small to mid-sized vehicles | Ideal for fuel efficiency | Heavy-duty work, towing | Best for commercial transport |
| Reliability | Excellent | Excellent | Very good | Very good |
Each engine in the L family was designed with a specific purpose in mind — from the lightweight and efficient 2L to the high-torque 5L used in heavy trucks. The 2L engine strikes a middle ground, offering reliable performance, good fuel economy, and low maintenance costs, making it one of Toyota’s most balanced diesel engines for both on-road and commercial use.
Upgrades for the Toyota 2L Engine
The Toyota 2L engine is dependable by design, but a few smart upgrades can noticeably enhance its performance and reliability.
- Turbocharging:
Adding a turbocharger can boost power by around 20–30%, giving the 2L stronger torque and quicker response. Toyota’s own 2L-T turbo variant proves the engine handles turbocharging well when tuned and cooled properly. - Fuel System Upgrades:
Replacing old fuel injectors and upgrading the fuel pump can improve combustion efficiency, resulting in better throttle response, smoother idling, and reduced fuel consumption. - Exhaust Improvements:
A freer-flowing exhaust manifold or performance muffler helps the engine breathe easier, slightly increasing both power and fuel efficiency. - Cooling and Reliability Mods:
Installing a larger radiator, new water pump, or stronger head gasket helps prevent overheating—especially useful for off-road or heavy-load use.
Before upgrading, consider your vehicle’s purpose and budget. For daily driving or fleet vehicles, efficiency and cooling upgrades are most practical; for enthusiasts, a mild turbo setup can transform how the 2L engine performs.
Buying Guide
If you’re planning to buy a Toyota 2L engine, here are a few key points to keep in mind:
Where to Buy
Look for trusted sources such as authorized Toyota dealers, professional rebuilders, or reliable exporters in markets like Japan, China, and Thailand. Always verify the seller’s reputation and request detailed inspection photos or engine test reports before making a purchase.
What to Look For
Check the engine’s overall condition, mileage, and service record. A clean, well-maintained unit with no visible oil leaks or corrosion will generally offer the best performance. If possible, have a mechanic perform a compression test to ensure internal components are in good shape.
New vs. Rebuilt
New engines provide factory reliability, while rebuilt units can offer excellent value if restored with OEM-grade components. At Woda Auto, all rebuilt Toyota 2L engines are thoroughly tested and assembled under strict quality standards to ensure dependable performance.
Compatibility
Confirm the engine code and make sure it matches your vehicle’s mounting points, ECU connections, and transmission type to avoid installation issues.
Warranty
When purchasing a Toyota 2L engine, it’s best to choose suppliers who provide a test report or at least a short-term warranty (30–90 days) to protect against hidden defects.
Frequently Asked Questions
What is the Toyota 2L engine’s fuel consumption?
The fuel consumption of the Toyota 2L engine typically ranges between 9 to 12 km/l, depending on the vehicle and driving conditions.
Is the Toyota 2L engine reliable?
Yes, the Toyota 2L engine is highly reliable and can last over 300,000 km with proper maintenance. Regular oil changes and proper care are essential to keeping the engine running smoothly.
How does the Toyota 2L compare to other Toyota engines?
The Toyota 2L engine is smaller and more fuel-efficient than its siblings, the 3L and 5L. While it may lack the raw power of the 3L and 5L engines, it’s an excellent choice for smaller vehicles or commercial applications that prioritize fuel efficiency.
What are the common problems with the Toyota 2L engine?
Common issues with the 2L engine include oil leaks, fuel system problems, overheating, and excessive oil consumption. Regular maintenance is crucial to avoid these issues.
Conclusion
The Toyota 2L engine has long proven itself to be a reliable, efficient, and durable choice for many Toyota vehicles. Whether fitted to a Hilux, Land Cruiser, or used as a replacement engine, it delivers consistent performance and excellent fuel economy.
Though not the most powerful engine in Toyota’s lineup, its longevity and low maintenance cost make it a top choice for workshops, fleet operators, and businesses seeking dependable performance over time.
At Woda Auto, we specialize in supplying tested and quality-assured engines to distributors, workshops, and importers worldwide. Every engine is thoroughly inspected, performance-tested, and backed by a one-year warranty to ensure lasting reliability and value.
Looking to source Toyota 2L engines in bulk or for your clients?
Contact us today for expert support, competitive quotes, and global shipping options.
