The Toyota 4Y engine has earned a reputation as one of Toyota’s toughest and most dependable workhorses. Introduced in the 1980s, this 2.2-liter inline-four wasn’t built for speed or refinement — it was built to last.
You’ll still find it powering Hilux pickups, HiAce vans, TownAce minibuses, and forklifts in markets across Asia, Africa, and Latin America. Mechanics like it for its simple design, fleet owners appreciate its reliability, and parts remain easy to find decades later.
This guide explores the Toyota 4Y engine in detail — from specifications and applications to strengths, common issues, and key considerations when sourcing or purchasing for your business.

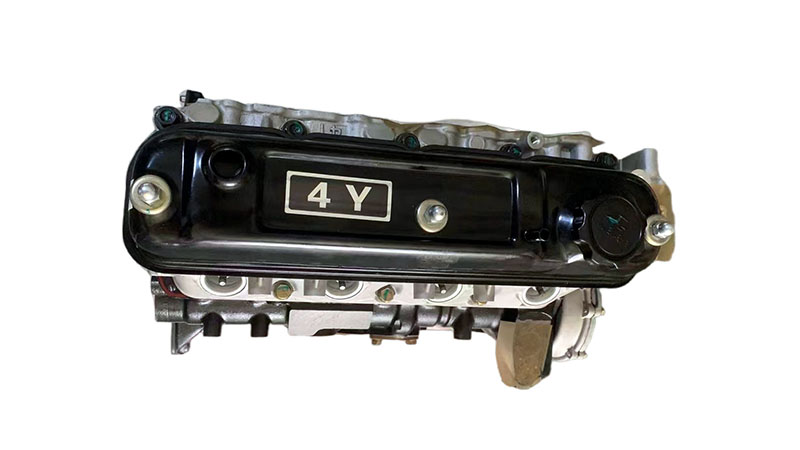

Toyota 4Y Engine Specifications
| Specification | Detail |
|---|---|
| Engine Type | Inline-4, OHV (Overhead Valve) |
| Displacement | 2,237 cc (2.2L) |
| Bore × Stroke | 91 × 86 mm |
| Compression Ratio | 8.8:1 (varies slightly by version) |
| Horsepower | 91–95 hp (68–71 kW) @ 4,400 rpm |
| Torque | 160–165 Nm @ 2,400 rpm |
| Fuel System | Carburetor or EFI (later models) |
| Cooling | Water-cooled |
| Applications | Toyota Hilux, HiAce, TownAce, forklifts |
The design is simple and robust — exactly what you’d expect from an engine built to power hardworking vehicles.
Which Toyota Cars Use the 4Y Engine?
The Toyota 4Y wasn’t designed for sporty sedans — it was built for vehicles that haul, carry, and work hard. Its reputation for durability and simplicity made it a favorite in both commercial and utility vehicles. You’ll most often find it in:
- Toyota Hilux — Used mainly in light-duty pickup versions across Asia, Africa, and Latin America. The 4Y-powered Hilux was popular with businesses and tradespeople thanks to its torque and reliability.
- Toyota HiAce — A common choice for vans and minibuses, particularly in regions where toughness and low maintenance costs were more important than refinement.
- Toyota TownAce — Fitted in compact vans and minibuses, often serving as taxis, shuttle vehicles, and delivery vans in developing markets.
- Toyota Forklifts — Beyond passenger vehicles, the 4Y became a global standard in industrial and warehouse forklifts, praised for its ability to run for long hours with minimal downtime.
Because of this broad application across both road and industrial vehicles, the Toyota 4Y engine is still widely available today, with parts and replacements easy to source worldwide.
Toyota 4Y Engine Performance, Reliability & Lifespan
The Toyota 4Y produces 91–95 horsepower and 160–165 Nm of torque — modest figures by modern standards, but more than enough for the light trucks, vans, and forklifts it powered.
What matters is how the 4Y delivers its output: torque comes in early, around 2,400 rpm, making it well-suited for hauling loads, climbing hills, or running all day in commercial service. Later EFI versions smoothed out throttle response and improved efficiency slightly, while carbureted versions remain simple and easy to maintain.
Where the 4Y really earns its reputation is in reliability and durability. Mechanics appreciate its straightforward design, fleet operators trust it to keep vehicles on the road with minimal downtime, and parts are still widely available decades after production. While it can’t match modern engines in fuel economy or emissions, it consistently proves itself as a dependable workhorse with low running costs.
With routine maintenance, 4Y engines typically last 250,000–400,000 km before needing a rebuild, and many have gone far beyond that. It’s not uncommon to see Hilux pickups and HiAce vans from the 1980s and 1990s still in daily use today — a testament to just how tough the Toyota 4Y really is.
Common Problems with the Toyota 4Y Engine
Even tough engines have weak spots, and the Toyota 4Y is no exception. Owners and mechanics most often report the following issues:
- Overheating under heavy loads – This is especially common in forklifts or vans that spend long hours idling or carrying heavy cargo. Overheating can usually be traced to a clogged radiator, worn water pump, or aging cooling hoses. Regular cooling system maintenance largely prevents this.
- Oil leaks from gaskets and seals – Like many older engines, the 4Y tends to develop leaks around the valve cover gasket, oil pan, and crankshaft seals as the rubber hardens with age. These leaks are messy but inexpensive to repair with widely available replacement gaskets.
- Carburetor tuning problems – Carbureted versions of the 4Y can suffer from poor fuel mixture, rough idling, or hard starting if the carburetor isn’t maintained. Later EFI-equipped engines eliminated many of these issues, offering more consistent performance and fuel delivery.
- Higher emissions – Designed in an earlier era, the 4Y struggles to meet modern emissions standards. Fleet operators in regions with strict regulations sometimes retrofit catalytic converters or switch to newer engines to stay compliant.
The good news is that none of these issues are fatal flaws. Parts for the 4Y are inexpensive and widely available, and most repairs can be handled quickly by any experienced mechanic. This ease of service is one of the reasons why so many 4Y engines are still on the road decades later.
Toyota Y Series Engines Compared (1Y, 2Y, 3Y, 4Y)
The Toyota 4Y is the largest and most capable member of the Y series, a family of inline-four OHV engines introduced in the late 1970s for Toyota’s light commercial vehicles. Each generation brought a bump in displacement and torque, allowing Toyota to tailor its vans, pickups, and minibuses to different workloads and markets.
- 1Y (1.6L) – The entry-level version with about 70 hp. Found mostly in the TownAce and early HiAce vans, it was designed for lighter-duty urban use.
- 2Y (1.8L) – Slightly stronger at around 79–82 hp. Used in Hilux and HiAce models, it offered better pulling power for moderate loads while still being simple to maintain.
- 3Y (2.0L) – Producing around 88–95 hp, this engine struck a good balance between performance and economy. EFI-equipped versions were smoother and more efficient, making the 3Y popular in Hilux and HiAce vehicles across many export markets.
- 4Y (2.2L) – The most powerful and durable of the lineup at 91–95 hp and up to 165 Nm of torque. It became the go-to engine for Hilux pickups, HiAce vans, and Toyota forklifts worldwide, thanks to its ruggedness and long service life.
Toyota Y Series Engine Comparison Table
| Engine | Displacement | Bore × Stroke | Power (hp) | Torque (Nm) | Common Applications | Notes |
|---|---|---|---|---|---|---|
| 1Y | 1.6L (1626 cc) | 86 × 70 mm | ~70 hp | ~115 Nm | TownAce, early HiAce | Basic entry-level engine, light duty |
| 2Y | 1.8L (1812 cc) | 86 × 78 mm | ~79–82 hp | ~145 Nm | HiAce, Hilux | More torque, simple and reliable |
| 3Y | 2.0L (1998 cc) | 86 × 86 mm | ~88–95 hp | ~155–162 Nm | Hilux, HiAce, TownAce | Balanced power, EFI versions smoother |
| 4Y | 2.2L (2237 cc) | 91 × 86 mm | ~91–95 hp | ~160–165 Nm | Hilux, HiAce, forklifts | Most powerful, most durable, widely exported |
Key takeaway: While the 1Y, 2Y, and 3Y engines served their purpose in lighter-duty vehicles, it was the 4Y that stood out globally. Its extra displacement and torque gave it the strength to handle heavy-duty use, which is why it remains the most recognized and widely exported engine in Toyota’s Y series today.
Upgrades & Alternatives for the Toyota 4Y Engine
Although the Toyota 4Y is already a durable workhorse, many owners make upgrades to boost efficiency and reliability. Popular options include:
- EFI conversions – Replacing the carburetor with electronic fuel injection for smoother running, better fuel economy, and easier cold starts.
- Cooling upgrades – Adding aluminum radiators, high-flow water pumps, or electric fans to prevent overheating in heavy-duty use.
- Exhaust and intake improvements – Freer-flowing systems that add a bit more power and efficiency.
- Engine swaps – Replacing the 4Y with newer Toyota engines like the 2RZ-FE (2.4L) or 3RZ-FE (2.7L) for more modern power, or even diesel alternatives for fuel economy.
- Rebuilds with improved parts – Using upgraded gaskets, seals, and ignition components to reduce leaks and extend engine life.
These options let owners either modernize the 4Y for better performance or swap it out entirely for newer Toyota engines, depending on budget and needs.
Buying Guide: Toyota 4Y Engines & Parts
If you’re in the market for a Toyota 4Y engine, here are the essentials to consider:
- Engine types:
- Bare engine – Just the block, no accessories.
- Short block – Block with crankshaft and pistons; reuse your own head.
- Long block – Includes the head and more components, quicker to install.
- Bare engine – Just the block, no accessories.
- Where to buy:
- Wholesale distributors for bulk orders.
- Rebuilders and exporters offering refurbished units.
- Specialized suppliers like Nanjing Woda Auto Technology Co., Ltd., trusted for consistent quality and global shipping.
- Wholesale distributors for bulk orders.
- What to check:
- Condition (new, rebuilt, or used).
- Warranty or guarantee.
- Vehicle compatibility (carburetor vs EFI, model year).
- Secure packaging for safe transport.
- Condition (new, rebuilt, or used).
For fleets and workshops, long blocks save the most time, while short blocks are a practical, lower-cost choice if you already have good components to reuse.
Conclusion
The Toyota 4Y engine isn’t fast, flashy, or modern — but it remains one of Toyota’s most dependable workhorses. Decades after its introduction, it’s still powering Hilux pickups, HiAce vans, and forklifts worldwide thanks to its toughness, simplicity, and long service life. If you need a proven engine that delivers reliability day after day, the 4Y is hard to beat.
