Ever wondered how fluid systems keep everything moving in the right direction without constant control? In many cases, this is handled by a small but essential component known as a check valve.
A check valve is a one-way device that allows fluid (liquid or gas) to flow in a single direction while preventing it from flowing back. Instead of relying on manual control, it operates automatically by responding to changes in pressure.
What Is a Check Valve?
A check valve—sometimes called a non-return valve—is commonly used in fluid systems to control flow direction. Its purpose is straightforward: to prevent reverse flow, which could otherwise damage components, reduce efficiency, or disrupt system pressure.
Unlike manually operated valves, it works on its own. When forward pressure is sufficient, the valve opens to allow flow. As soon as the pressure drops or reverses, it closes to stop backflow.
Because of this self-operating behavior, check valves are used across a wide range of applications, from simple plumbing systems to industrial setups and automotive engines.

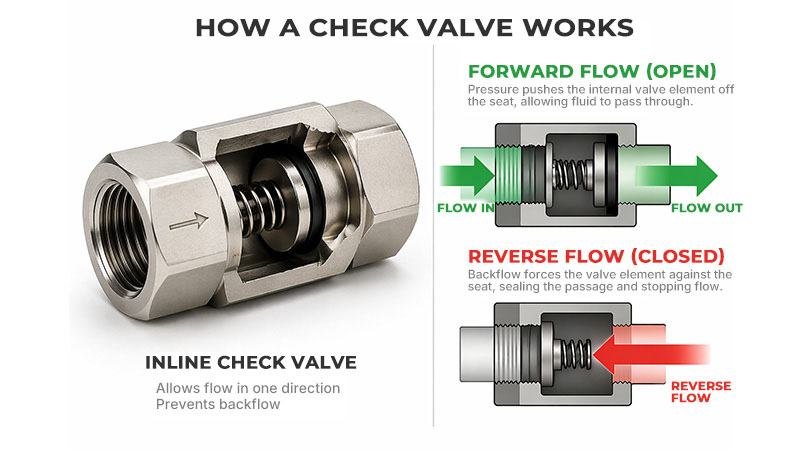

How Does a Check Valve Work?
The operation of a check valve is driven by differences in pressure between the inlet and outlet.
When fluid flows in the correct direction:
- The pressure pushes the internal component (disc, ball, or poppet) away from the seat
- This opens the valve and allows flow
When flow slows down or reverses:
- The pressure drops or reverses
- The internal component moves back to its seat
- The valve closes and blocks reverse flow
A simple way to understand it:
It behaves like a door that only opens one way—push it forward, it opens; push it backward, it shuts.
Some check valves use a spring to assist closure, especially in systems where a faster response is required, such as fuel or oil systems in engines.
Key Components of a Check Valve
Although designs vary, most check valves share a few basic parts:
- Valve Body – The outer housing that holds everything together
- Closure Element – This can be a disc, ball, or poppet that blocks or allows flow
- Seat – The surface where the closure element seals
- Spring (optional) – Helps the valve close quickly and reliably
The design of the closure element is what mainly determines the type and behavior of the valve.
Types of Check Valves
There are several common types of check valves, each designed for different flow conditions, pressure levels, and fluid types.
| Type | How It Works | Best For | Typical Use |
|---|---|---|---|
| Swing Check Valve | Hinged disc swings open/closed | Low resistance systems | Water pipelines |
| Ball Check Valve | Ball seals against seat | Dirty or viscous fluids | Pumps, wastewater |
| Spring-Loaded Check Valve | Spring pushes closure element | Fast response systems | Fuel, oil systems |
| Lift Check Valve | Disc lifts vertically | High-pressure systems | Industrial applications |

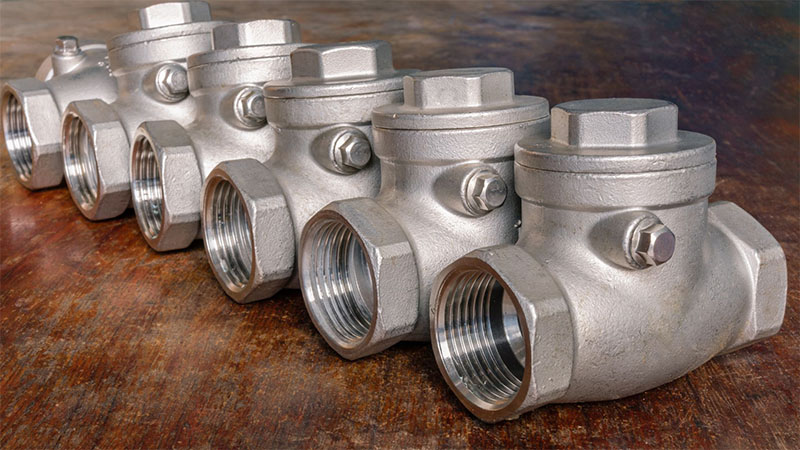

Swing Check Valve
Uses a hinged disc that swings open when fluid moves forward and swings back to seal when flow slows or reverses. It is simple and reliable, but responds more slowly compared to other designs.
Ball Check Valve
Uses a ball that moves with fluid pressure to open or seal the valve. It performs well in systems where debris or particles may be present.
Spring-Loaded (Inline) Check Valve
Uses a spring to assist closure, allowing the valve to respond quickly even before reverse flow fully develops. This makes it ideal for automotive and other high-speed systems.
Lift Check Valve
Operates with a vertical movement of the disc, providing a tight seal under higher pressure conditions. It is typically used in systems with clean fluids and is commonly found in industrial applications.
In engine systems, spring-loaded check valves are typically preferred due to their fast response and ability to maintain stable pressure.

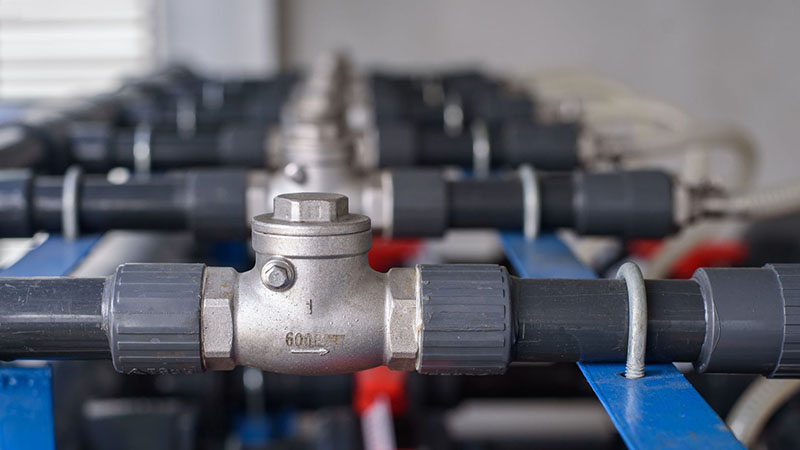

Check Valve Applications and Installation
Check valves are used in systems where fluid needs to flow in one direction without the risk of backflow. By preventing reverse flow, they help maintain pressure, protect equipment, and keep systems running efficiently.
You’ll commonly find them in:
- Water supply and plumbing systems
- Pumps and compressors
- Oil and gas pipelines
- HVAC and industrial systems
They are typically installed at key points in a system where controlling flow direction is critical, such as:
- Pipeline sections
- Pump outlets
- Compressor lines
- Hydraulic circuits
In automotive applications, check valves are often integrated into:
- Fuel delivery lines (to maintain pressure after shutdown)
- Oil circulation systems (to prevent oil drain-back)
- Vacuum systems (to stabilize pressure and airflow)
Even though they are small components, their role is critical—especially in engine systems, where pressure stability directly affects performance and reliability.

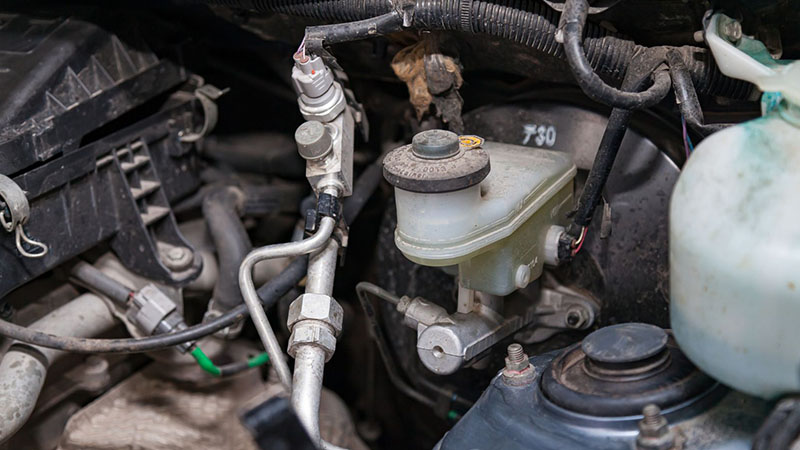

Check Valves in Automotive and Engine Systems
This is where check valves quietly do some of their most important work. While they’re often overlooked, they play a key role in maintaining pressure and stability across several engine systems.

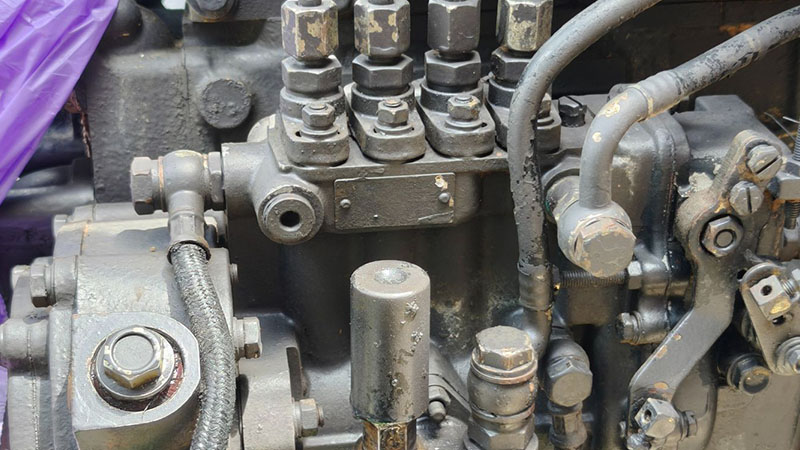

Fuel Systems
Check valves help maintain fuel pressure when the engine is off. Without them, fuel can drain back into the tank, leading to:
- Hard starting
- Longer crank times
Oil Systems
In lubrication systems, check valves prevent oil from draining away from critical components. This helps ensure:
- Faster lubrication during startup
- Reduced engine wear over time
Turbo Systems
In turbocharged engines, check valves may be used in certain vacuum or boost control circuits to help manage airflow and maintain stable system operation. Their role is typically indirect, supporting consistent pressure control rather than directly regulating boost.
Cooling Systems
In some engine designs, check valves may be used in auxiliary cooling or heater circuits to control flow direction and improve system efficiency.
Even though they are small components, their role is critical—when a check valve fails, the effects can show up quickly in overall engine performance and reliability.
Common Check Valve Failures and Symptoms
Like any mechanical component, check valves can wear out or fail over time. When they do, the effects are often subtle at first but can quickly impact overall system performance.
Stuck Open
When a check valve is stuck open, it can no longer prevent reverse flow. This typically leads to pressure loss and reduced system efficiency, especially in fuel or hydraulic systems.
Stuck Closed
If the valve is stuck closed, it blocks flow completely. This can disrupt normal operation and, in some cases, cause pressure buildup or system failure.
Leakage
A worn or damaged valve may not seal properly. Even a small internal leak can gradually reduce pressure and affect system performance over time.
Common Symptoms (Especially in Engines)
In automotive systems, check valve issues often appear as indirect but noticeable problems, such as:
- Hard starting due to fuel pressure loss
- Loss of oil pressure during startup
- Unusual noise or vibration
- Reduced overall system performance
Because check valves are small and often built into larger components, these issues are easy to overlook—until they begin to affect reliability more seriously.
What Happens If a Check Valve Fails in an Engine?
When a check valve fails in an engine system, the consequences are often gradual but significant if left unaddressed.
- In the fuel system, pressure loss can lead to repeated hard starts and inconsistent performance
- In the oil system, delayed lubrication during startup can increase internal wear
- Over time, these issues can reduce overall efficiency and shorten component lifespan
Repeated cold starts without proper pressure are especially harmful, as they accelerate wear on critical engine parts.

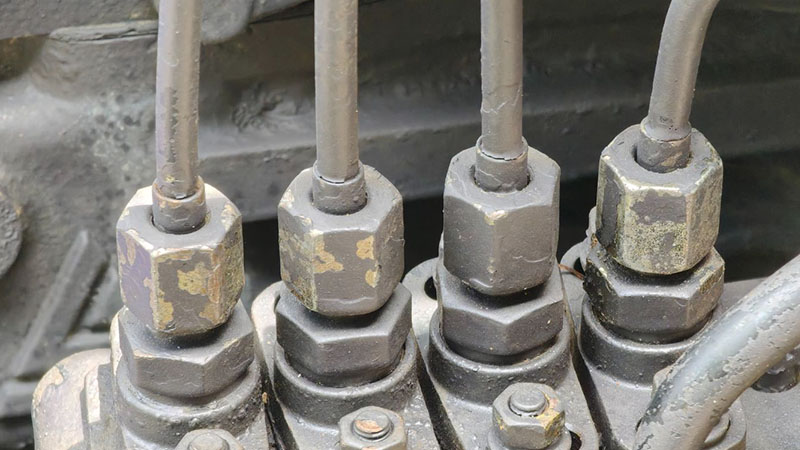

Real-World Insight: How Harsh Environments Affect Check Valves
In our experience supplying engines to different markets, operating conditions can have a direct impact on check valve performance.
For example, some customers in regions with harsh environments—particularly areas with heavy sand and dust—have reported difficulty starting their engines after a period of use. In several cases, the issue was traced back to small inline or spring-loaded check valves in the fuel system that had been affected by dust buildup.
Fine particles can accumulate around the sealing surface, preventing the valve from closing properly or responding as expected. This can lead to fuel pressure loss or delayed system response, which shows up as hard starting or longer crank times.
In these situations, replacing or cleaning the check valve often restores normal engine operation.

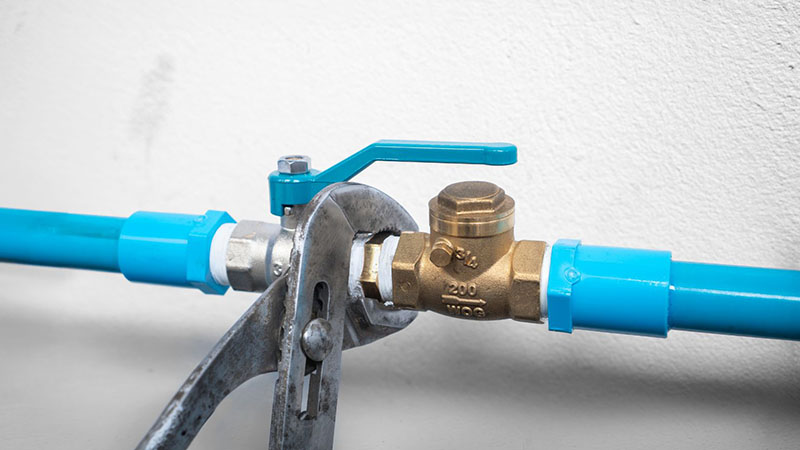

Check Valve Installation Mistakes and Best Practices
Installing a check valve may seem straightforward, but small mistakes can lead to serious system issues.
One of the most common problems is installing the valve in the wrong direction. Since check valves are designed for one-way flow, installing them backwards can:
- Completely block flow
- Cause pressure buildup in the system
- Lead to damage in connected components
Most check valves include a flow direction arrow on the valve body, which indicates the correct installation direction. Ignoring this marking can result in immediate performance issues.
To ensure proper operation, a few basic installation guidelines should always be followed:
- Always install the valve in the correct flow direction
- Ensure proper alignment (horizontal or vertical, depending on the design)
- Avoid positions where debris can accumulate and interfere with sealing
In engineering diagrams, check valves are also represented with symbols indicating one-way flow. Understanding these symbols can help with proper system design, troubleshooting, and installation.
Although check valves are simple components, correct installation is critical—small errors can quickly turn into larger system problems.
Check Valve vs PCV Valve: Key Differences Explained
This is a common point of confusion in automotive discussions. While both can act as one-way valves, they serve very different roles in an engine.
| Feature | Check Valve | PCV Valve |
|---|---|---|
| Main Function | Controls fluid direction (prevents backflow) | Regulates crankcase gas flow |
| System Role | Maintains pressure and flow stability | Controls emissions and internal pressure |
| Typical Location | Fuel lines, oil systems, vacuum/boost lines | Crankcase ventilation system |
| What It Handles | Liquids or gases (fuel, oil, air) | Blow-by gases from the engine |
| Operation | Opens/closes based on pressure difference | Adjusts flow based on engine vacuum |
| Complexity | Simple mechanical design | More complex, responsive to engine conditions |
In short, a check valve is mainly used to keep fluids moving in the right direction, while a PCV valve is designed to manage gases inside the engine and support emissions control.
Confusing the two can lead to incorrect diagnosis or replacing the wrong component.
FAQ
What is a check valve used for?
It prevents reverse flow in fluid systems, helping maintain pressure and protect components.
How does a check valve work?
It opens when fluid flows in the correct direction and closes automatically when flow stops or reverses.
Can a check valve fail?
Yes. It can stick open, stick closed, or develop leaks over time, affecting system performance.
What does a check valve do in an engine?
In engines, check valves help maintain pressure in systems such as fuel delivery and lubrication, preventing fluid from draining back when the engine is off.
Can a faulty check valve cause hard starting?
Yes. If a fuel system check valve fails, pressure can drop after shutdown, leading to longer crank times when restarting the engine.
Conclusion
Check valves may look like small, simple components, but they play a critical role in keeping systems running smoothly. By controlling flow direction and maintaining pressure, they help protect everything from industrial equipment to modern engine systems.
In automotive applications, their importance is even more apparent. Whether in fuel delivery or lubrication circuits, a properly functioning check valve helps ensure reliable starts, stable pressure, and long-term engine durability. It’s easy to overlook these components—until a failure starts affecting performance.
