When your engine starts leaking oil from the front or rear, there’s a good chance the culprit is a worn crankshaft seal. It’s a small, inexpensive part — but ignoring it can lead to messy leaks, belt damage, or even serious engine wear.
In this guide, we’ll walk through what a crankshaft seal does, how to spot a bad one, replacement steps, costs, and how to prevent future leaks.
What Is a Crankshaft Seal and How Does It Work?

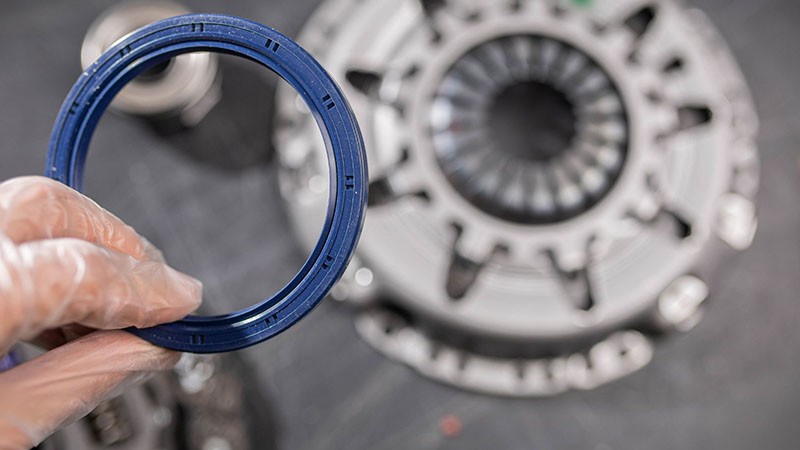

A crankshaft seal (also called an oil seal) sits at each end of the engine’s crankshaft — one at the front near the timing cover, and one at the rear near the flywheel.
Its job is simple but critical: keep engine oil inside the crankcase while allowing the crankshaft to spin freely.

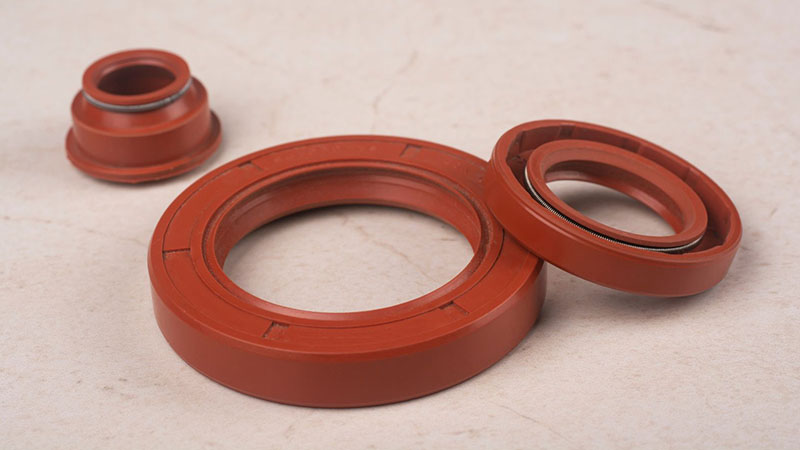

Crankshaft seals are usually made of high-temperature rubber or PTFE bonded to a metal ring. Over time, heat, friction, and age cause the lip to harden or crack. Once that happens, oil begins seeping out along the crankshaft surface.
You might hear about two types:
- Front crankshaft seal – located behind the harmonic balancer or crank pulley.
- Rear crankshaft seal (rear main seal) – sits between the engine and transmission.
Both serve the same purpose — oil retention — but the rear main seal is much harder to replace because the transmission must be removed to access it.
Symptoms of a Bad or Leaking Crankshaft Seal

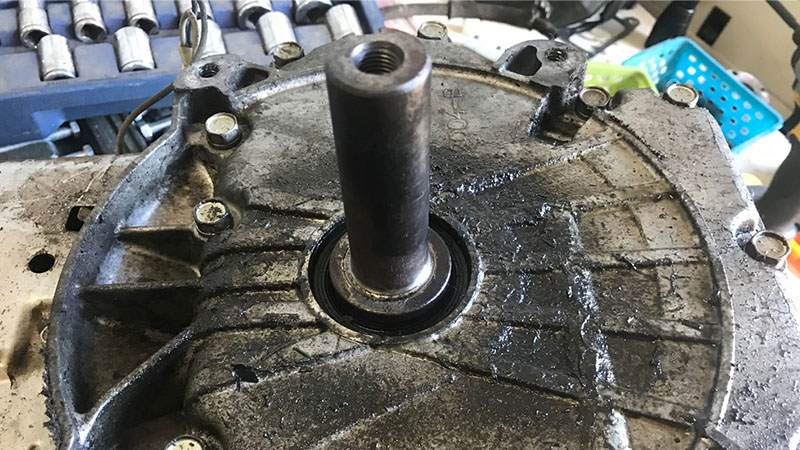

A failing crankshaft seal doesn’t cause loud noises or sudden breakdowns — it starts with small oil leaks that slowly worsen. Because the seal sits low and hidden behind pulleys, it’s easy to overlook until oil spreads across nearby parts.
Here are the key warning signs to watch for:
1. Oil spots under the vehicle
Dark puddles near the front or center of the engine often point to a leaking seal. Front seal leaks usually drip behind the crank pulley, while rear seal leaks show up between the engine and transmission.
2. Oil on belts or pulleys
Oil escaping from the front seal can spray onto the serpentine or timing belt. This not only creates a mess but also shortens belt life and can cause slipping or squealing noises.
3. Gradual oil loss
If your engine oil level keeps dropping without visible smoke or puddles, it might be seeping out from a crankshaft seal. Even slow leaks can lower oil pressure and risk bearing wear.
4. Burning oil smell or light smoke
Oil dripping onto hot exhaust parts gives off a sharp, burnt-oil smell — sometimes with faint smoke from under the hood after driving.
5. Greasy buildup around the crank pulley
Old leaks leave behind sticky grime and dust near the lower engine area. If new oil keeps appearing after cleaning, the crankshaft seal is likely the source.
If oil reaches the timing belt or clutch, fix it immediately — contamination can cause slipping, misfiring, or complete component failure.
Crankshaft Seal Replacement: Step-by-Step Overview
Replacing a crankshaft seal isn’t overly complex, but it requires precision and the right tools. Here’s how professionals or experienced DIYers usually handle it:
1. Disconnect the battery and drain the oil (if needed)
This prevents accidental starts and keeps the work area clean.
2. Remove the belts and crankshaft pulley
Use a proper pulley puller tool — forcing it off can damage the pulley or threads.
3. Access the old seal
The front seal sits behind the timing cover or harmonic balancer, while the rear main seal is located behind the flywheel and often requires removing the transmission.
4. Remove the old seal carefully
Pry it out gently using a seal puller or screwdriver, avoiding scratches on the crankshaft surface.
5. Clean and inspect the area

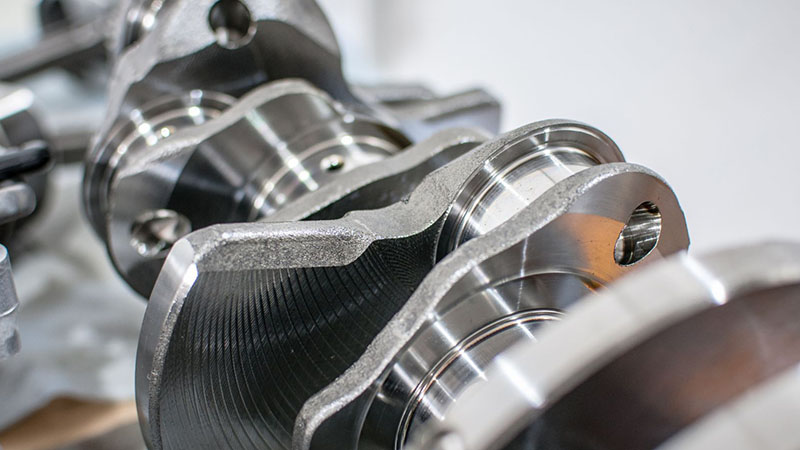

Wipe away residue and check for grooves on the crankshaft. If needed, polish lightly or use a repair sleeve.
6. Install the new seal
Lightly oil the inner lip, then press the seal in evenly using a seal driver or large socket until it sits flush.
7. Reassemble and test
Reinstall all parts, torque bolts properly, and start the engine to check for leaks.
Difficulty level
- Front crankshaft seal: Moderate, about 2–3 hours.
- Rear main seal: Difficult, about 4–8 hours due to transmission removal.
If you’re not equipped with the right tools or experience, it’s best to let a professional handle the rear main seal replacement.
How Much Does It Cost to Replace a Crankshaft Seal?
The total cost to replace a crankshaft seal depends on which seal is leaking (front or rear), your vehicle type, and local labor rates. The seal itself is inexpensive — the main cost comes from the amount of disassembly required to reach it.
| Type | Average Cost (USD) | Labor Time | Notes |
|---|---|---|---|
| Front crankshaft seal | $150 – $400 | 2 – 3 hours | Requires removing the belts, crank pulley, and timing cover. Labor rates typically range from $75 – $150 per hour. |
| Rear crankshaft (main) seal | $500 – $1,200 | 4 – 8 hours | Involves removing the transmission. AWD and luxury models may exceed $1,200 due to additional drivetrain components. |
Parts cost
A new crankshaft seal typically costs $10 – $50, depending on brand and material. OEM seals are usually more expensive but provide a better fit and longer service life. High-temperature PTFE seals also last longer than standard rubber types.
Labor cost
Labor is the biggest factor. Cars with transverse engines, AWD layouts, or tight engine bays take longer to disassemble, raising the total bill. Rear main seal replacement is one of the more labor-intensive engine repairs since it requires transmission removal.
Money-saving tip
If a mechanic is already performing a timing belt, clutch, or transmission service, ask them to replace the crankshaft seal at the same time. It can save several hours of labor and prevent future oil leaks without additional teardown.
Average total range
- Compact or economy cars: $200 – $600
- SUVs and trucks: $400 – $1,200+
- High-end or AWD models: $800 – $1,500
Replacing the seal proactively during other major repairs not only saves labor but also helps maintain long-term oil tightness.
How to Prevent Future Crankshaft Seal Leaks
After replacing a crankshaft seal, a few simple habits can help keep it leak-free for years:

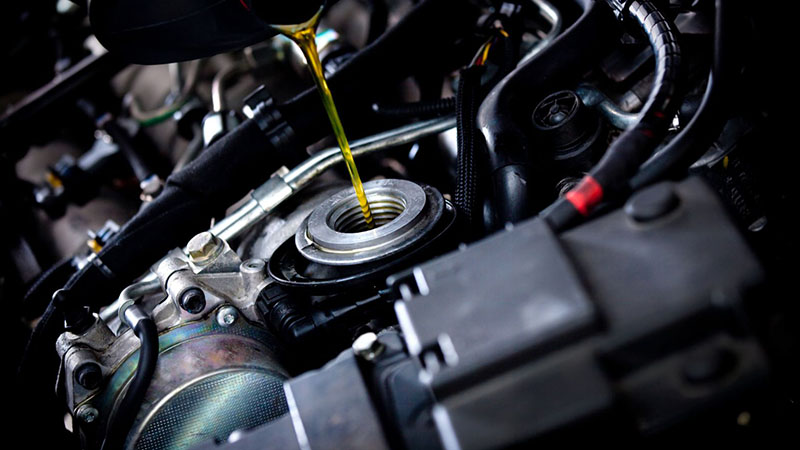

Use the correct engine oil and change it regularly
Old or low-quality oil breaks down and hardens the seal over time. Always follow the manufacturer’s recommended oil grade and change intervals.
Keep the PCV system clean
A clogged PCV valve causes crankcase pressure to rise, forcing oil past seals. Check and clean or replace the valve every 30,000–50,000 miles.
Avoid overfilling engine oil
Too much oil increases internal pressure and can push oil through weak seals. Keep the oil level between the “MIN” and “MAX” marks.
Inspect crankshaft and pulley surfaces
Before installing a new seal, check for grooves, rust, or pitting. Polish lightly or use a repair sleeve if needed to ensure a smooth fit.
Replace seals during related repairs
When servicing the timing belt, clutch, or oil pump, replace the crankshaft seal at the same time to save labor and prevent future leaks.
FAQ
How serious is a crankshaft seal leak?
A minor leak may just leave oil stains, but if ignored, it can contaminate belts, reduce oil level, and even damage the engine. It’s best to address it early.
Is a crankshaft seal hard to replace?
The front seal is moderately difficult and manageable with tools and patience. The rear seal, however, is labor-intensive because it requires removing the transmission.
Do I need to drain oil before replacing it?
For the front seal, usually not. For the rear, it’s recommended since the transmission removal often involves partial oil draining.
How long does a new crankshaft seal last?
Typically 80,000 – 120,000 miles (130,000 – 190,000 km) under normal conditions. Good oil quality and maintenance extend its lifespan.
Conclusion
The crankshaft seal may be a small component, but it plays a big role in keeping your engine clean, efficient, and reliable. If you spot oil leaking from the front or rear, don’t ignore it — fixing the issue early can prevent costly damage down the road.
About Us

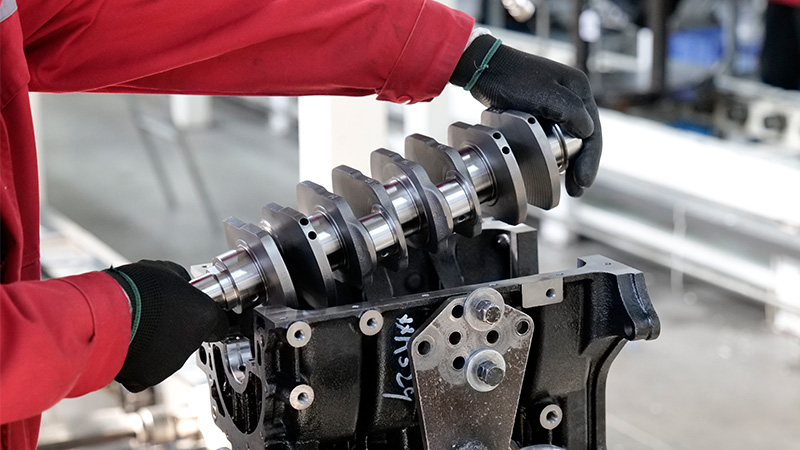

At Woda Auto, we specialize in supplying OEM-quality engine parts — from crankshaft seals and cylinder heads to complete long block engines. With over 25 years of manufacturing and export experience, we’re committed to providing durable, precisely engineered components that meet the needs of workshops, distributors, and fleet operators worldwide.
