An engine coolant leak is one of those problems that should never be ignored. Sometimes it starts small — a low coolant warning or a faint sweet smell — but if the leak gets worse, it can quickly lead to overheating, severe engine damage, or even complete engine failure.
In this guide, we’ll break down what an engine coolant leak really means, how to identify the source, what repairs typically cost, and — most importantly — how to judge when a repair is still reasonable and when it may be time to consider other options.
What Is an Engine Coolant Leak?
An engine coolant leak occurs when coolant escapes from the cooling system instead of circulating properly through the engine, radiator, and hoses. Coolant is responsible for keeping engine temperatures stable. When it leaks, heat builds up fast.
Coolant leaks generally fall into two categories:
- External leaks – Coolant escapes outside the engine and may leave visible puddles.
- Internal leaks – Coolant leaks into the engine itself, often mixing with oil or entering the combustion chamber.
External leaks are usually easier and cheaper to fix. Internal leaks are more serious and often signal deeper engine damage.
Common Symptoms of an Engine Coolant Leak
Not all coolant leaks look the same. Some are obvious, while others stay hidden until damage is already done.
Typical symptoms include:

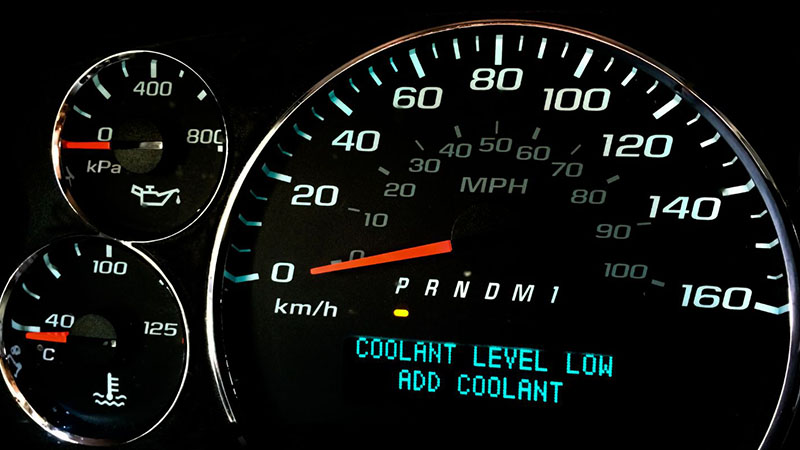

- Low coolant warning light
- Engine temperature rising higher than normal
- Sweet or syrup-like smell from the engine bay
- Coolant level dropping repeatedly
- Visible coolant puddle under the vehicle (green, pink, orange, or blue)
- White smoke from the exhaust
- Weak or inconsistent cabin heater performance
One important point: not every coolant leak leaves a puddle. Many leaks only appear while the engine is hot or under pressure.
Most Common Causes of Engine Coolant Leaks
External Coolant Leak Causes (More Common)
These are usually mechanical wear issues:

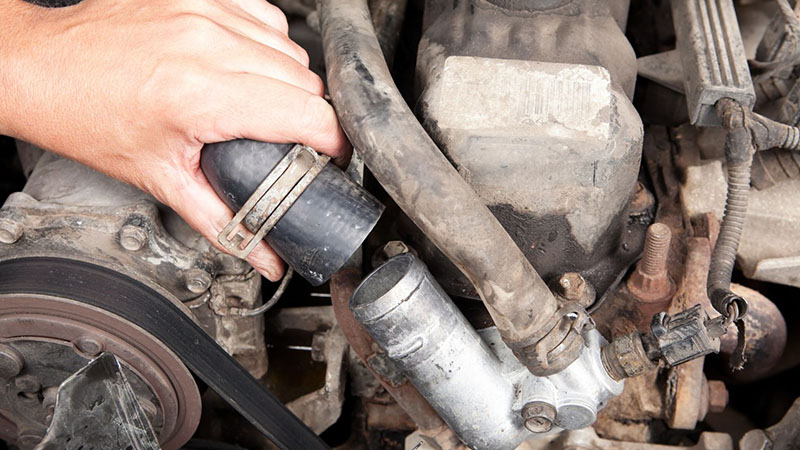

- Radiator hoses cracking or hardening over time
- Loose or corroded hose clamps
- Cracked radiator due to age or impact
- Water pump seal failure
- Faulty radiator cap unable to hold pressure
- Leaking heater core (often noticed as foggy windows or wet carpets)
These issues are usually repairable and rarely justify engine replacement.
Internal Coolant Leak Causes (High Risk)
Internal leaks are far more serious:
- Blown head gasket
- Cracked cylinder head
- Cracked engine block
- Intake manifold gasket failure (on some engines)
When coolant enters the oil system or combustion chamber, lubrication breaks down and metal parts overheat rapidly. At this stage, continuing to drive the vehicle can destroy the engine.
Coolant Leak but No Puddle? Here’s Why
This is one of the most common — and confusing — coolant issues. Many people expect to see coolant on the ground, but a leak doesn’t always leave a visible puddle.
Common reasons include:
- Coolant evaporating on hot engine parts
Small leaks may drip onto hot components and evaporate instantly, sometimes leaving only a faint sweet smell. - Leaks that occur only under pressure
Some leaks appear only when the engine is warm and the cooling system is pressurized, making them hard to detect when the vehicle is parked. - Internal leaks inside the engine
Coolant can enter the combustion chamber through a head gasket or cracked component and burn off during operation, often without external signs. - Leaks hidden by engine covers or splash shields
Coolant may collect or evaporate under covers instead of dripping to the ground.
If coolant keeps disappearing but no external leak is visible, an internal coolant leak should be checked as soon as possible, as it can quickly lead to overheating and serious engine damage.
How to Find an Engine Coolant Leak
Visual Inspection
Start simple:
- Check hoses, radiator, and expansion tank
- Look for dried coolant residue
- Inspect around the water pump area
Cooling System Pressure Test
A pressure test simulates operating conditions and reveals leaks that don’t appear when the engine is cold. This is one of the most reliable diagnostic methods used by workshops.
Signs of Internal Coolant Leaks
- Milky or foamy engine oil
- White smoke from the exhaust after warm-up
- Bubbling in the coolant reservoir
- Persistent overheating with no external leak
Once internal leakage is confirmed, repair decisions become more complex.
Can You Drive with an Engine Coolant Leak?
The short answer is it depends — but in most cases, you shouldn’t.
A very slow external coolant leak may allow limited driving in an emergency, especially if coolant levels are closely monitored and the engine temperature remains normal. However, this should only be considered a temporary measure, not a solution.
A fast coolant leak, visible steam, or any sign of overheating means you should stop driving immediately. Continuing to run the engine without proper cooling can cause rapid and irreversible damage.
Driving with low or no coolant can lead to:
- Warped or cracked cylinder heads
- Piston and cylinder wall damage
- Head gasket failure
- Complete engine seizure
For workshops, fleet operators, and resale inventory managers, ignoring a coolant leak often turns a relatively simple repair into major engine damage, significantly increasing downtime and overall cost. Addressing the issue early is almost always the more practical and economical choice.
How Much Does It Cost to Fix an Engine Coolant Leak?
The cost of fixing an engine coolant leak depends mainly on where the leak is coming from and whether internal engine damage is involved. External leaks are usually affordable and predictable, while internal leaks can become costly very quickly.
| Problem | Typical Cost Level | Common Industry Range* |
|---|---|---|
| Hose or clamp replacement | Low | $50–$200 |
| Radiator replacement | Medium | $300–$900 |
| Water pump replacement | Medium | $400–$1,000 |
| Head gasket repair | Very high | $1,500–$4,000+ |
| Cracked engine block or cylinder head | Often not economical | Repair often exceeds engine value |
*Ranges vary by vehicle model, labor rates, and market.
Simple repairs, such as hoses or clamps, are usually quick and inexpensive. Radiator and water pump replacements involve more labor but are still considered standard repairs for most workshops.
However, once a coolant leak leads to head gasket failure or internal engine damage, repair costs rise sharply due to labor intensity and machining requirements. At that point, engine replacement often becomes the more practical long-term option, especially for fleets, workshops, and resale vehicles where reliability and downtime matter.
Coolant Leaks After Engine Repair or Replacement
Coolant leaks that appear after an engine repair or replacement are more common than many expect, and they don’t always indicate a faulty engine. In most cases, the issue is related to installation details or surrounding components rather than the engine itself.
Common causes include:
- Old hoses reused during installation
Aging hoses may seal temporarily but often fail soon after being reinstalled, especially once the system reaches full operating pressure. - Improper torque on fittings or clamps
Over-tightening can damage seals, while under-tightening allows coolant to escape once the engine warms up. - Air trapped in the cooling system
Incomplete bleeding can create pressure fluctuations, leading to leaks or coolant being pushed out of the system. - Low-quality or mismatched components
Incorrect hose sizes, poor-quality gaskets, or incompatible parts can prevent proper sealing, even if the engine itself is in good condition.
For engine distributors, workshops, and professional buyers, this highlights the importance of checking the entire cooling system as a complete assembly, not just focusing on the engine installation. Proper component matching, pressure testing, and system bleeding are essential to avoid repeat failures and unnecessary warranty disputes.
How to Prevent Future Engine Coolant Leaks
Taking preventive measures can save both engines and profit margins by avoiding costly repairs and downtime. Here are key steps to prevent future coolant leaks:
- Use the correct coolant type
Always use the coolant recommended by the manufacturer to avoid damaging seals and hoses, which can lead to leaks. - Replace hoses proactively
Inspect and replace hoses every 3–5 years to prevent leaks caused by wear, cracking, or softening due to heat and pressure. - Perform pressure tests during routine service
Pressure tests help detect leaks in the cooling system early, preventing larger issues down the road. - Never ignore temperature warnings
Overheating can cause serious engine damage, including coolant leaks. Address any temperature rise immediately. - Bleed air properly after coolant service

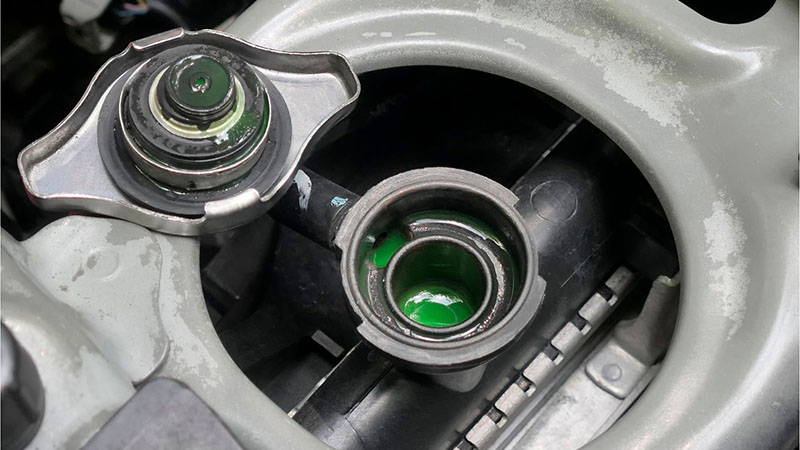

Air pockets can cause pressure issues, leading to leaks. Ensure proper bleeding of the system after coolant changes. - Check radiator cap and seals regularly
Worn radiator caps and seals can prevent the system from maintaining proper pressure, causing leaks. Replace them as needed.
By performing these routine checks, you can avoid major engine issues and ensure a longer-lasting, leak-free cooling system.
FAQ
How serious is an engine coolant leak?
It can range from minor to catastrophic. Internal leaks are especially dangerous and often lead to engine failure if ignored.
What does leaking coolant smell like?
Coolant has a sweet, syrup-like smell, often noticeable near the engine bay or inside the cabin if the heater core leaks.
Can a coolant leak cause engine failure?
Yes. Loss of coolant leads to overheating, oil breakdown, and severe internal damage.
Why is my coolant disappearing but no leak is visible?
This often indicates evaporation on hot parts or an internal leak into the engine.
Is a coolant leak expensive to fix?
External leaks are usually affordable. Internal leaks can be costly enough to justify engine replacement.
Conclusion
An engine coolant leak is more than just a maintenance issue — it’s a critical warning sign. Identifying whether the leak is external and repairable or internal and potentially catastrophic is key to minimizing engine damage and maintaining performance.
For professional buyers, workshops, and engine distributors, knowing when to stop repairing and start replacing can save both time and profit. Early diagnosis, realistic cost evaluation, and the use of high-quality components are essential to ensuring the reliability and longevity of your engines.
