Developing a new engine cylinder block is much more than producing a casting.
For engine manufacturers, importers, distributors, and parts buyers, developing a new cylinder block, also commonly referred to as an engine block, involves design, material selection, tooling, casting, machining, inspection, assembly testing, and repeated engineering correction before mass production can begin. Every step affects the final quality, delivery time, and purchasing cost.
Based on our frontline factory experience in China, the biggest advantage of developing a new cylinder block here is not only lower manufacturing cost. It is the ability to complete the full process within a highly concentrated local supply chain.
Design engineers, mold makers, foundries, machining workshops, inspection teams, assembly lines, and testing labs can work closely together. When a problem appears, the team can check it, adjust it, and verify the result much faster than in a project where different stages are spread across several countries.
In this article, we use a compacted graphite iron engine cylinder block as an example to explain how a new cylinder block is developed in China, how the process usually works, and why a localized development model can bring clear advantages in time, cost, quality control, and supply stability.
What Is a New Cylinder Block Development Project?
A new cylinder block development project usually starts when there is a market demand for a specific engine model, a new replacement part, or a customized engine component.
The project may involve:
- Confirming the cylinder block structure
- Selecting the material
- Designing or optimizing the casting process
- Developing the mold
- Producing sample castings
- Completing precision machining
- Checking dimensions and material performance
- Matching related engine components
- Running bench tests and durability checks
- Correcting problems before batch production
For buyers, this process matters because the cylinder block is one of the core structural parts of an engine. A small mistake in casting, machining, oil passages, coolant passages, or surface accuracy may create serious problems later.
That is why cylinder block development should be viewed as a complete engineering process, not just a production order.

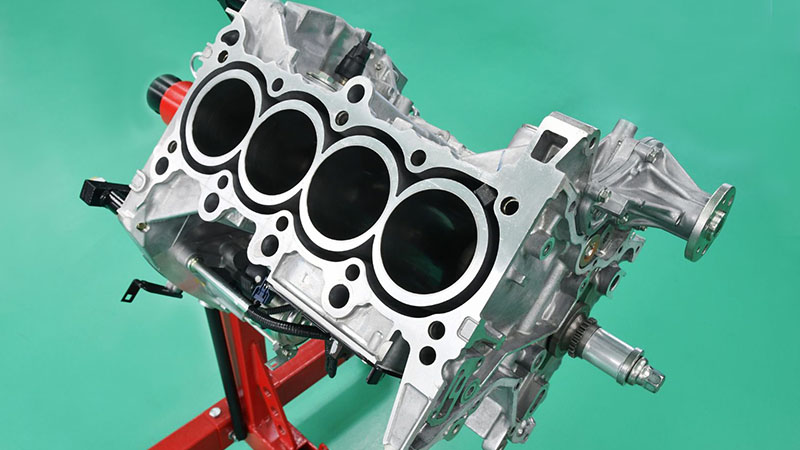

Example: Compacted Graphite Iron Cylinder Block
For this article, we use a compacted graphite iron cylinder block as the reference example.
Compacted graphite iron is often used in engine applications that require strength, heat resistance, and durability. Compared with ordinary production parts, this type of cylinder block requires stricter control in material preparation, casting process, machining accuracy, and testing.
For a new compacted graphite iron cylinder block, the factory needs to control several key points:
- Raw material quality
- Graphite formation and material consistency
- Casting temperature and pouring process
- Mold accuracy
- Machining allowance
- Cylinder bore precision
- Deck surface flatness
- Oil and coolant passage accuracy
- Non-destructive inspection
- Bench testing and durability validation
This is why the development model is important. If all teams are located in the same industrial chain, communication and correction can be much faster. If the project is divided across many countries, each small adjustment may need drawing updates, translation, logistics, meetings, approval, and retesting.
China’s Localized Cylinder Block Development Process
In China, a new cylinder block project can often be completed through a localized closed-loop development process. This means that the main stages, suppliers, technical teams, production workshops, and testing resources are all located within China.
Below is a typical process based on our frontline experience.
Step 1: Raw Material Preparation
The first step is preparing the required raw materials.
For a compacted graphite iron cylinder block, this may include high-purity pig iron, treatment agents, alloy materials, and other auxiliary materials. In China, these materials can often be sourced from domestic supply regions and delivered quickly to the production base.
This local sourcing model helps reduce waiting time and inventory pressure. The factory does not need to wait for repeated cross-border shipments before the development work can begin.
From a production point of view, stable raw material supply is the foundation of stable casting quality.
Step 2: Product Design
After confirming the development target, the engineering team begins the cylinder block design.
This stage includes structure design, strength review, process feasibility, and matching with related engine components. The design must consider not only engine performance, but also whether the part can be cast, machined, inspected, assembled, and produced consistently in batches.
In a localized development model, engineers can communicate directly with the foundry, mold factory, machining workshop, and testing team. This makes the design process more practical.
A good design is not only good on paper. It must also be suitable for actual production.
Step 3: CAE Simulation and Process Validation
Before mold development and trial production, CAE simulation can be used to check possible problems.
For a cylinder block, simulation may focus on casting stress, thermal load, high-pressure working conditions, and durability performance. The goal is to identify risks before physical samples are produced.
If the simulation result shows a weak area, cooling issue, stress concentration, or casting risk, the design can be adjusted quickly.
In China’s local development environment, simulation feedback can be shared with the design and manufacturing teams without long cross-border communication delays.
Step 4: Mold Development and Trial Mold
Mold development is one of the most important stages in a new cylinder block project.
The mold affects the casting shape, dimensional consistency, machining allowance, and final product stability. A small tooling issue may lead to casting defects or repeated machining problems.
In a localized Chinese supply chain, mold design, tooling, trial mold, adjustment, heat treatment, and repair can be handled by domestic mold manufacturers. If a problem appears during trial production, the mold team and casting team can communicate directly and make corrections quickly.
For this type of localized development project, mold development and trial mold adjustment may take around 30 to 35 days, depending on product complexity and correction requirements.
Step 5: Casting Production
After the mold is prepared, the foundry begins casting production.
For a compacted graphite iron cylinder block, this stage includes melting, pouring, treatment control, blank forming, sand cleaning, grinding, and basic casting inspection.
Casting is not just about forming the part. The foundry needs to control material behavior, casting temperature, cooling conditions, defect risk, and blank consistency.
In a localized Chinese process, casting, machining, and inspection can be closely connected within the same industrial chain. This reduces logistics waiting time and allows problems to be corrected earlier.
Step 6: Precision Machining
After the casting blank is completed, the engine block enters the precision machining stage.
Typical machining steps may include:
- Boring
- Milling
- Drilling
- Thread machining
- Surface finishing
- Dimensional correction
- Accuracy calibration
Machining quality directly affects engine assembly and operation. Cylinder bore accuracy, surface finish, bolt hole accuracy, and deck surface flatness are especially important.
If the casting blank and machining workshop are located close to each other, communication is easier. The machining team can quickly give feedback to the foundry if the casting allowance, shape, or surface condition needs adjustment.
This is one of the key benefits of a local industrial cluster.

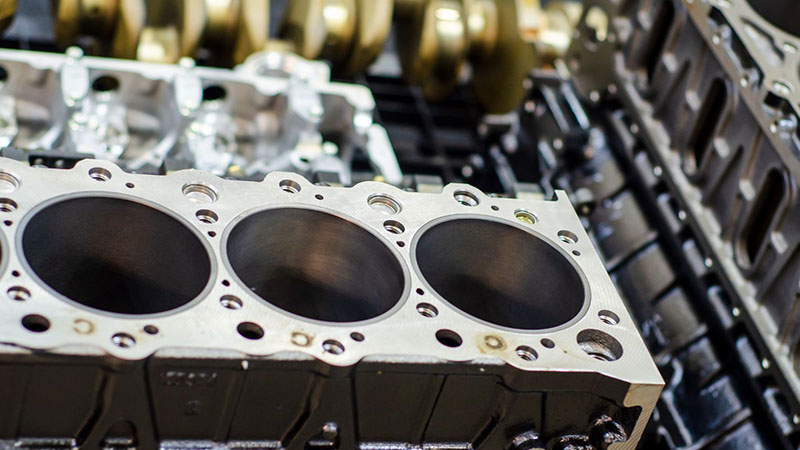

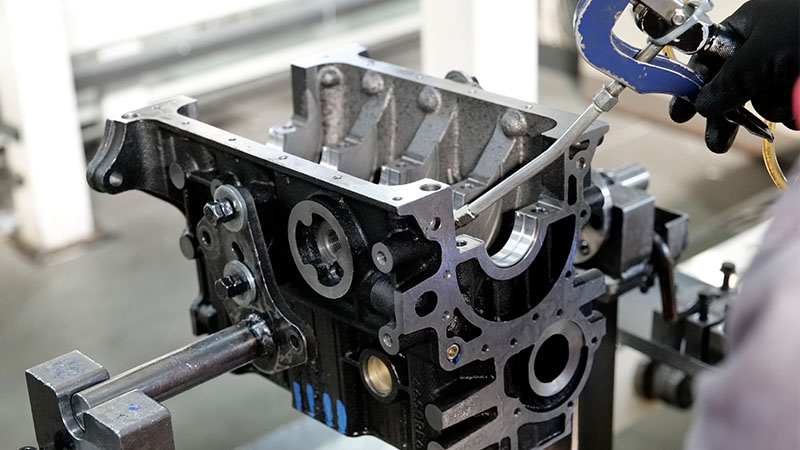

Step 7: Inspection and Quality Control
Before the part moves forward, inspection is required.
Common quality control steps may include:
- Dimensional inspection
- CMM measurement
- Non-destructive testing
- Material testing
- Graphite structure or material performance checks
- Surface inspection
- Oil passage and coolant passage inspection
For a new cylinder block, inspection is not just a final check. It is part of the development process.
If a problem is found early, the team can trace whether it comes from design, mold, casting, machining, or material control. In a localized process, this traceability is faster because the teams are working within the same supply chain system.

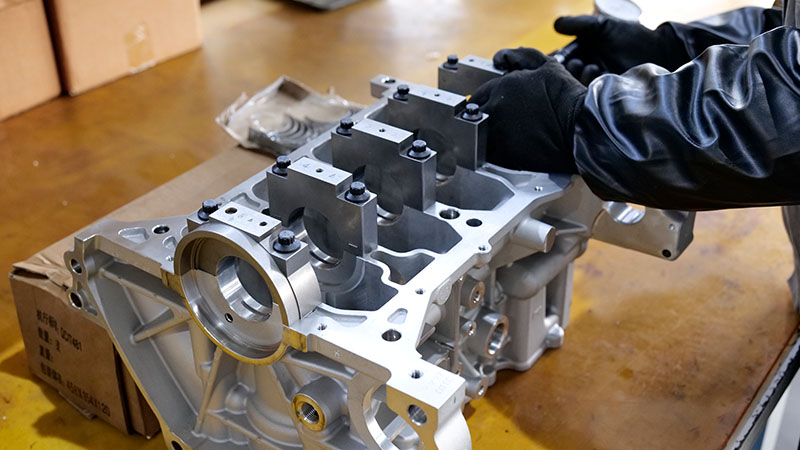

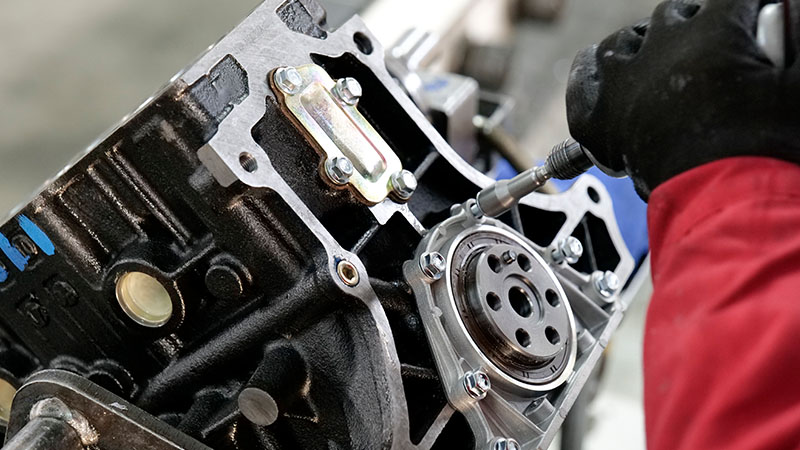

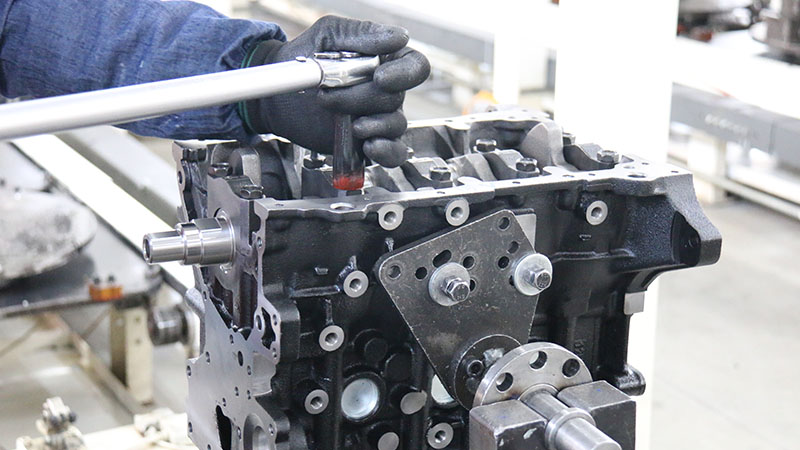

Step 8: Related Parts Assembly
After the cylinder block passes inspection, it may be matched with related engine components for assembly verification.
This step checks whether the block can work properly with other components, such as sealing parts, fasteners, cylinder head, crankshaft-related components, oil passages, and cooling system interfaces.
The purpose is to confirm that the cylinder block is not only dimensionally correct, but also suitable for engine assembly.
For B2B buyers, this step is important because a cylinder block that looks correct as a single part may still create problems during actual engine assembly if matching accuracy is poor.
Step 9: Bench Testing and Durability Validation
Bench testing and durability validation are used to confirm whether the cylinder block can meet expected working conditions before mass production.
At this stage, the process may include cold start checks, high-load testing, operating condition simulation, and, where required, long-duration durability validation such as a 2,000-hour test program.
In the localized China development model, assembly verification, bench testing, issue correction, and production preparation may take around 20 to 25 days, depending on the project complexity and testing requirements.
If any issue appears during testing, the engineering team can trace it back to the design, tooling, casting, or machining stage and make corrections before the cylinder block enters stable batch production.
Step 10: Correction, Iteration, and Mass Production
The last stage is correction and mass production preparation.
No new engine block project should move directly from first sample to bulk production without review. Small issues found during casting, machining, assembly, or testing should be corrected before stable batch production begins.
In China’s localized development system, the biggest advantage is fast iteration.
When the design team, mold factory, foundry, machining workshop, inspection team, and testing lab are all connected locally, problems can be discussed and corrected quickly. This reduces the chance of repeated delays before mass production.
Development Timeline: China Localized Process vs Multi-Country Distributed Process
Based on our frontline factory process review, a localized cylinder block development project in China may take around 90 to 110 days from design to production preparation.
The general timeline is:
| Development Stage | Estimated Time in Localized China Process |
|---|---|
| Design and simulation | 15–20 days |
| Mold development and trial mold | 30–35 days |
| Casting, machining, and inspection | 25–30 days |
| Assembly, bench testing, and correction | 20–25 days |
| Total estimated development cycle | 90–110 days |
By comparison, a multi-country distributed development model may take around 280 to 360 days in the project structure discussed here.
The main reasons include:
- Drawing transfer between countries
- Multi-language technical communication
- Different engineering standards
- International shipping and customs clearance
- Cross-time-zone correction meetings
- Longer approval and certification cycles
- Repeated transportation of molds, blanks, parts, and assemblies
In this distributed model, international drawing transfer and standard alignment may add around 15 to 20 days. Multiple international logistics movements may add around 40 to 50 days. Additional compliance or certification work may add more than 30 days, depending on the project.
The conclusion is clear: when a project requires repeated communication, tooling adjustment, sample correction, and testing, distance becomes a real cost.
Cost Factors Behind New Cylinder Block Development
The cost of developing a new cylinder block is not only the price of the casting.
It includes raw materials, mold development, machining, inspection, testing, engineering labor, communication, logistics, rework, and inventory risk.
Below are the key cost areas buyers should understand.
1. Material Cost
In a localized Chinese development process, raw materials can often be sourced domestically and delivered nearby. This helps reduce cross-border freight, customs duties, and long inventory cycles.
For this type of project, domestic raw material sourcing may reduce the unit cost of certain raw materials by around 15% to 20% compared with imported material routes.
In some overseas compacted graphite iron development routes, licensed process technology and related fees may also increase the overall material cost. Depending on the project, these technology or licensing-related costs can become a noticeable part of the total development expense.
Material utilization is another important factor. In the localized casting process described here, casting yield may reach around 78% to 82%, with lower scrap loss due to better process matching.
For buyers, this means material cost should not be judged only by the purchase price per ton. Waste rate, process stability, inventory cost, and logistics cost must also be considered.
2. Mold and Tooling Cost
Mold cost is not only the first tooling price. The real cost includes trial mold, modification, adjustment, and repeated verification.
If the mold factory is close to the foundry and engineering team, correction can be done faster. If the mold has to move across countries, each change may involve packaging, shipping, customs clearance, waiting time, technical meetings, and retesting.
That is why a lower initial tooling quote does not always mean a lower total development cost.
For a new cylinder block, tooling speed and correction efficiency are just as important as mold price.
3. Machining and Inspection Cost
Precision machining is one of the most important cost centers in cylinder block development.
Cylinder blocks require strict control of bore accuracy, flatness, surface finish, threaded holes, and internal passages. If the casting blank is not stable, machining time increases. If machining accuracy is not controlled, assembly and testing problems may appear later.
In a localized supply chain, the machining team can directly give feedback to the foundry and mold team. This helps reduce repeated mistakes and improves batch consistency.
Inspection cost is also part of quality cost. CMM measurement, non-destructive testing, material inspection, and dimensional checks all require equipment and trained technicians. However, these costs are necessary because they help prevent much larger losses during assembly or bulk shipment.
4. Labor and Project Coordination Cost
Labor cost is another major difference between development models.
In a localized China development model, the team can operate with a more compact structure. The core team may include design engineers, mold technicians, casting workers, machining technicians, inspection staff, and testing personnel.
Because the teams share the same language, technical system, and local supply chain, fewer non-production coordination roles are needed.
In a multi-country model, the project may require additional translators, international project managers, customs and compliance staff, logistics coordinators, and legal support. These roles may not directly produce the part, but they increase the total project cost.
Based on this project structure, the core labor cost in the localized China model is estimated to be around 40% to 50% lower than in some overseas multi-country development structures, depending on the roles, regions, and project setup.
5. Logistics and Waiting Cost
Logistics cost is often underestimated.
In a multi-country development model, drawings, molds, casting blanks, machined parts, auxiliary components, and test samples may move across several countries. Each movement can bring freight cost, customs clearance, inspection delay, packaging risk, and schedule uncertainty.
For a cylinder block project, waiting time can be more expensive than shipping cost itself.
If the mold is delayed, casting cannot start. If the casting blank is delayed, machining cannot start. If machined samples are delayed, testing cannot start. One delay can stop the entire chain.
In a localized Chinese development process, most stages can be connected domestically, which reduces these waiting points.
6. Rework Cost
Rework is one of the most expensive hidden costs in a new cylinder block project.
In the localized China model described here, rework rates can be kept below 3% when quality standards, production feedback, and correction work are controlled within the same system.
By comparison, a multi-country distributed model may face a possible rework rate of 12% to 15% when standards, process parameters, and correction responsibilities are not well aligned.
The exact rework rate will always depend on the supplier, project difficulty, and quality system. However, the principle is practical: the longer the feedback loop, the higher the cost of correction.
China Localized Development vs Distributed Global Development
The table below summarizes the main differences from a buyer’s perspective.
| Dimension | Localized Development in China | Multi-Country Distributed Development |
|---|---|---|
| Development timeline | Shorter project cycle due to local coordination | Longer cycle due to cross-border transfer and approvals |
| Raw material sourcing | Domestic sourcing and nearby delivery | Multi-country sourcing with higher logistics complexity |
| Mold adjustment | Faster local correction | Slower correction if tooling moves across regions |
| Casting and machining | Close connection between foundry and machining workshop | Separate production stages may increase feedback delay |
| Communication | Same language and technical system | Multiple languages, time zones, and standards |
| Testing feedback | Faster correction after bench testing | Longer technical feedback loop |
| Rework control | Easier to trace and correct issues early | Higher risk if process standards are not aligned |
| Supply stability | More controllable local supply chain | More exposure to logistics, policy, and capacity risks |
| Buyer impact | Faster samples, easier correction, more stable bulk supply | Longer lead time and higher project uncertainty |
What This Means for Importers and Distributors
For importers, wholesalers, and engine parts distributors, the development process affects more than the supplier’s factory cost.
It affects:
- How soon samples can be completed
- Whether the supplier can correct problems quickly
- How stable the product will be in bulk orders
- Whether future batches can remain consistent
- How easily the supplier can support model updates
- Whether the project can be controlled if demand increases
A supplier with integrated development, casting, machining, inspection, testing, and production resources can usually respond faster during a new product project.
This is especially important for buyers who need stable supply instead of one-time purchasing.
For example, if a distributor wants to develop a new cylinder block model for long-term market supply, the first sample is only the beginning. The real value comes from stable quality, repeatable production, and fast technical support when problems appear.
Quality Control Points Buyers Should Check
If you are sourcing engine blocks from China, you should not only ask for price.
You should also ask how the supplier controls the development and production process.
Here are some practical questions to check:
- What material is used for the cylinder block?
- Can the supplier explain the casting process?
- How is the mold developed and corrected?
- What machining accuracy can be controlled?
- Is CMM inspection available?
- Are non-destructive tests available?
- Are oil passages and coolant passages checked?
- How is deck surface flatness inspected?
- Are sample testing and bench testing available?
- Can the supplier support batch traceability?
- How are problems corrected before mass production?
- Can the supplier support long-term bulk supply?
These questions help buyers identify whether a supplier is only trading parts or has real manufacturing and technical support capability.
Why a Localized Supply Chain Can Be a Real Advantage
Many people think China’s manufacturing advantage is only about price. In cylinder block development, the deeper advantage is the supply chain structure.
When the full process is located within the same industrial ecosystem, the project becomes easier to manage.
Engineers can talk to mold technicians directly. The foundry can give feedback to the design team. The machining workshop can report dimensional problems quickly. The inspection team can trace issues back to the right process. The testing team can return results to production without long waiting cycles.
This does not mean every Chinese supplier is automatically good. Buyers still need to check capability, quality control, experience, testing conditions, and communication.
But for a qualified manufacturer, China’s localized supply chain can make new cylinder block development faster, more flexible, and more cost controlled.
FAQ
How long does it take to develop a new engine cylinder block?
The timeline depends on the material, design complexity, mold difficulty, testing requirements, and production readiness. Based on the project model discussed in this article, a localized development process in China may take around 90 to 110 days, while a distributed multi-country process may take much longer due to logistics, communication, and approval delays.
What are the main stages of engine block development?
The main stages include raw material preparation, product design, CAE simulation, mold development, casting, machining, inspection, assembly verification, bench testing, correction, and mass production preparation.
Why is mold development so important?
The mold directly affects casting shape, dimensional consistency, machining allowance, and defect control. If the mold is not accurate, the casting blank may create problems during machining, assembly, or testing.
What inspections are needed before mass production?
Common inspections include dimensional checks, CMM measurement, material testing, non-destructive testing, surface inspection, oil and coolant passage checks, and assembly-related verification.
Why can China’s local supply chain shorten development time?
Because design, mold making, casting, machining, inspection, testing, and production can often be coordinated within the same local supply chain. This reduces cross-border logistics, time-zone delays, and repeated approval cycles.
Is the lowest-cost cylinder block always the best choice?
No. Buyers should consider total development cost, quality stability, rework risk, testing capability, and long-term supply reliability. A low initial price may become expensive if the supplier cannot control quality or support repeat orders.
Conclusion
A new engine cylinder block development project is not just a casting job. It is a complete engineering process that requires design capability, material control, tooling experience, casting technology, precision machining, inspection, testing, and production management.
Based on our frontline factory experience, China’s localized development model offers clear advantages in project speed, cost control, communication efficiency, rework reduction, and supply-chain stability.
For importers, distributors, and wholesale buyers, this means faster sample development, more flexible correction, and better support for long-term bulk supply.
About Us
At Woda Auto, we supply high-quality automotive engines and engine components for global B2B buyers, including importers, distributors, wholesalers, and repair networks. Our product range covers complete engines, engine blocks, cylinder heads, crankshafts, camshafts, oil pumps, and other key engine parts for popular vehicle applications.
If you are sourcing engine cylinder blocks, complete engines, or related engine components for wholesale or distribution, Woda Auto can support your project with manufacturing experience, product matching, and bulk supply solutions.
Contact us today to discuss your sourcing needs or request a quote for your next bulk order.
