The G4LA is a compact 1,248 cc gasoline engine used in several popular Hyundai and Kia models, including selected versions of the Hyundai i10 and i20 and the Kia Picanto, Rio, and Stonic. Part of Hyundai Motor Group’s Kappa family, it combines a simple naturally aspirated design with four cylinders, 16 valves, and multi-point fuel injection.
Depending on the market, it may be described as either a 1.2-liter or 1.25-liter engine, even though both labels commonly refer to the same 1,248 cc unit. With an output of approximately 83 hp, or 84 PS, the G4LA was designed mainly for efficient, dependable everyday driving.
This guide looks at its applications, key features, reliability, common problems, maintenance requirements, and the most important points to check when sourcing a replacement engine.

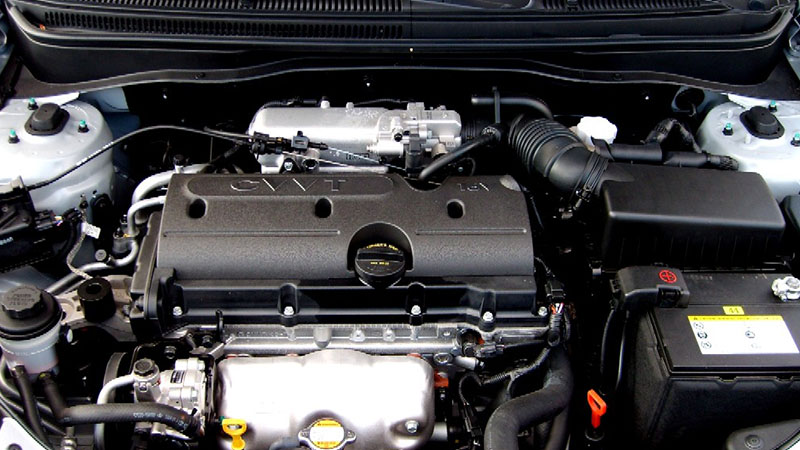

What Is the G4LA Engine?
The G4LA belongs to Hyundai Motor Group’s Kappa engine family, which was developed for small and compact passenger cars. Introduced in the late 2000s, the Kappa range was designed to reduce weight, friction, fuel consumption, noise, and emissions.
In its commonly referenced 1,248 cc configuration, the G4LA is a naturally aspirated inline-four gasoline engine with double overhead camshafts, 16 valves, multi-point fuel injection, and a timing chain.
| Specification | Common 1,248 cc G4LA configuration |
|---|---|
| Engine family | Hyundai-Kia Kappa |
| Configuration | Inline-four |
| Displacement | 1,248 cc |
| Aspiration | Naturally aspirated |
| Fuel system | Multi-point fuel injection |
| Valvetrain | DOHC, 16 valves |
| Bore × stroke | 71.0 × 78.8 mm |
| Compression ratio | Approximately 10.5:1 |
| Maximum power | Approximately 83 hp / 84 PS at 6,000 rpm |
| Maximum torque | Approximately 122 Nm at 4,000 rpm |
| Timing system | Timing chain |
| Fuel type | Gasoline |
These figures describe a commonly documented 1,248 cc application and should not be treated as universal specifications for every G4LA engine. Power output, valve-timing equipment, emissions controls, sensors, manifolds, and engine-management systems may vary by vehicle model, production year, transmission, and market.
What Vehicles Use the G4LA Engine?
The G4LA was mainly used in small Hyundai and Kia passenger cars sold in Europe and selected international markets. Its compact size and naturally aspirated MPI design made it well suited to city cars, hatchbacks, and entry-level crossovers.
Commonly associated applications include:
| Brand | Model | Commonly documented G4LA application |
|---|---|---|
| Hyundai | i10 | Selected 1.2- and 1.25-liter versions |
| Hyundai | i20 | Selected 1.25 MPI versions |

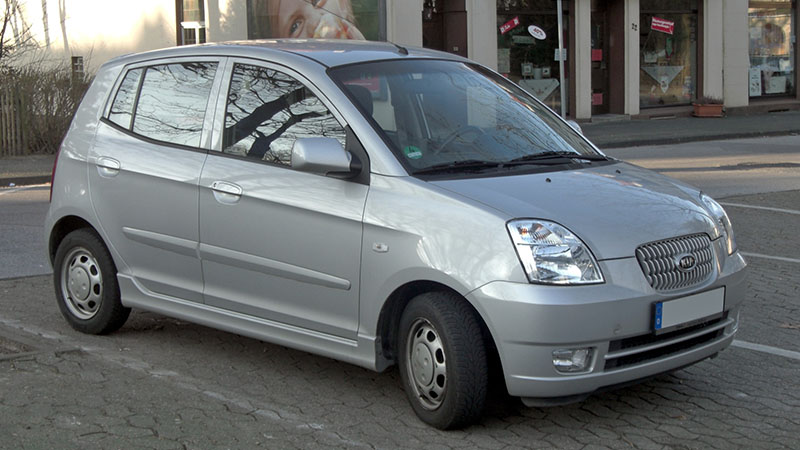

| Kia | Picanto/Morning | Selected 1.2- and 1.25 MPI versions |

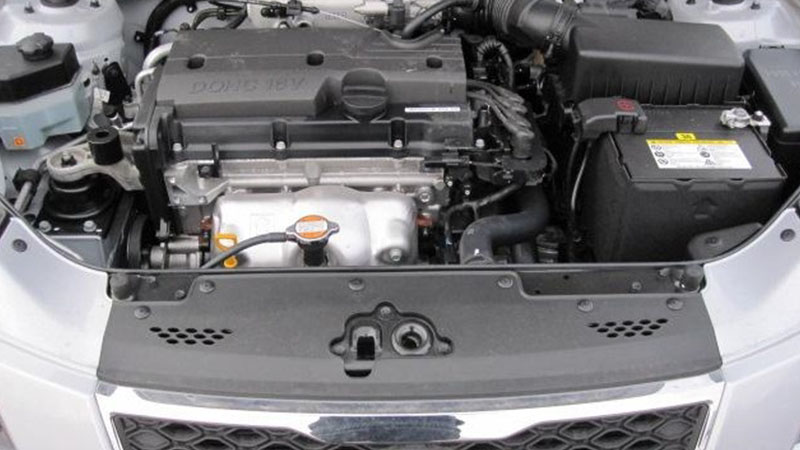

| Kia | Rio | Selected 1.25 MPI versions |
| Kia | Stonic | Selected 1.25 MPI versions |
Official Hyundai specifications confirm that certain i10 and i20 models were offered with naturally aspirated 1.25 MPI engines. Kia documentation also lists 1,248 cc four-cylinder MPI engines for selected Picanto, Rio, and Stonic models. Depending on the model and market, these versions typically produced around 84 PS and approximately 121–122 Nm of torque.
However, the presence of a 1.2 or 1.25 badge does not confirm that a vehicle uses the G4LA. The same model may have been sold with different engines depending on its production year, destination market, trim level, and transmission. Some 1.2-liter Hyundai and Kia engines also have different displacements and engine codes.
Key Features of the G4LA Engine
The G4LA was developed for everyday efficiency rather than high performance. Its lightweight construction, naturally aspirated design, and compact four-cylinder layout made it a practical choice for small Hyundai and Kia passenger cars.
Smooth, Practical Power Delivery
The inline-four layout generally provides smoother operation than a comparable three-cylinder engine, particularly at idle and during acceleration. This suits models such as the Hyundai i10 and i20 and the Kia Picanto, where comfort and predictable performance matter more than outright power.
Lightweight Aluminum Construction
The Kappa family uses an aluminum block and cylinder head to reduce engine weight. Because aluminum components are sensitive to excessive heat, proper cooling-system maintenance is especially important.
Simple MPI Fuel System
The G4LA uses multi-point fuel injection rather than direct injection. This is a relatively straightforward and widely serviceable system, without the high-pressure fuel components found in many direct-injection engines.
Variable Valve Timing
CVVT equipment can vary by application. For example, Kia documented dual CVVT for the 1.25 MPI engine used in the 2017 Picanto, but the same configuration should not be assumed for every G4LA engine. Replacement units should therefore be checked for differences in the cylinder head, sensors, wiring, and camshaft-control components.
Timing-Chain Drive
The engine uses a timing chain rather than a rubber timing belt. Although designed for long service life, the chain still depends on clean oil, correct oil pressure, and properly functioning guides and tensioners.
Naturally Aspirated Design
Without a turbocharger, the G4LA delivers predictable power with fewer forced-induction components. Its output is modest, but it is generally well suited to city driving, commuting, and light highway use.
Overall, the G4LA combines a simple, lightweight design with smooth everyday performance and relatively straightforward maintenance.
Is the G4LA Engine Reliable?
The G4LA is generally regarded as a dependable engine, but its long-term condition depends heavily on how it has been maintained and driven. In practice, service history is often a better indicator of reliability than mileage alone.
Two engines with the same odometer reading can be in very different condition. One may have received regular oil changes, proper coolant maintenance, and timely repairs, while another may have been run with low oil, overheated, or driven for long periods with unresolved warning lights.
There is no official mileage at which every G4LA will fail, so fixed lifespan claims should be treated cautiously. A higher-mileage engine with documented maintenance can still be a better purchase than a lower-mileage unit with an unknown history.
When assessing a used or higher-mileage G4LA, buyers should check:
- Cold-start noise, especially from the timing area
- Oil pressure and signs of excessive oil consumption
- Compression consistency across all cylinders
- Cooling-system condition and evidence of overheating
- Sludge or heavy deposits under the oil cap
- Blue or white exhaust smoke
- Previous cylinder-head or timing-system repairs
- Stored diagnostic trouble codes
- Oil or coolant leaks
- Available maintenance and repair records
A compression test, cooling-system pressure test, diagnostic scan, and cold-start inspection can reveal far more than mileage alone. Overall, the G4LA can deliver reliable service when it has been properly maintained, but its actual condition should always be verified before purchase or installation.
Common G4LA Engine Problems
There is no strong evidence of one defect affecting every G4LA engine. Most issues are linked to age, maintenance history, and operating conditions, so symptoms should be properly diagnosed before major repairs are recommended.

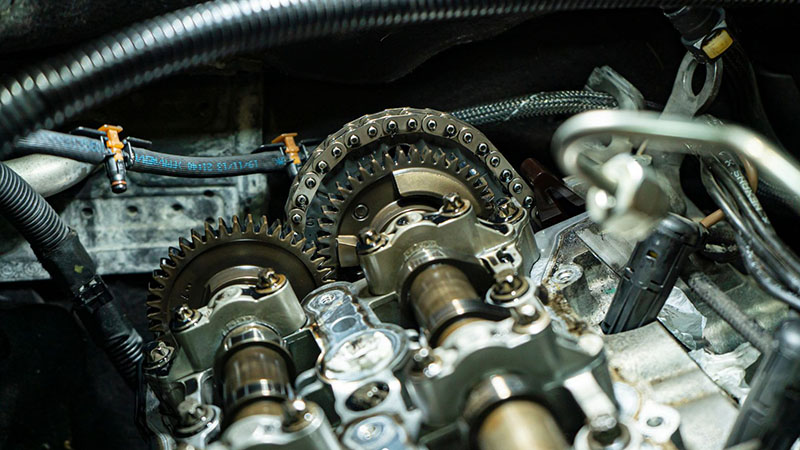

1. Timing-Chain Noise
A metallic rattle during startup may be related to the timing chain, tensioner, guides, or CVVT components. Low oil level, poor oil flow, or worn timing parts can all contribute.
2. Increased Oil Consumption
Increased oil consumption may result from worn or stuck piston rings, valve-stem seals, PCV faults, external leaks, or general cylinder wear. Blue exhaust smoke can indicate internal oil burning, but further testing is needed to confirm the cause.
3. Oil Leaks
Leaks may develop around the valve-cover gasket, timing cover, oil pan, crankshaft seal, or oil-pressure switch. Even a small leak can lower the oil level over time.
4. Rough Idle or Misfiring
Common causes include worn spark plugs, faulty ignition coils, dirty injectors, intake leaks, sensor problems, or low compression. A diagnostic scan is usually the best first step.
5. Overheating
Coolant leaks, thermostat failure, cooling-fan problems, radiator restriction, or water-pump faults can cause overheating. Continued driving may damage the head gasket or cylinder head.
6. Reduced Performance
Loss of power may result from ignition faults, sensor problems, incorrect timing, restricted exhaust flow, fuel-delivery issues, or low compression.
Overall, most G4LA problems can be managed more effectively when warning signs are investigated early rather than ignored.
G4LA Engine Maintenance Tips
Regular maintenance is especially important for G4LA engines used mainly in city traffic, where short trips, idling, and stop-and-go driving can place extra stress on the oil and cooling system.
Check the Oil Level Regularly
Do not rely on the oil-pressure warning light as a level indicator. Check the dipstick on level ground and investigate any sudden increase in oil consumption.
Use the Correct Oil and Filter
Oil viscosity and service intervals vary by model year, climate, and market. Follow the vehicle owner’s manual and use a suitable filter, as the timing-chain system depends on clean, properly circulating oil.
Inspect Timing Noise Early
Persistent startup rattling may indicate wear in the chain, tensioner, guides, or CVVT components. Early inspection can help prevent more serious timing-related damage.
Maintain the Cooling System
Check coolant condition, hoses, radiator, thermostat, water pump, and cooling fan. Unexplained coolant loss should be diagnosed rather than repeatedly topped up.
Replace Ignition Parts as Required
Worn spark plugs and faulty ignition coils can cause misfires, poor fuel economy, and difficult starting. Replace them according to the recommended service schedule.
Drive Gently When Cold
There is no need for prolonged idling. Start the engine and drive gently until it reaches normal operating temperature, avoiding high rpm and heavy loads while cold.
Consistent oil, cooling, and ignition-system maintenance can significantly reduce the risk of premature G4LA engine wear.
How the G4LA Differs from Similar Hyundai-Kia Engines
Hyundai-Kia engine codes can look very similar, which often causes confusion in replacement listings. However, the G3LA, G4LB, G4LA, and G4FA are separate engines with different specifications, applications, and fitment requirements. Even when two engines appear in the same vehicle range or are both marketed as 1.2-liter units, they should not be assumed to be interchangeable.
| Engine code | Common displacement | Cylinders | Engine family | Main difference from G4LA |
|---|---|---|---|---|
| G3LA | 998 cc | 3 | Kappa | Smaller three-cylinder 1.0 MPI engine |
| G4LB | 1,197 cc | 4 | Kappa | Smaller regional 1.2-liter version |
| G4LA | 1,248 cc | 4 | Kappa | Common 1.25 MPI configuration |
| G4FA | 1,396 cc | 4 | Gamma | Larger 1.4-liter engine from a different family |
These engines can differ in their block and cylinder head, internal components, mounts, manifolds, sensors, wiring, ECU calibration, emissions equipment, and transmission compatibility.
Before ordering a replacement, buyers should confirm the stamped engine code, VIN, production year, destination market, transmission type, and original engine configuration.

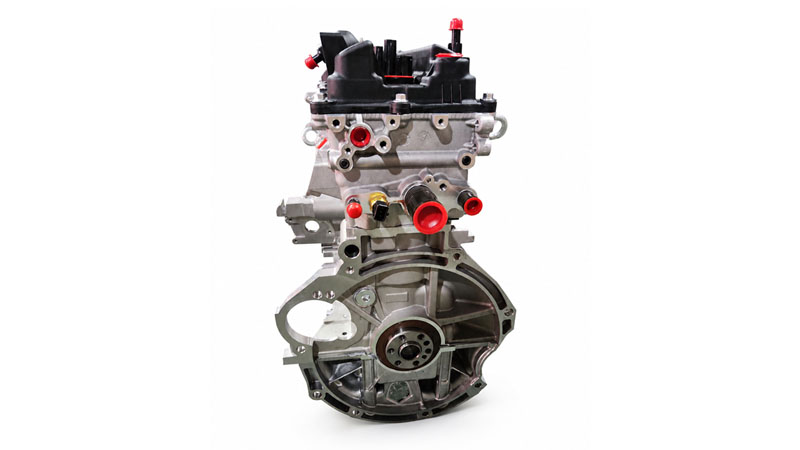

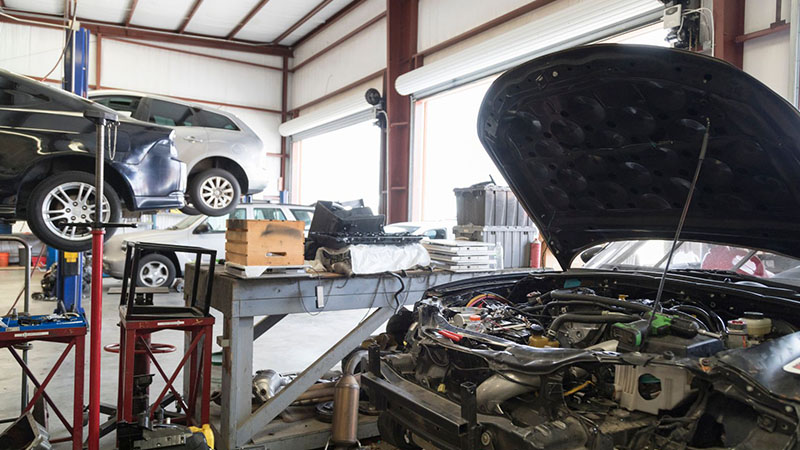

Sourcing a G4LA Replacement Engine: What Buyers Should Know
An engine advertised as “G4LA” is not automatically a direct replacement. Versions may differ by production year, market, transmission, emissions standard, CVVT system, sensors, wiring, and external components.
Confirm the Exact Engine
Before ordering, verify the stamped engine code, VIN, vehicle model, production year, destination market, transmission type, and CVVT configuration.
Clear photos of the original engine should also show the code area, cylinder head, timing cover, manifolds, sensors, connectors, and mounting points.
Clarify What Is Included
The term “complete engine” can mean different things to different suppliers. A quotation may cover a short block, long block, engine with manifolds, fully dressed engine, or engine-and-transmission assembly.
Confirm whether the package includes the injectors, ignition coils, alternator, starter, wiring harness, ECU, flywheel or flexplate, engine mounts, and other accessories.
Check Condition and Testing
For a used engine, request the recorded mileage, compression results, oil-pressure information, running videos, diagnostic records, and warranty terms.
For rebuilt or remanufactured engines, ask which internal parts were inspected, machined, or replaced and what final testing was completed.
Compare the Total Cost
New engines usually offer the most predictable condition but come at a higher price. Used engines cost less but carry more uncertainty, while rebuilt and remanufactured units depend heavily on the quality of the repair process.
Shipping, installation, fluids, gaskets, labor, and the risk of removing a defective engine should all be considered when comparing offers.
Provide Complete Order Details
B2B buyers should provide the required engine code, vehicle applications, destination market, transmission type, assembly level, quantity, packaging requirements, and reference photos.
Supplying complete information at the quotation stage greatly reduces compatibility risks and helps the supplier recommend the correct engine configuration.
FAQ
Is the G4LA a 1.2-liter or 1.25-liter engine?
The G4LA has an actual displacement of 1,248 cc, or approximately 1.25 liters. However, Hyundai and Kia may market it as either a 1.2-liter or 1.25-liter engine, depending on the vehicle and market. The engine code and technical specifications are more reliable than the rounded badge.
Which vehicles use the G4LA engine?
The G4LA is commonly found in selected versions of the Hyundai i10 and i20 and the Kia Picanto/Morning, Rio, and Stonic. Engine options differ by production year and country, so the VIN and original engine code should always be checked before ordering a replacement.
Is the G4LA engine reliable?
The G4LA can provide dependable service when it receives regular oil changes, proper cooling-system maintenance, and timely repairs. Its actual condition depends more on maintenance history, overheating, oil consumption, and previous repairs than on mileage alone.
Does the G4LA use a timing belt or timing chain?
The G4LA uses a timing chain. It does not normally have the same scheduled replacement interval as a rubber timing belt, but persistent startup rattling or timing-related fault codes should be investigated. The chain, tensioner, guides, and oil pressure may all require inspection.
Are all G4LA engines interchangeable?
No. G4LA engines may differ by production year, market, transmission, CVVT system, emissions equipment, sensors, wiring, manifolds, and external accessories. Compatibility should be confirmed using the VIN, stamped engine code, transmission type, and clear photographs of the original engine.
Conclusion
The G4LA is a compact 1,248 cc four-cylinder engine from Hyundai Motor Group’s Kappa family. Commonly marketed as either a 1.2-liter or 1.25-liter unit, it was used in selected Hyundai i10 and i20 models, as well as the Kia Picanto, Rio, and Stonic.
With regular oil changes, proper cooling-system care, and timely attention to timing noise, oil consumption, leaks, or misfires, the G4LA can provide dependable everyday service.
When sourcing a replacement, however, the engine code alone is not enough. Buyers should also confirm the VIN, production year, destination market, transmission, CVVT configuration, sensors, manifolds, and required assembly level.
