If you’re considering the F18D4 engine, whether as a parts supplier, mechanic, or vehicle owner, it’s crucial to understand its specifications and performance characteristics. This 1.8L petrol engine has powered a variety of popular models, offering solid performance and reliability.
However, there are key considerations around its maintenance and potential issues. In this guide, we’ll cover everything from specifications and applications to common problems and buying tips, helping you make an informed decision.
What is the F18D4 Engine?
The F18D4 is a 1.8‑litre inline‑4 petrol engine from General Motors, part of their Ecotec engine family. Commonly found in vehicles like the Chevrolet Cruze, this engine strikes a balance between power and fuel efficiency, making it a reliable choice for everyday driving.
While not designed for high-performance applications, it offers solid performance for daily commuting, backed by GM’s reputation for durability and ease of maintenance. With its straightforward design and broad parts availability, the F18D4 remains a popular option for both new car buyers and those seeking a replacement engine.
Which Vehicles Use the F18D4? (Applications)
The F18D4 engine is most commonly found in several GM and Opel models, particularly in compact and mid-size vehicles. Here are some notable models:
- Chevrolet Cruze (2008–2016): One of the primary vehicles to use the F18D4, sold across various global markets.
- Chevrolet Orlando (some variants): Available in select regions like Europe and Asia.
- Opel Astra: In some European markets, the F18D4 was used in certain Astra models.
- Opel Zafira: Also found in certain regional variants of the Zafira MPV.
If your vehicle is a 1.8L petrol GM/Opel/Chevy model from this era, there’s a good chance it’s equipped with the F18D4 engine. This is important when sourcing parts or considering compatibility for repairs or engine swaps. Knowing the engine code helps ensure the correct parts are used, particularly when dealing with the transmission, ECU, and cooling systems.
F18D4 Specifications in Detail
The F18D4 is a well-balanced 1.8L naturally aspirated engine designed for everyday use, offering a solid mix of power and fuel efficiency. Below are its key specifications:
| Specification | Value |
|---|---|
| Displacement | 1,796 cc (1.8L) |
| Bore × Stroke | 80.5 mm × 88.2 mm |
| Compression Ratio | 10.5:1 |
| Maximum Power | 138 hp (105 kW) @ 6,200 RPM |
| Maximum Torque | 176 Nm @ 3,800 RPM |
| Block / Head | Cast‑iron block |
Engine Design Focus
The F18D4 is engineered for practicality, with a focus on low- and mid-range torque, making it ideal for daily driving. Its moderate power output of 138 hp and peak torque of 176 Nm provide smooth acceleration and fuel efficiency, without the need for high-rev performance. The cast-iron block ensures durability and heat resistance, making it well-suited for long-term use in everyday vehicles.
While not designed for performance tuning, the F18D4 strikes a solid balance for those seeking reliability and efficiency in compact and mid-size GM models.
Reliability & Common Problems with the F18D4
When considering the F18D4, reliability and common problems are top of mind for many readers. Here’s a breakdown of known issues:
Common issues
- Oil consumption: Higher than normal oil use is a reported issue, especially with higher mileage units.
- Timing chain wear: Some users report timing chain stretch or failures due to neglect or high mileage.
- Coolant leaks: Issues with oil cooler failures that result in oil mixing with coolant.
- PCV/valve cover leaks: Vacuum leaks or leaks around the valve cover are common on high-mileage engines.
What this means practically
- If an engine has high mileage and poor service history, you may face higher maintenance costs.
- For parts suppliers, key areas to focus on include sealing systems, oil cooler integrity, and timing components.
- Preventive maintenance is a must—neglect will amplify risks.
For a well‑maintained example, the F18D4 is reasonably reliable and fits the everyday driving role well. But it’s not bullet‑proof—especially after 100,000+ km if oil/coolant systems have been neglected. If you’re sourcing used engines, you’ll want to check for signs of the common issues listed above.
Is the F18D4 a Good Engine? Pros & Cons
The F18D4 engine is a solid choice for daily driving, offering a balance of reliability and efficiency. Here’s a quick look at its pros and cons:
| Pros | Cons |
|---|---|
| Good parts availability: Widely used in various models, so replacement parts are easy to find. | Oil consumption: Some users report higher-than-average oil usage. |
| Decent all‑round performance: Ideal for commuting, with a good balance of power and efficiency. | Coolant system leaks: Issues like oil cooler leaks can arise with age. |
| Straightforward architecture: Simple design makes it easier to repair and maintain. | Not for performance tuning: Modest power and naturally aspirated, limiting tuning potential. |
| Fuel efficiency: A 1.8L engine size ensures good fuel economy for daily driving. | Older design: Units with higher mileage may show signs of wear and require more maintenance. |
Overall verdict:
The F18D4 is a reliable and cost-effective engine for everyday use. It’s a great option for those seeking a dependable replacement engine or parts supply, provided the unit is well-maintained. However, it’s not suitable for performance builds, and when buying used, checking the condition and service history is crucial.
Comparison: F18D4 vs F18D3 vs F16D4
To better understand the F18D4’s place in the engine family, it’s helpful to compare it with its close relatives, the F18D3 and F16D4. While these engines share similar architecture, there are key differences in performance and parts compatibility. Here’s a quick comparison to help you choose the right option.
| Engine Code | Displacement | Key Features / Differences | Typical Power / Notes |
|---|---|---|---|
| F18D3 | ~1.8L (1,796 cc) | Earlier version of the F-series 1.8L engine. Lacks advanced valve timing and control systems, with some reported reliability issues. | ~121 hp / ~169 Nm |
| F18D4 | ~1.8L (1,796 cc) | Improved version of the F18D3. Features variable valve timing (VVT) and better intake manifold design, offering enhanced efficiency and durability. | ~138 hp / ~176 Nm |
| F16D4 | ~1.6L (1,598 cc) | Smaller displacement, designed for lighter vehicles. Shares many components with the F18D4 but with reduced output. | ~113–124 hp / ~152–154 Nm |
Each of the three engines—F18D4, F18D3, and F16D4—has its own strengths and is suited for different applications.
The F18D4 offers enhanced performance and efficiency, with features like variable valve timing (VVT) for improved durability.
The F18D3, while an earlier version, remains a solid choice for many applications.
The F16D4, with its smaller displacement, is ideal for lighter vehicles that prioritize fuel efficiency.
Buying Guide / Replacement Engine Considerations
If you (or a customer) are sourcing an F18D4, here’s a useful checklist to ensure a smart purchase.
What to check
- Engine code: Verify the F18D4 (and any region-specific codes) match the vehicle.
- Mileage/service history: Lower mileage is preferable; check oil change records.
- Oil level and color: Dark or burnt-smelling oil may indicate neglect.
- Coolant system: Look for oil in the coolant or signs of oil cooler leaks.
- Compression test: Ensure even compression across all cylinders.
- Timing components: Consider replacing the timing chain/belt if the engine has high mileage.
- Vacuum/PCV system: Check for vacuum leaks or valve-cover gasket leaks.
- Engine mounts & wiring: For swapped engines, ensure correct harnesses and ECU compatibility.
When to avoid
- Engines from vehicles with a history of overheating or water pump failure.
- Units with oil in the coolant.
- Engines lacking service history or showing signs of neglect.
Maintenance tips after purchase
- Use high-quality oil (per manufacturer specs) from the start.
- Replace oil cooler gaskets/seals if not already done.
- Monitor oil consumption for the first 1,000 km.
- Replace PCV/valve cover gaskets if leaks are present.
- Follow recommended service intervals for spark plugs, belts, and filters.
By following a thorough inspection and buying process, you can minimize risks and ensure the engine provides long-term, trouble-free performance for you or your customers.
FAQ
What cars use the F18D4 engine?
The F18D4 was used primarily in the Chevrolet Cruze (and related GM/Opel models) between roughly 2008 and 2016.
How many horsepower does the F18D4 engine make?
Typical figures show around 138 hp (≈105 kW) at ~6,200 rpm.
Is the F18D4 engine reliable?
Yes—but with caveats. It’s reliable when well‑maintained, but issues like oil consumption, timing chain wear, and coolant/oil leaks have been reported.
What are common problems with the F18D4 engine?
See above section: oil use, timing chain/timing component issues, coolant leaks (oil cooler), PCV/valve cover leaks.
Can I swap an F18D4 engine into a different model?
In principle yes—if mounts, wiring, ECU, cooling system, and accessories are matched. But it requires careful compatibility checks.
Conclusion
In conclusion, the F18D4 is a durable 1.8L petrol engine that offers significant value when properly maintained. For B2B customers such as parts suppliers, repair shops, and fleet operators, it provides a reliable and efficient solution for everyday applications.
To maximize its lifespan and performance, it’s crucial to thoroughly assess the engine’s condition and service history. By prioritizing quality, inspection, and regular maintenance, the F18D4 can deliver long-term reliability and cost-effectiveness for your business.
About Us

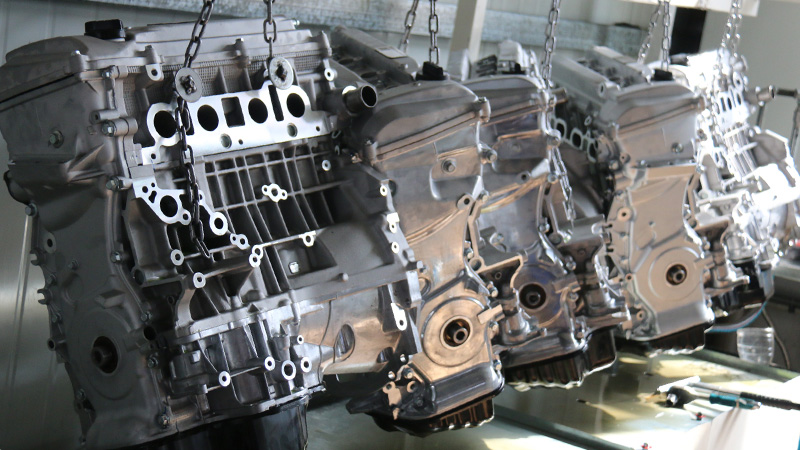

At Nanjing Woda Auto Technology Co., Ltd., we have over 25 years of experience supplying high-quality engine parts to businesses worldwide.
