When it comes to small displacement engines, Mitsubishi’s 4G family has built a reputation for being tough, reliable, and surprisingly versatile. Among them, the Mitsubishi 4G15 engine stands out as one of the most widely used powerplants in the brand’s compact cars. From budget-friendly daily drivers to tuners experimenting with light upgrades, the 4G15 has proven itself over decades of service.
In this article, we’ll cover everything you need to know: specs, the cars that used it, reliability, performance limits, and key maintenance details. By the end, you’ll have a complete picture of why the 4G15 remains relevant even today.
Mitsubishi 4G15 Engine Overview
The 4G15 is part of Mitsubishi’s Orion engine series, first appearing in the late 1980s. Built primarily for compact sedans and hatchbacks, it was designed with simplicity and efficiency in mind. Over time, Mitsubishi released several variations — from carbureted single-overhead-cam (SOHC) versions to more advanced DOHC and even gasoline direct injection (GDI) setups.
This adaptability helped the engine find its way into multiple global markets, including Asia, Europe, and South America. It also became a favorite for automakers like Proton, who used it in their locally built cars.
Mitsubishi 4G15 Engine Specs
| Specification | Details |
|---|---|
| Engine Code | 4G15 |
| Displacement | 1,468 cc (1.5L) |
| Bore × Stroke | 75.5 mm × 82 mm |
| Block / Head Material | Cast-iron block / Aluminum cylinder head |
| Configuration | Inline-4, naturally aspirated (rare turbocharged versions) |
| Valvetrain | SOHC (8-valve or 12-valve) / DOHC (16-valve) |
| Fuel System | Carburetor (early), Multi-Point Fuel Injection (MPI), or Gasoline Direct Injection (GDI) |
| Compression Ratio | 9.0:1 (SOHC carb) to 10.0:1 (DOHC GDI) |
| Power Output | ~85–90 hp (SOHC carbureted) ~95–105 hp (SOHC MPI) ~110–115 hp (DOHC GDI) |
| Torque | 120–135 Nm (88–100 lb-ft), depending on version |
| Redline | ~6,000–6,500 rpm (stock trims) |
| Timing | Belt-driven camshaft |
| Engine Type | Mostly interference (timing belt failure risks valve damage) |
| Production Years | ~1988 to mid-2000s |
Throughout its production run, the 4G15 was refined to meet changing market demands. Each update brought improvements in performance, efficiency, or reliability, while keeping the same 1.5L foundation.
From economy-focused SOHC units in the late ’80s to more advanced multi-valve and GDI models in the 2000s, the 4G15 demonstrated its adaptability across decades.
Generations & Evolution
| Version | Years | Key Features | Power Output |
|---|---|---|---|
| Early Versions (Carbureted SOHC) | 1988 – early 1990s | Basic SOHC design, carbureted, focused on fuel economy and low operating costs | ~85–90 hp |
| Mid Versions (SOHC MPI) | Mid-1990s | Introduced Multi-Point Fuel Injection (MPI), improving drivability, efficiency, and reliability | ~95–105 hp |
| Later Versions (DOHC & GDI) | Late 1990s – 2000s | DOHC 16-valve heads, higher compression; GDI offered better efficiency but prone to carbon buildup | ~110–115 hp |
| Turbocharged Variant (rare) | Limited production / aftermarket builds | Produced in small numbers, often tuner-focused; offered stronger performance potential | ~150 hp (stock), higher when tuned |
4G15 vs Other 4G1 Engines
The 4G15 sat in the middle of Mitsubishi’s Orion engine family. The smaller 4G13 (1.3L) prioritized fuel economy but often felt underpowered in heavier cars, while the larger 4G18 (1.6L) delivered more torque and horsepower at the cost of slightly higher fuel use.
Striking a balance between performance and efficiency, the 4G15 became the most widely adopted Orion-series engine and Mitsubishi’s go-to 1.5L powerplant for more than two decades.
| Engine | Displacement | Power Output | Torque |
|---|---|---|---|
| 4G13 | 1,298 cc (1.3L) | ~73–85 hp | ~110 Nm |
| 4G15 | 1,468 cc (1.5L) | ~85–115 hp (SOHC/DOHC/GDI) | 120–135 Nm |
| 4G18 | 1,584 cc (1.6L) | ~100–120 hp | ~140 Nm |
Note: The Orion family also included other variants such as the 4G11, 4G12, 4G16, 4G17, and 4G19, though these were less widely used outside Japan.
Cars That Used the 4G15
As Mitsubishi’s go-to 1.5L engine for over two decades, the 4G15 appeared in a wide range of sedans, hatchbacks, and compact cars worldwide.
Notable applications include:
- Mitsubishi Lancer (late ’80s–2000s): Widely used across multiple generations, especially in entry-level and mid-range trims.
- Mitsubishi Mirage / Colt: The core platform for the 4G15, from early boxy models to 2000s daily drivers.
- Proton Models (Wira, Satria, Saga, Persona): Licensed in Malaysia, becoming one of the most common engines of the 1990s–2000s.
- Mitsubishi Space Star / Dingo: Used in select markets for compact MPVs.
- Hyundai Excel (early models): Among Hyundai’s first international models powered by Mitsubishi engines.
Because of its global reach, parts remain widely available today. This makes the 4G15 a practical choice for repairs, rebuilds, and budget-friendly projects, as well as an attractive option for workshops and importers seeking reliable 1.5L engines.
Reliability & Common Problems
The Mitsubishi 4G15 earned a reputation as a durable workhorse, with many lasting well over 200,000 km (124,000+ miles) on routine maintenance. Its simple design and wide parts availability also make it cheaper to maintain than many modern engines.
Still, there are some common issues to watch for:

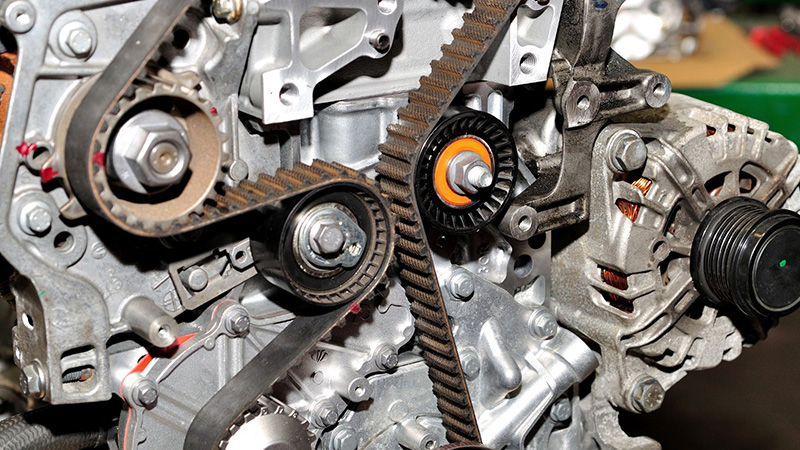

- Timing Belt Wear: As most versions are interference engines, a snapped belt can cause major damage. Replace every 60,000–100,000 km.
- Oil Consumption: High-mileage units may burn oil due to worn rings, seals, or PCV issues.
- Idle Problems (GDI models): Prone to carbon buildup, causing rough idle or stalling.
- Overheating: Weak cooling systems can warp heads or blow gaskets.
- Oil Leaks: Older engines often seep from gaskets and seals.
Common Mitsubishi 4G15 Problems & Fixes
| Problem | Symptoms | Fix / Solution |
|---|---|---|
| Timing belt failure | Sudden stop, knocking, no compression | Replace belt & tensioner (60k–100k km) |
| Oil consumption | Blue smoke, frequent top-ups | Replace piston rings, seals, or PCV valve |
| Idle issues (GDI) | Rough idle, stalling, poor fuel economy | Clean valves/injectors; use quality fuel |
| Overheating | Rising temp, coolant loss | Replace water pump, radiator, thermostat |
| Oil leaks | Oil spots, burning smell | Replace valve cover/oil pan gaskets, seals |
Overall, the 4G15 is reliable and low-maintenance, especially the carbureted and MPI versions. GDI models deliver better efficiency but need more attention. Regular oil changes, cooling care, and timely belt service are the keys to long life.
Performance & Tuning Potential
In stock form, the Mitsubishi 4G15 produces about 90–110 hp and 120–135 Nm (88–100 lb-ft) of torque, depending on whether it’s the early SOHC carbureted version or the later DOHC fuel-injected/GDI models. That’s adequate for daily use but modest by modern standards.
For enthusiasts, there’s still some tuning potential:
- Naturally Aspirated Mods: Basic upgrades like intake, exhaust, headers, and mild cams can push output to 120–130 hp, with ECU tuning and lightweight flywheels improving throttle response.
- Turbocharging: With a small turbo (often borrowed from the 4G63), stock internals can handle 150–160 hp at 6–8 psi. With forged pistons, stronger rods, and upgraded fueling, builds of 180–200 hp are possible, though reliability becomes a concern.
- Aftermarket Support: Not as extensive as the 4G63, but shared Orion-family parts, plus support from Mirage and Proton communities, keep upgrades available.
Mitsubishi 4G15 Tuning Stages
| Stage | Setup | Estimated Output | Notes |
|---|---|---|---|
| Stock | SOHC carb, SOHC MPI, or DOHC GDI | ~90–110 hp | Reliable, daily-use friendly |
| N/A Mods | Intake, exhaust, headers, mild cam, ECU tune | ~120–130 hp | Better throttle response, affordable upgrades |
| Mild Turbo | Small turbo (6–8 psi) on stock internals | ~150–160 hp | Safe limit for stock pistons/rods |
| Forged Turbo Build | Turbo + forged pistons, rods, upgraded fueling, ECU tuning | ~180–200 hp | Higher power, but reliability depends on build quality |
While the 4G15 was never built as a performance powerhouse, it’s still a fun, affordable platform for budget builds and grassroots racing. For serious horsepower goals, a 4G63 or 4G93 swap remains the smarter long-term choice.
Applications in Motorsport
While the Mitsubishi 4G15 doesn’t carry the racing pedigree of the 4G63 found in Evos, it has still played a meaningful role in grassroots and regional motorsport. Its compact size, affordability, and wide availability made it a natural choice for entry-level competition.
- Rallycross and Autocross: The lightweight Mirage and Colt fitted with the 4G15 are agile and easy to handle, making them popular with amateur drivers who want to compete without spending heavily on engine swaps.
- Club Racing and Track Days: The 4G15-powered Mirage and Lancer often appeared in local racing leagues where consistency and low maintenance costs mattered more than sheer horsepower.
- Proton Motorsport (Malaysia): Proton, which used the 4G15 under license, introduced thousands of cars with this engine into Southeast Asia. Many of these became grassroots race cars in hill climbs, gymkhana, and circuit racing.
- Historic & Budget Builds: Even today, the 4G15 shows up in smaller racing categories, particularly in developing motorsport communities where reliability and affordability are top priorities.
In short, the 4G15 may not be a world-class racing engine, but it has served as a stepping stone for countless amateur racers, helping enthusiasts get into motorsport without breaking the bank.
Buying & Replacement Guide
If you’re looking for a Mitsubishi 4G15 engine today, it’s still easy to find thanks to its long production run and global use.
- Availability: Widely sold as used, remanufactured, or imported units. Proton’s use of the 4G15 also ensures strong supply in Southeast Asia.
- Cost: More affordable than larger Mitsubishi engines. Remanufactured versions cost more upfront but usually include warranties.
- What to Check:
- Compression test results
- Timing belt service history
- Oil and coolant condition
- Signs of overheating or head gasket damage
- Compression test results
For workshops and importers, remanufactured engines with warranties are often the safer bet, avoiding the risks that come with unknown used units. Overall, the 4G15 remains a budget-friendly and practical replacement option for both individual owners and B2B buyers.
Conclusion
The Mitsubishi 4G15 engine may not share the fame of its larger siblings, but it has earned its place as a reliable, efficient, and widely used workhorse. From powering everyday commuter cars to making its way into grassroots motorsport, the 4G15 has proven that durability and simplicity can stand the test of time. Even today, it remains a practical option for repairs, rebuilds, and budget-friendly projects around the world.

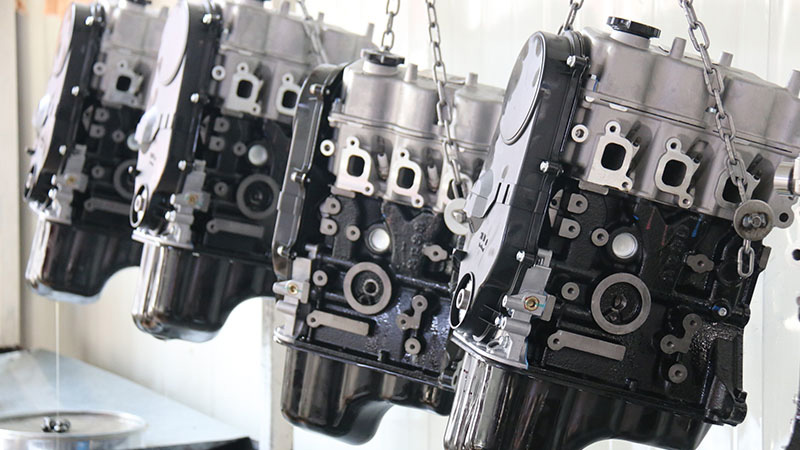

At Woda Auto, we specialize in supplying high-quality auto engine parts and complete engines — including Mitsubishi models like the 4G15 — to professional buyers in more than 100 countries.
