Installing a new or rebuilt engine should fix problems—not create them. Yet in real-world situations, one issue comes up more often than expected:
“We installed the engine, but it won’t start.”
Before jumping to the conclusion that the engine is defective, it’s worth taking a step back. In most cases, the root cause isn’t the engine itself—it’s something in the surrounding system.
In this guide, we’ll walk through the most common reasons a new engine won’t start, how to diagnose the issue step by step, and what to check before considering a replacement.
First: Is It Really an Engine Problem?
Here’s something many people overlook:
Most “no-start” issues after installing a new engine are not caused by the engine itself.
In many cases, the problem comes from surrounding systems, such as:
- wiring or connection issues
- fuel delivery problems
- ECU or sensor mismatches
- installation errors
An engine doesn’t operate in isolation—it’s part of a much larger system. If any supporting component isn’t working properly, the engine won’t run, no matter how new it is.
Quick Diagnosis: What Happens When You Try to Start?
Before going deeper, start with a simple but important observation—what happens when you try to start the engine? This can quickly narrow down the issue.
1. Engine Cranks But Won’t Start
You hear the engine turning over, but it doesn’t fire up.
👉 This usually means the engine has power, but something is missing for combustion.
Common causes:
- Fuel system issues → no fuel pressure or injector problems
- Ignition failure → no spark or incorrect timing
- Sensor or ECU problems → faulty signals or immobilizer issues
2. Engine Doesn’t Crank at All
You turn the key, but nothing happens (or just a click).
👉 This points to a problem before the engine even engages.
Likely causes:
- Weak or dead battery
- Faulty starter motor or relay
- Poor electrical connections or grounding
This simple distinction—crank vs. no crank—can save time and help you identify the issue much faster.
Top Reasons a New Engine Won’t Start After Installation
Let’s break down the most common causes step by step.

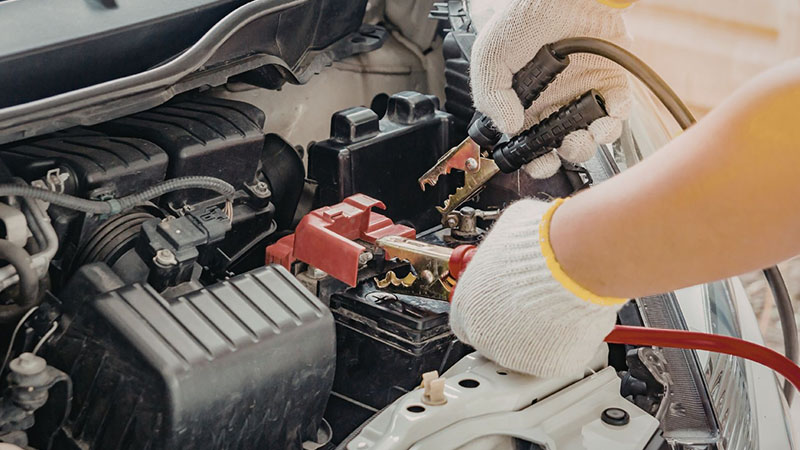

1. Electrical System Issues
Modern engines depend heavily on a stable electrical supply.
Common problems include:
- low battery voltage
- loose or corroded terminals
- weak or missing ground connections
Even a brand-new engine won’t start if the electrical system can’t support it.
2. Fuel System Problems
No fuel means no combustion—it’s that simple.
Check for:
- lack of fuel pressure
- fuel pump relay or fuse issues
- clogged or inactive injectors
- disconnected fuel lines
- incorrect fuel type
In many cases, the issue is something minor—such as a loose connector, a blown fuse, or a fuel pump relay that wasn’t properly checked during installation.

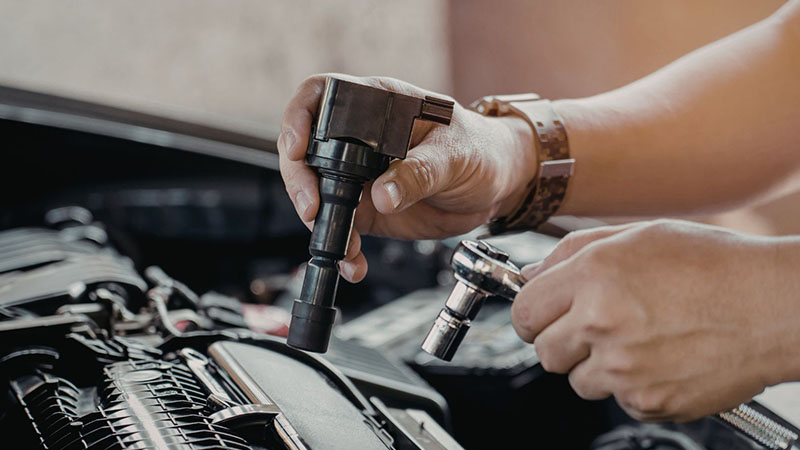

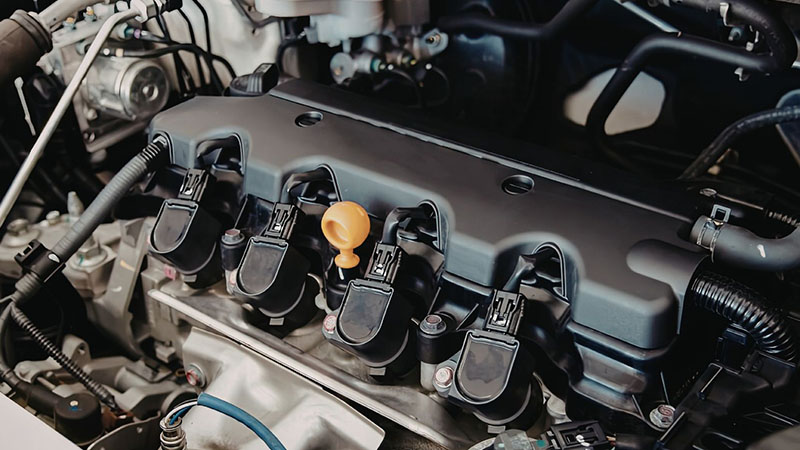

3. Ignition Failure
Without spark, the engine won’t fire.
Possible causes:
- faulty ignition coils
- worn or incorrect spark plugs
- improper ignition timing
This is especially common in rebuilt engines where timing components have been reinstalled.

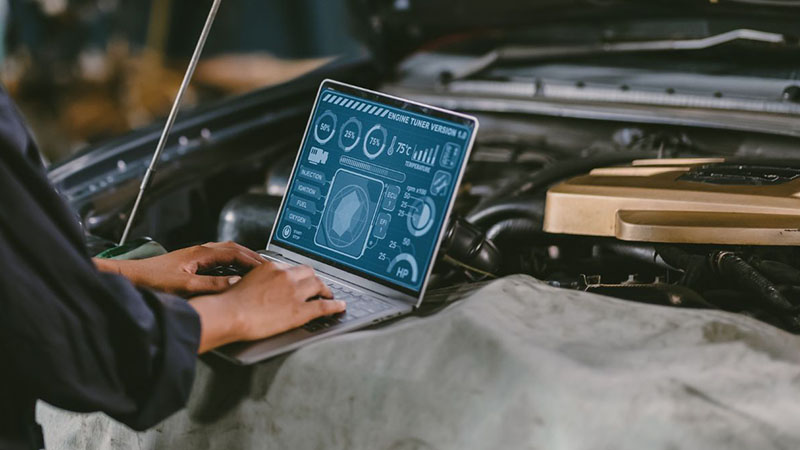

4. Sensor & ECU Mismatch
This is one of the most overlooked causes.
Modern engines rely on sensors to communicate with the ECU. If the ECU isn’t receiving the correct signals, it may prevent the engine from starting.
Key areas to check:
- crankshaft position sensor
- camshaft sensor alignment
- ECU compatibility or programming
- immobilizer system
A mismatch here can make a perfectly good engine seem completely unresponsive.
Quick Summary
Here’s a simplified overview of the most common causes and their typical symptoms:
| Category | Common Issues | Typical Symptoms |
|---|---|---|
| Electrical | Low battery, poor grounding | No crank or weak cranking |
| Fuel | No pressure, injector failure | Cranks but won’t start |
| Ignition | No spark, timing issues | Cranks but no ignition |
| ECU/Sensors | Signal mismatch, immobilizer | No start or intermittent |
In most cases, a new engine won’t start because of external system issues—not the engine itself. Starting with these four areas—electrical, fuel, ignition, and ECU—can help you identify the problem quickly and avoid unnecessary replacements.
Common Installation Mistakes (Often the Real Cause)
From experience, this is where many no-start issues actually come from.
Even small installation errors can prevent a perfectly good engine from running—especially with modern engines that rely on precise alignment and correct connections.
Typical mistakes include:

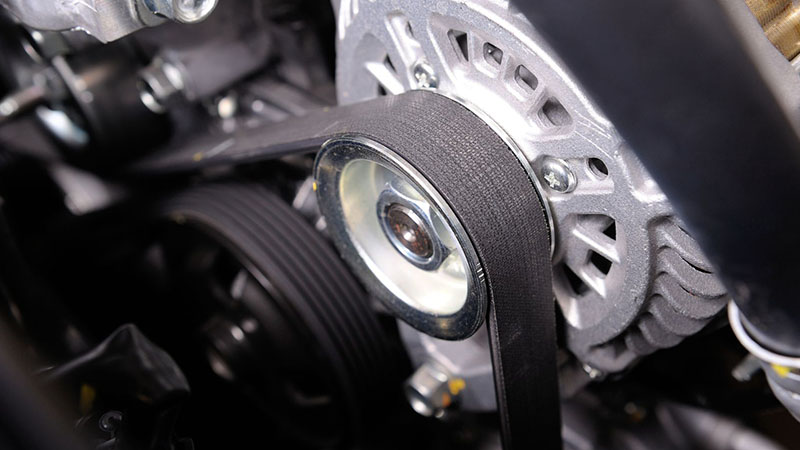

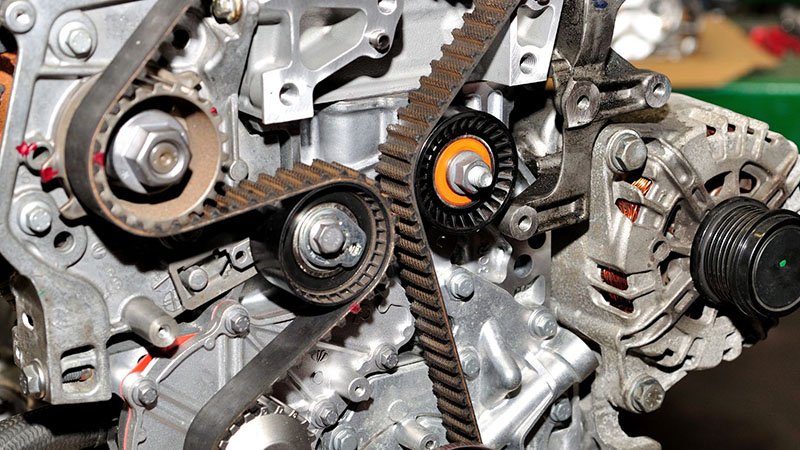

- Incorrect timing alignment → even slight misalignment of the timing belt or chain can prevent ignition
- Unplugged or loose connectors → sensors, injectors, or coils not fully connected
- Wiring harness incompatibility → mismatched harness or connectors between engine and vehicle
- Missing or misaligned sensors → especially crankshaft or camshaft sensors
- Disconnected vacuum lines → causing air leaks and unstable starting conditions
- Fuel lines not properly secured → resulting in no fuel pressure
- Poor grounding → leading to intermittent or complete electrical failure
In real workshop scenarios, these issues often occur during:
- rushed installations
- engine swaps between different models
- reassembly after repairs
These problems are easy to overlook, especially under time pressure—but in many cases, they’re the real reason a new engine won’t start, not the engine itself.
Engine Cranks But Won’t Start: A Closer Look
If the engine is turning over but not starting, it’s time to move beyond general causes and diagnose the system step by step.
Focus on three essentials:
- Fuel → Is fuel actually reaching the cylinders?
- Spark → Is ignition happening at the right time?
- Compression → Is the engine building enough pressure for combustion?
If any one of these is missing, the engine won’t run—even if everything else appears normal.
Practical diagnostic steps:
- Check fuel pressure → confirm the pump and injectors are working
- Test for spark → inspect ignition coils and spark plugs

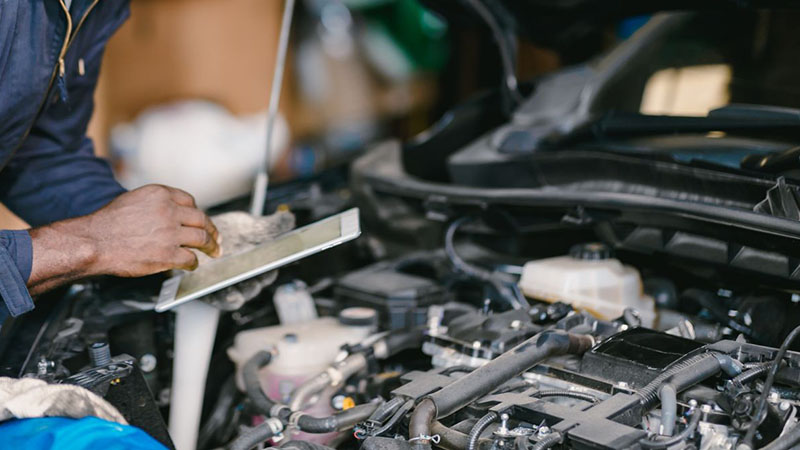

- Scan the ECU → identify sensor or communication issues
This structured approach helps pinpoint the problem quickly and avoids unnecessary part replacements.

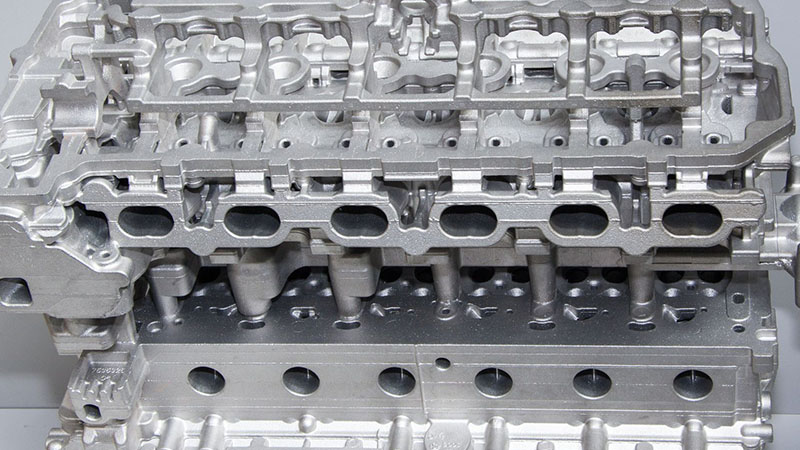

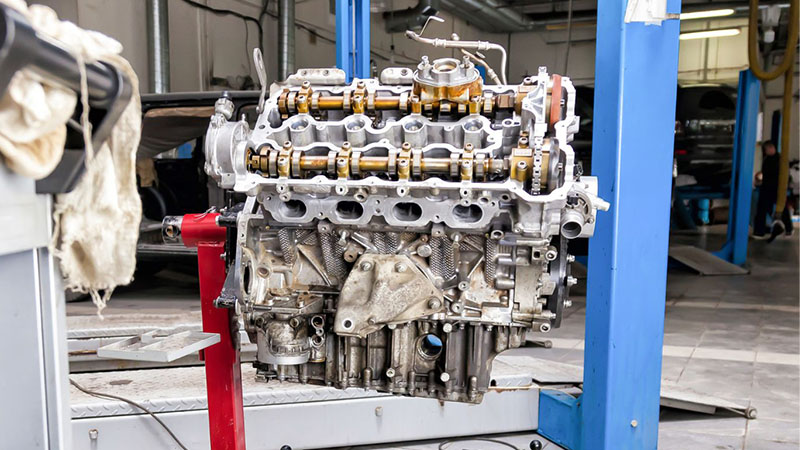

When the Engine Might Actually Be Faulty
While less common, there are cases where the engine itself is the cause of a no-start issue.
Possible scenarios include:
- Internal seizure or mechanical damage → often due to lack of lubrication or debris
- Incorrect assembly (rebuilt units) → improper clearances or timing installation
- Transport damage → hidden issues from poor handling or impact
- Manufacturing defects → rare, but possible in key components
You may also notice signs such as:
- unusual resistance when turning the engine manually
- abnormal noises during cranking
- visible external damage
That said, these cases are far less common than issues with wiring, fuel, or installation.
That’s why a proper diagnosis is essential before assuming the engine is faulty or considering a replacement.
Checklist Before Replacing the Engine
Before considering a return or replacement, go through a basic diagnostic checklist. In many cases, the issue can be resolved without replacing the engine.
Start with the following:
- Confirm battery voltage → low voltage can affect cranking and ECU function
- Check wiring and grounds → look for loose connectors, damaged wires, or poor grounding
- Verify fuel delivery and pressure → ensure the pump, lines, and injectors are working properly
- Test the ignition system (spark) → confirm coils and spark plugs are functioning
- Scan the ECU for error codes → identify sensor or communication issues
- Inspect sensor installation → especially crankshaft and camshaft sensors
If needed, also double-check timing alignment and ECU compatibility.
Taking a few extra minutes to run through this checklist can help pinpoint the issue quickly—saving time, reducing costs, and avoiding unnecessary replacements or disputes.
How to Avoid This Problem When Buying a New Engine
For workshops, distributors, and buyers, prevention is just as important as troubleshooting. A few simple checks upfront can significantly reduce the risk of no-start issues after installation.
Practical tips:
- Confirm engine compatibility → match engine code, ECU, wiring harness, and key sensors with the vehicle

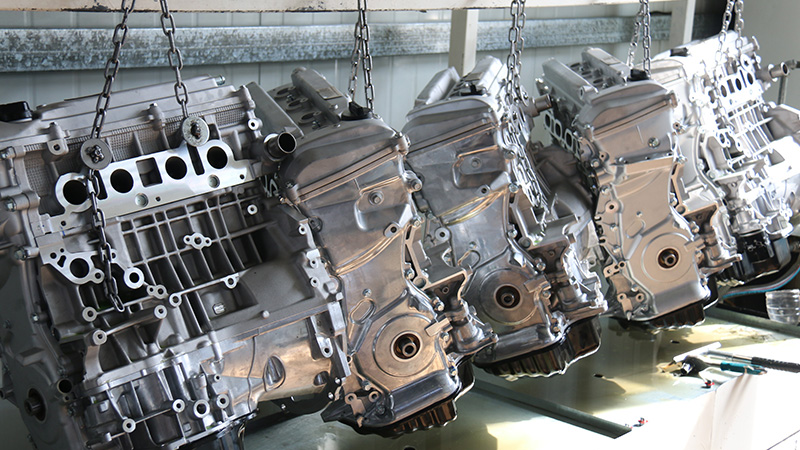

- Choose suppliers that test before shipment → pre-delivery testing helps ensure the engine is ready to run
- Verify what’s included → confirm whether sensors, injectors, wiring, and accessories are complete or need to be transferred
- Review installation requirements → check timing setup, torque specs, and any model-specific procedures
- Ensure proper transport and storage → avoid impact damage, contamination, or moisture exposure before installation
- Inspect before installation → do a quick visual check for damage, missing parts, or loose components
Taking these steps early can prevent costly delays, reduce installation errors, and avoid unnecessary returns.
Choosing a reliable supplier with consistent quality control ultimately makes the biggest difference in minimizing these issues.
FAQ
Why does my engine crank but not start?
This usually means the engine is getting power but lacks fuel, spark, or correct timing. The issue is often related to the fuel system, ignition, or sensors.
Can a bad sensor stop a new engine from starting?
Yes. Sensors like the crankshaft or camshaft position sensor are critical. If they fail or are misaligned, the ECU may prevent the engine from starting.
Can a new engine be faulty?
It’s possible, but uncommon. Most no-start issues are caused by installation or system-related problems rather than the engine itself.
What should I check after installing a new engine?
Start with basics: wiring connections, fuel supply, ignition system, and ECU communication. A full system check is essential before starting the engine.
Should I replace the engine if it won’t start?
Not immediately. Always complete a full diagnosis first. Replacing the engine without identifying the root cause may not solve the problem.
Conclusion
A new engine that won’t start can be frustrating—but in most cases, the solution is simpler than it seems.
By following a step-by-step approach and checking the surrounding systems, you can usually identify the root cause quickly and avoid unnecessary replacements or downtime.
About Us

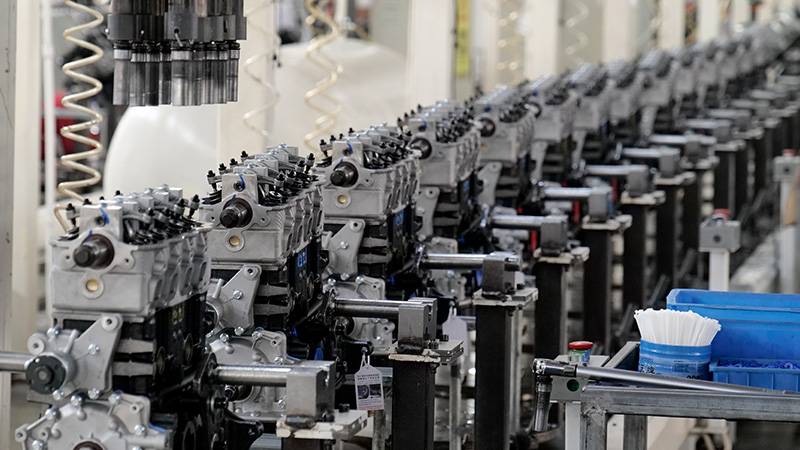

At Woda Auto, we specialize in supplying complete engines, cylinder heads, and crankshafts for bulk buyers worldwide. With over 25 years of manufacturing experience, we focus on consistent quality, reliable performance, and professional export support for distributors, workshops, and importers.
