Renault K4M Cylinder Head: Specs, Common Problems & Buying Guide

The Renault K4M 1.6 16V engine has been one of the most widely used petrol engines across Renault and Dacia models for more than two decades. Reliable, simple, and affordable to maintain, it remains extremely common in emerging markets across Latin America, Africa, Eastern Europe, and the Middle East.

However, like most aluminum-head engines, the K4M cylinder head is also one of the most failure-prone components when overheating occurs.

If you are a workshop owner, engine rebuilder, distributor, or fleet maintenance manager, this guide will walk you through:

• K4M cylinder head specifications

• Vehicle compatibility

• Common failure issues

• Repair vs replacement decisions

• What to look for when sourcing a replacement cylinder head


Let’s start with the basics.

What Is the Renault K4M Engine?

The Renault K4M is a 1.6-liter inline 4-cylinder petrol engine from Renault’s K-Series family. Introduced in the late 1990s, it was developed as the 16-valve evolution of the earlier K7M engine, delivering improved airflow, smoother power delivery, and better overall efficiency.

Over time, the K4M has powered millions of Renault and Dacia vehicles worldwide. Its multi-point injection system, durable cast-iron block, and straightforward mechanical layout have made it especially popular in markets where reliability and low maintenance cost are priorities.

Because the engine combines a cast-iron block with an aluminum cylinder head, proper cooling system maintenance is essential. If overheating occurs, the aluminum head is typically the first component to suffer warping or cracking.

Renault K4M Engine Specifications

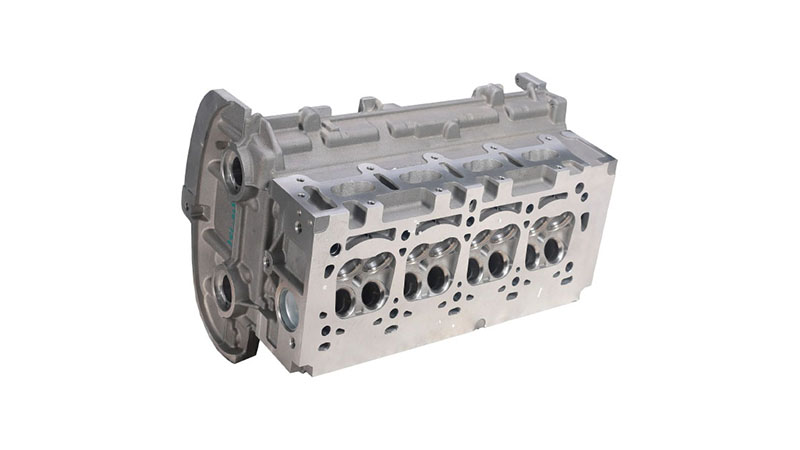

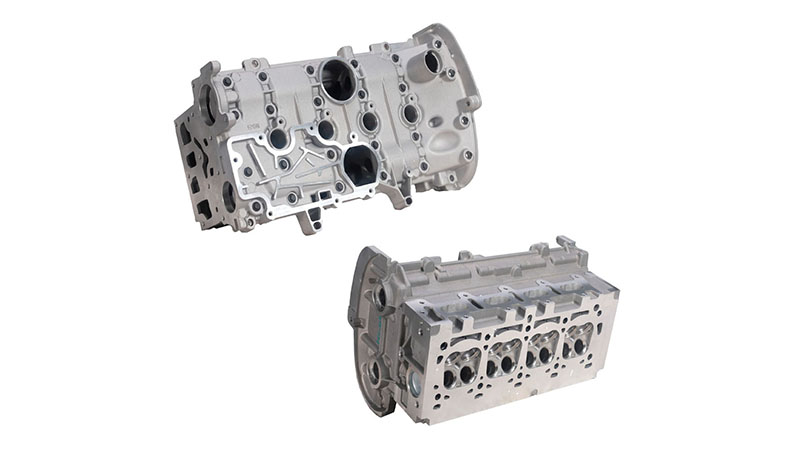

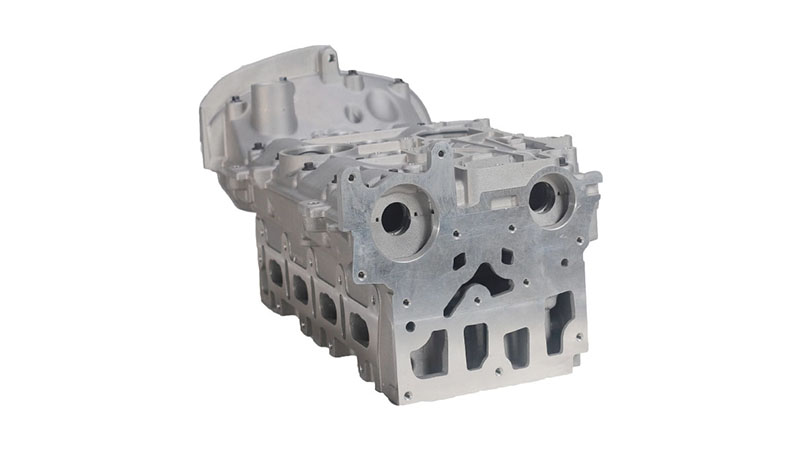

K4M Cylinder Head Specifications

Below are the core technical specifications of the K4M 1.6 16V cylinder head.

K4M Cylinder Head Installation & Torque Specifications

Proper installation is just as important as component quality. Even a high-grade cylinder head can fail prematurely if tightening procedures or surface preparation are incorrect.

Typical Renault Torque Procedure

1. Tighten all head bolts to 20 Nm

2. Tighten to 40 Nm

3. Angle tighten 110°

4. Additional angle tighten 110°


Note: Torque values may vary slightly depending on the specific K4M revision and production year. Always confirm the correct procedure using the official Renault service manual for the engine being serviced.

The K4M uses torque-to-yield (TTY) head bolts, which must be replaced during installation. Reusing old bolts can result in uneven clamping force and repeated head gasket failure.

Installation & Reliability Considerations

Beyond torque values, long-term sealing also depends on:

• Verified flatness of both block and cylinder head

• Proper cleaning of bolt threads and sealing surfaces

• Correct lubrication during tightening

• Use of the appropriate head gasket specification

• Full repair of the cooling system before reassembly


In many cases, repeat failures are caused not by the cylinder head itself, but by reused bolts, poor surface preparation, or unresolved overheating issues.

For workshops and rebuilders, installation precision is just as important as manufacturing quality.

Which Vehicles Use the K4M Engine?

The Renault K4M engine has been widely used in Renault and Dacia passenger vehicles from the late 1990s through the 2010s. It was primarily installed in compact and mid-size models where reliability and cost-effective maintenance were essential.

Over its production life, the K4M appeared in multiple sub-variants (such as K4M 690, 710, 716), depending on market and emission standards.

Common Applications

The K4M 1.6 16V engine is commonly found in:

• Renault Clio II & III

• Renault Megane I & II

• Renault Scenic I & II

• Renault Symbol / Thalia

• Renault Kangoo

• Dacia Logan (1.6 16V versions)

• Dacia Sandero (early 1.6 models)

• Dacia Duster (early petrol variants in select markets)


Due to its long production run and broad global distribution — particularly in Latin America, Eastern Europe, and North Africa — demand for K4M cylinder heads remains consistently strong in the aftermarket.

Common K4M Cylinder Head Problems

The K4M engine is generally reliable, but most serious cylinder head issues are linked to overheating or cooling system neglect. Because the head is made of aluminum, it is more sensitive to heat stress than the cast-iron block.

Below are the most common problems seen in real-world repairs.

1. Overheating and Warped Cylinder Head

This is the most frequent issue.

Common causes:

• Failed thermostat

• Water pump failure

• Radiator blockage

• Cooling fan malfunction

• Coolant leaks


Symptoms may include:

• White exhaust smoke

• Coolant loss

• Engine misfire

• Overheating warning

• Milky oil residue


If the head exceeds allowable flatness limits, resurfacing is not recommended. Replacement is usually the safer long-term solution.

2. Head Gasket Failure

Often a result of repeated overheating or improper installation.

Typical signs:

• Bubbles in the expansion tank

• Coolant pressurization after cold start

• Compression loss

• Coolant entering the combustion chamber


If detected early and no cracks are present, resurfacing may be possible. Severe overheating, however, often leads to hidden casting damage.

3. Cracks Between Valve Seats

High temperatures can cause hairline cracks between intake and exhaust valve seats. Structural cracks affecting sealing or coolant passages generally require full head replacement.

4. Valve Seat Wear

High-mileage engines may develop valve seat recession, particularly in markets with inconsistent fuel quality. This can lead to rough idle, compression loss, and reduced performance.

In most cases, K4M cylinder head failures are not due to design weakness, but to cooling system neglect or improper previous repairs. Identifying the root cause is essential before deciding between machining and replacement.

Is the K4M Engine Reliable?

Overall, the Renault K4M is widely regarded as a durable and dependable 1.6L petrol engine when properly maintained. Its simple mechanical layout and long production history have made it a proven platform across many global markets.

Strengths

• Strong cast-iron block capable of high mileage

• Simple multi-point injection (MPI) system, easy to service

• Balanced DOHC 16-valve design for smooth performance

• Wide availability of spare parts

• Broad use across Renault and Dacia models


With regular maintenance, many K4M engines exceed 250,000 km without major internal failure.

Known Weak Points

• Sensitive to overheating, especially affecting the aluminum cylinder head

• Timing belt requires replacement at recommended intervals

• Cooling system components must be properly maintained


In most cases, serious failures result from neglected maintenance rather than inherent design flaws. When serviced correctly, the K4M remains a reliable and cost-effective engine for everyday use.

Repair vs Replace: When Should You Replace the K4M Cylinder Head?

For rebuilders and workshop owners, choosing between machining and replacement is a key decision affecting both cost and long-term reliability.

Repair May Be Possible If:

• Warpage is within resurfacing tolerance

• No cracks are found during pressure testing

• Valve seats and guides remain serviceable

• Camshaft journals show no scoring

• The head has not been repeatedly machined


In these cases, resurfacing and proper reinstallation may restore performance at a lower short-term cost.

Replacement Is Recommended If:

• Severe or repeated overheating has occurred

• Cracks exist between valve seats or in coolant passages

• Multiple valve seats require replacement

• Camshaft alignment is compromised

• Excessive material has already been removed

• Internal coolant corrosion is present


Once structural integrity is weakened, machining often becomes a temporary solution. Reinstalling a compromised head increases the risk of repeat failure.

Economic Consideration

In many markets, extensive machining and valve work can approach — or exceed — the cost of a new cylinder head. For distributors and fleet operators, replacement often offers:

• Lower long-term risk

• Fewer comeback repairs

• More consistent performance


When reliability is the priority, full replacement is frequently the safer and more economical choice.

K4M Cylinder Head Variants and Differences

The K4M engine was produced in multiple sub-variants throughout its lifecycle, including versions such as K4M 690, 710, 716, 760, and others depending on market and emission standards.

While the core 1.6L DOHC 16V architecture remains consistent, certain details vary between versions.

Common Differences May Include:

• Camshaft profiles and timing calibration

• Intake and exhaust manifold mounting design

• Sensor mounting positions

• EGR configuration (market-dependent)

• Ignition coil layout

• Throttle body compatibility

• Emission-related fittings


Although the base casting is generally similar, small variations in machining and external mounting points can affect direct interchangeability.

What to Confirm Before Ordering

To avoid installation issues, verify:

• The exact engine code stamped on the block

• VIN number (for cross-reference)

• Vehicle year and production market

• Emission specification

• Whether the head is supplied bare or assembled


Incorrect variant matching can result in sensor misalignment, fitment issues, or check engine lights. For workshops and distributors, confirming compatibility in advance helps reduce returns and prevent downtime.

What to Look for When Buying a K4M Cylinder Head

Not all cylinder heads are manufactured to the same standard. For professional buyers, quality and consistency matter more than price alone.

1. Casting Quality

• No internal porosity

• Uniform aluminum density

• Accurate coolant channel formation


2. Pressure Testing

Each cylinder head should be leak-tested before shipment to ensure sealing integrity.

3. Valve Seat Material

Hardened steel inserts are essential to prevent premature wear and maintain long-term compression.

4. Machining Precision

• Surface flatness within OEM tolerance

• Correct camshaft bore alignment

• Accurate valve guide clearance


5. Packaging for Export

Cylinder heads should be:

• Properly protected against impact

• Treated to prevent corrosion

• Individually boxed for secure bulk transport


For distributors and fleet buyers, batch-to-batch consistency and quality control are far more important than simply sourcing the lowest price.

Why Many Distributors Choose Direct Manufacturers

For workshops, reliability is essential. For distributors and importers, supply stability and consistent quality are equally critical.

Working directly with a cylinder head manufacturer provides several long-term advantages:

• Stable bulk supply with predictable lead times

• Consistent production standards across batches

• Full quality control traceability from casting to final machining

• Competitive export pricing by reducing intermediary costs

• Technical support for variant confirmation and installation guidance

• Flexible packaging options for container shipments

• Lower return rates due to standardized manufacturing control


For high-demand engines like the Renault K4M, unreliable sourcing can quickly lead to warranty claims, customer dissatisfaction, and margin loss. A stable manufacturing partner reduces these risks and supports sustainable growth.

For distributors focused on long-term market presence, dependable supply and consistent quality often matter more than short-term price advantages.

FAQ

Is the K4M engine an interference engine?

Yes. If the timing belt fails, valves may contact pistons and damage the cylinder head.

Can a K4M cylinder head be resurfaced?

Yes, but only within machining limits. Excessive resurfacing may affect compression ratio and cam timing.

Does the K4M use hydraulic lifters?

Most variants use hydraulic tappets, meaning no manual valve adjustment is required.

Are K4M and K7M cylinder heads interchangeable?

No. The K7M is an 8-valve engine, while K4M is 16-valve DOHC. They are not compatible.

What causes repeated head gasket failure?

It is usually caused by poor surface preparation, reused head bolts, or unresolved cooling system issues. If the root cause isn’t fixed, the gasket will fail again.

Conclusion

The Renault K4M remains one of the most widely used 1.6L petrol engines across many global markets. While generally reliable, its aluminum cylinder head makes it vulnerable to overheating-related damage, especially in high-mileage or poorly maintained vehicles.

For workshops and rebuilders, knowing when to repair and when to replace the cylinder head is essential to ensure long-term reliability. For distributors and importers, sourcing from a stable, quality-focused manufacturer is equally important to protect margins and reduce return risks.

About Us

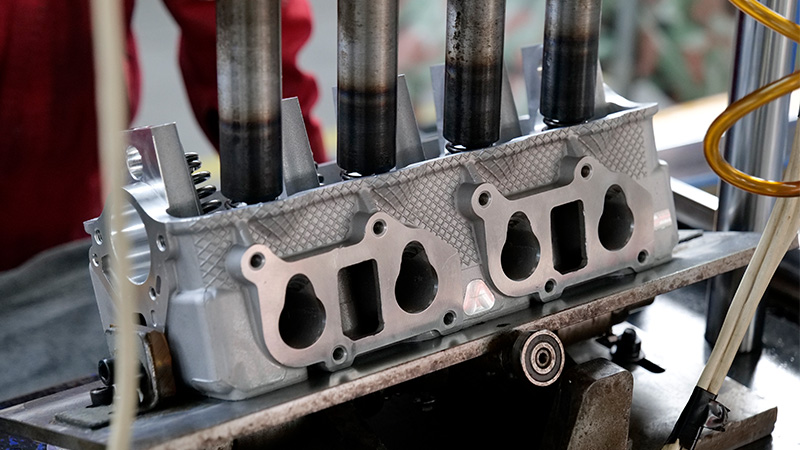

At Woda Auto, we specialize in manufacturing complete engines, cylinder heads, and core engine components for global B2B customers. With over 25 years of industry experience, we focus on OEM-level machining standards, consistent batch production, and dependable export supply for markets across Latin America, Africa, and the Middle East.
