The Toyota 2AZ-FE engine is one of the most widely used and trusted 4-cylinder engines…

The Toyota 2AZ-FE engine is one of the most widely used and trusted 4-cylinder engines in Toyota’s lineup. Known for its smooth performance, solid reliability, and wide application across mid-size vehicles, the 2AZ-FE has earned its place under the hoods of millions of Toyotas around the world.

Whether you’re researching its capabilities or looking to replace one, this guide will walk you through everything you need to know about the 2AZ-FE engine—from specs and common issues to where you can find high-quality replacement units.

Close-up of the front view of a red Toyota RAV4.

What Is the Toyota 2AZ-FE Engine?

The 2AZ-FE is a 2.4-liter inline-4 engine developed by Toyota as part of its AZ engine family. It features Dual Overhead Cams (DOHC), 16 valves, and Toyota’s VVT-i (Variable Valve Timing with intelligence) system.

The “FE” stands for Fuel Economy, meaning it’s designed more for efficiency and smooth operation than high performance.

Introduced in the early 2000s, this engine became a mainstay in many Toyota models thanks to its durability, fuel economy, and relatively low maintenance costs.

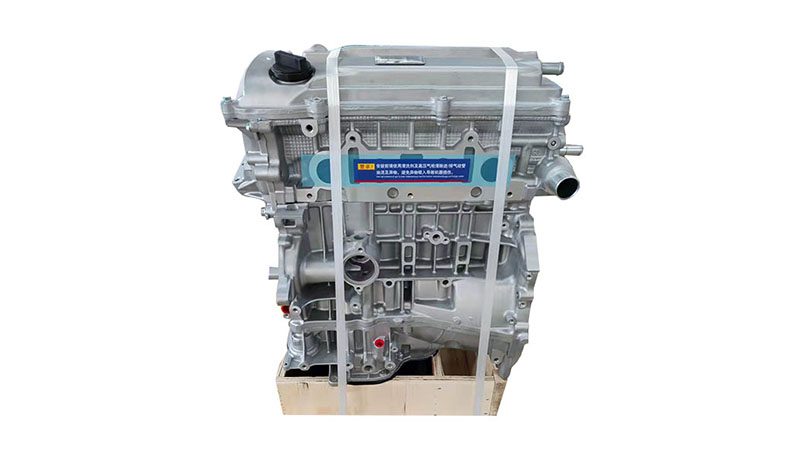

Front view of a bare Toyota 2AZ-FE engine.

What Cars Use the 2AZ-FE Engine?

The 2AZ-FE was widely used across Toyota’s lineup in the 2000s, known for its versatility and reliability. It powered everything from sedans to SUVs and even a few minivans. Here are the main models:

  • Toyota Camry (2002–2011) – A popular engine choice in both the XV30 and XV40 generations, known for smooth daily driving.
  • Toyota RAV4 (2001–2008) – Offered in second and early third generations, providing balanced power and efficiency.
  • Toyota Highlander (2001–2007) – Standard engine in base models of the first-gen Highlander.
  • Toyota Solara (2004–2008) – Used in both coupe and convertible trims, offering a blend of sporty feel and economy.
  • Toyota Previa / Estima – Common in international markets, powering minivans with solid reliability.
  • Scion tC (2005–2010) – Delivered responsive performance and was popular among tuners.
  • Lexus ES240 – Used in select regions like China as a fuel-efficient luxury option.

Its wide application makes the 2AZ-FE easy to service and replace, with excellent parts availability across markets.

Close-up of a Toyota Camry.

Toyota 2AZ-FE Engine Specs

Here’s a quick snapshot of the 2AZ-FE’s technical details:

SpecificationDetails
Engine Code2AZ-FE
Displacement2.4L (2362 cc)
Engine TypeInline-4
Bore x Stroke88.5 mm × 96.0 mm
Compression Ratio9.6:1 to 9.8:1
ValvetrainDOHC, 16 valves with VVT-i
Fuel SystemSequential Multiport Fuel Injection
Max Horsepower~160 hp @ 5600 rpm
Max Torque~220 Nm @ 4000 rpm
Timing MechanismTiming Chain
Fuel TypeGasoline

Performance and Longevity

The 2AZ-FE isn’t built for speed, but it performs reliably and efficiently in everyday driving. With its 2.4L displacement and Toyota’s VVT-i (Variable Valve Timing with intelligence) system, it delivers consistent torque across the rev range, making it responsive in city traffic and stable on the highway.

Drivers often praise its smooth acceleration, quiet operation, and low fuel consumption—especially in mid-size sedans and compact SUVs.

While it may not satisfy performance enthusiasts, the 2AZ-FE shines in what matters most to most drivers: durability and low cost of ownership.

When properly maintained with regular oil changes and cooling system checks, this engine can easily surpass 200,000 to 300,000 km (125,000 to 185,000 miles). Its timing chain design also reduces long-term maintenance costs compared to engines that rely on timing belts.

What Makes the 2AZ-FE Engine Stand Out?

Beyond its wide application and everyday reliability, the Toyota 2AZ-FE engine is well-regarded for several thoughtful design elements that contribute to its long-term durability and ease of maintenance.

One key highlight is its timing chain system, which replaces the traditional timing belt found in many older engines. This reduces the need for scheduled replacements and lowers long-term maintenance costs. The timing chain is engineered to last the lifetime of the engine under normal driving conditions.

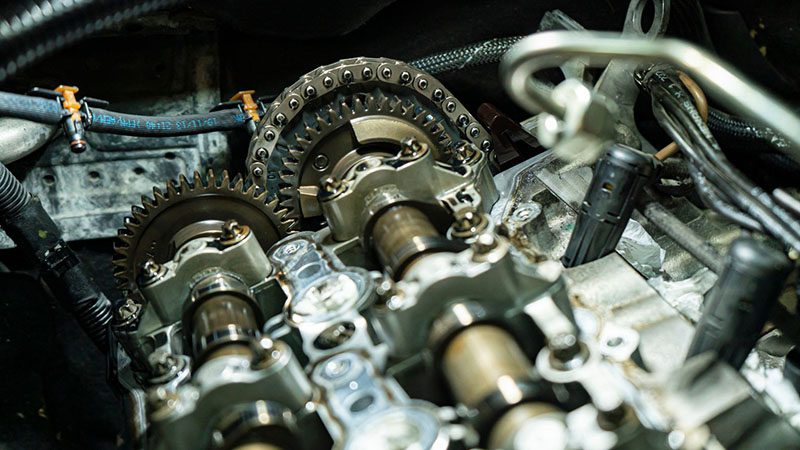

Close-up of a timing chain inside a car engine.

The 2AZ-FE also features an aluminum alloy engine block with cast iron cylinder liners, offering a lightweight design without sacrificing strength. This combination helps the engine manage heat more efficiently while still withstanding long-term wear and tear.

Additionally, its DOHC (Dual Overhead Camshaft) configuration with 16 valves and VVT-i (Variable Valve Timing with intelligence) ensures smooth, optimized performance across various RPM ranges.

For mechanics and engine rebuilders, the 2AZ-FE is relatively easy to work on thanks to its straightforward layout, common parts availability, and clear service documentation. Whether you’re evaluating it for a fleet, a project car, or resale, the 2AZ-FE offers a solid mix of simplicity, reliability, and intelligent design.

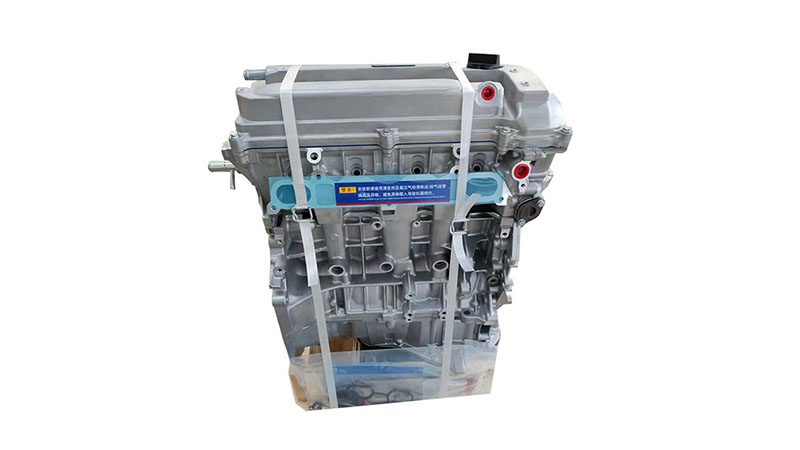

Rear view of a bare Toyota 2AZ-FE engine.

Common 2AZ-FE Engine Problems (And Fixes)

Like many engines from the early 2000s, the Toyota 2AZ-FE has a strong reputation for reliability, but it’s not without its known issues. Several of these problems were well-documented—some even addressed in Toyota’s official technical service bulletins (TSBs) and warranty extensions.

The good news is that most of these issues can be managed or prevented with timely maintenance. Here’s what to watch for:

IssueCauseFix / Prevention
High Oil ConsumptionWorn piston rings and valve stem seals, especially in 2006–2011 models. Toyota acknowledged the issue in TSB #T-SB-0094-11.Monitor oil levels; use high-quality oil; if consumption is excessive, replace pistons and rings per TSB guidance.
Blown Head GasketOverheating and stripped head bolt threads in the aluminum block, mainly in early models (2002–2006).Replace gasket and install thread inserts (e.g., Timesert) if threads are damaged. Keep the cooling system well-maintained.
Rough IdleCarbon buildup in the throttle body or a failing idle air control (IAC) valve.Clean the throttle body and IAC valve during regular maintenance; replace components if necessary.
Water Pump LeaksNatural wear or degraded seals, usually after 100,000 km (60,000 mi).Replace water pump with an OEM-quality part; inspect during routine coolant flushes.
Engine Mount FailureRubber mounts degrade over time, typically after 150,000 km.Replace worn mounts with OEM or reinforced options to reduce vibration and improve ride comfort.

Many of these issues were more common in early production years (2002–2007). Toyota improved component quality in later versions, and many engines on the road today have had updates or repairs done under warranty.

With consistent maintenance and prompt attention to symptoms, the 2AZ-FE remains a reliable, long-lasting, and cost-effective powerplant.

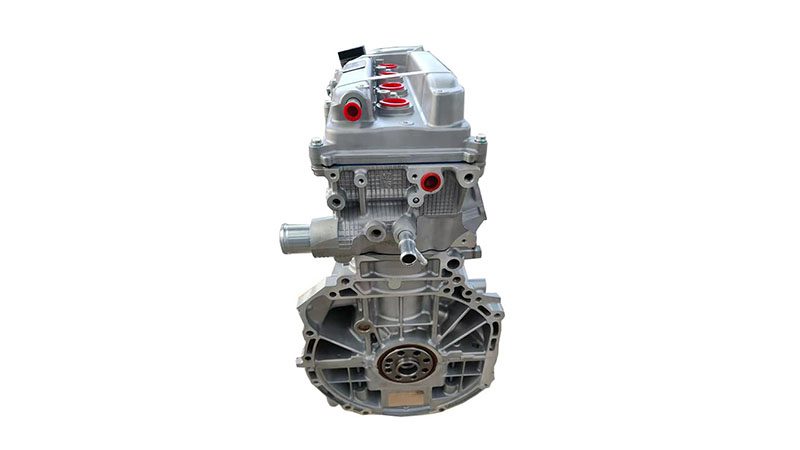

Side view of a bare Toyota 2AZ-FE engine.

FAQs

What car has a 2AZ-FE engine?

The 2AZ-FE was used in popular models like the Toyota Camry (2002–2011), RAV4 (2001–2008), Highlander (2001–2007), Solara, Scion tC, and Lexus ES240 (in select markets). It also appeared in international versions of the Toyota Previa/Estima.

How much horsepower does a 2AZ-FE 2.4 have?

Most 2AZ-FE engines produce between 157–166 hp and around 160 lb-ft of torque, depending on the vehicle and market.

How long do 2AZ-FE engines last?

With proper maintenance, they can last 200,000–300,000 km (125,000–185,000 miles) or more. Many exceed that with no major issues.

What does FE stand for in Toyota?

“FE” means Fuel Economy—signaling an engine tuned for efficiency and smooth, reliable performance.

How strong is a 2AZ engine?

It’s a solid, well-built engine with an aluminum block, timing chain, and VVT-i. While not high-performance, it’s highly dependable for everyday driving and light-duty use.

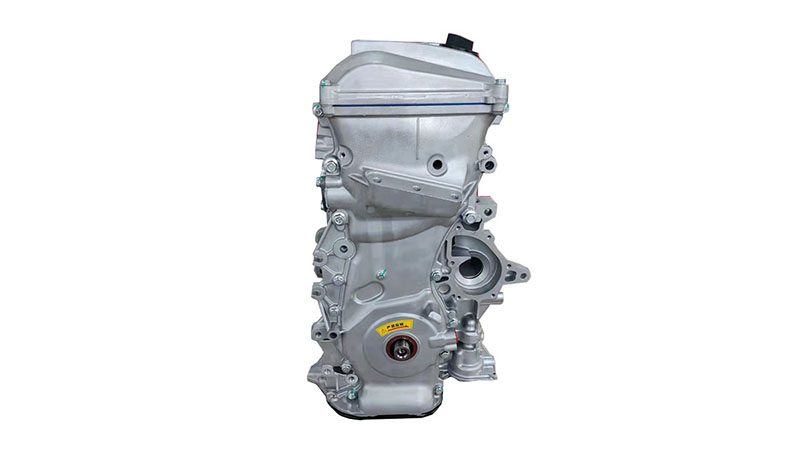

Opposite side view of a bare Toyota 2AZ-FE engine.

Final Thoughts

The Toyota 2AZ-FE engine has proven itself over the years as a dependable, fuel-efficient powerplant used in many of Toyota’s most popular vehicles. With smart engineering choices—like a durable timing chain, an aluminum block with cast iron liners, and VVT-i technology—it strikes a well-rounded balance between performance, longevity, and low maintenance.

Looking for a 2AZ-FE Engine for Sale?

If you’re in the market for a reliable replacement 2AZ-FE engine, you’re in the right place. At Nanjing Woda Auto Technology Co., Ltd., we specialize in supplying high-quality, brand-new Toyota engines for B2B customers around the world.

Ready to place an order or check availability?
Contact us today—our team will help you find the right 2AZ-FE engine quickly and efficiently.

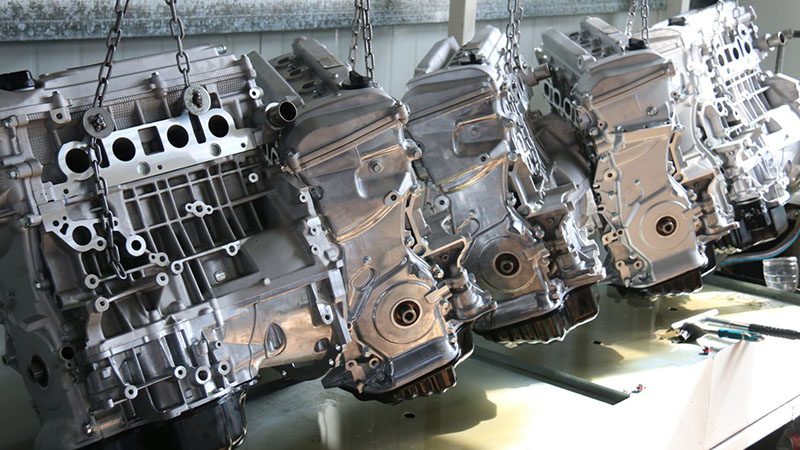

Brand-new auto engines assembled on the production line at Nanjing Woda Auto Technology Co., Ltd.’s factory.
