Toyota Hiace Engine Models: Complete Guide (Diesel & Petrol)

The Toyota Hiace has been a workhorse van across continents for decades. Whether you’re running a fleet, importing engines, or restoring a vintage model, knowing the engine options—past and present—is critical.

In this guide, we’ll walk through all the major Toyota Hiace engine models (diesel and petrol), compare their specs, note common reliability issues, and offer tips for sourcing a dependable engine for your region.

Hiace Generations & Engine Families

To understand engine options properly, it helps to frame them by Hiace generation and engine family / code.

Toyota’s naming convention also helps: “KD”, “KZ”, “L”, “TR”, “GD” etc. are engine families. Within them are variants (e.g. 1KD-FTV, 2KD-FTV) which change displacement, internals, or emissions tuning.

For example, Toyota lists for Hiace engine options: 2TR-FE, 2KD-FTV, 1KD-FTV, and 5L-E in many markets.

Below, we’ll step through the major diesel engine families and petrol options, their specs, strengths & drawbacks.

Diesel Engines for Toyota Hiace

Diesel engines are the backbone of Hiace usage in many markets (especially where diesel is cheaper, or vans carry heavy loads). Here are the main ones to know.

1. The L-Series Diesels: 2L, 3L, and 5L

The L-series is an older family of rugged, simple, low-tech diesels that have been used in many Toyota vans and trucks.

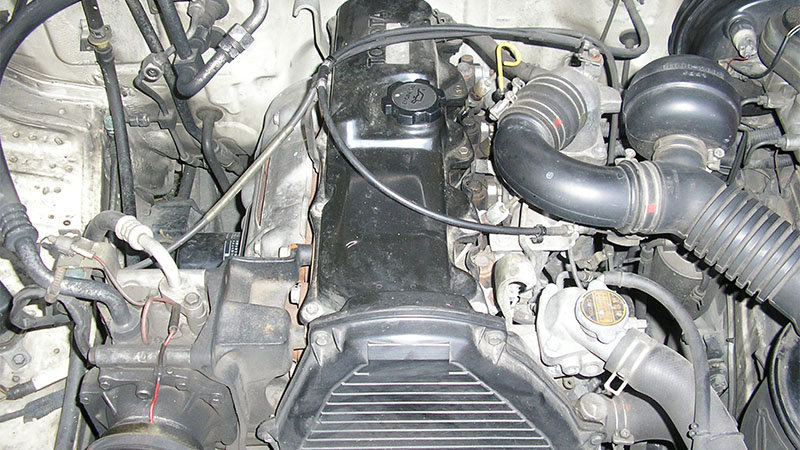

• 2L — ~ 2.4L displacement (2,446 cc).

• 3L — ~ 2.8L, naturally aspirated.

• 5L / 5L-E — ~ 2,985 cc; “E” variant is EFI / electronic fuel injection.


These are widely chosen for simplicity, ease of repair, and tolerance for lower-spec fuels. A Hiace with L-series diesel is typically more forgiving in rough conditions.

⚠️ Drawback: Lower power output and efficiency compared to more modern diesel engines.

2. KZ Family (1KZ)

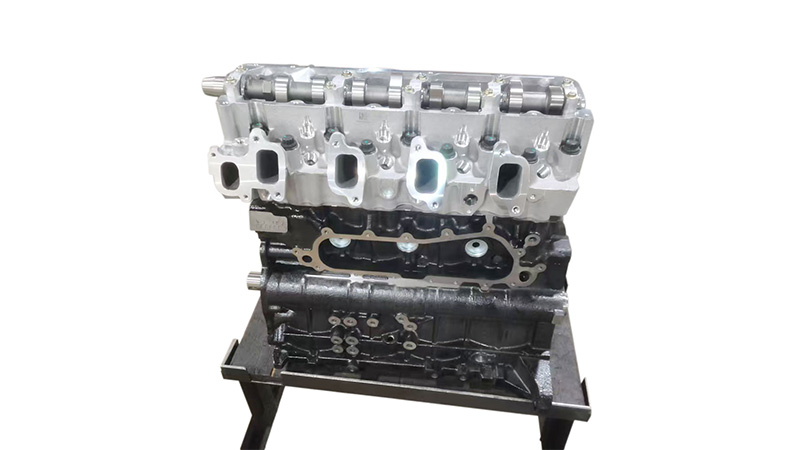

The KZ family bridges older mechanical / indirect injection diesels and later common-rail tech. 1KZ-TE (turbocharged) is a frequent engine for late-90s to early 2000 Hiace / other Toyota models.

It’s a bit of a transitional engine: more power and torque than L-series, but not as refined or efficient as common-rail KD engines. In many markets, it was used before the shift to KD. (Note: reliable sources often show 1KZ in Hilux / Prado usage rather than pure Hiace, but some Hiace conversions/imports use it.)

While not factory-standard in most Hiace markets, the 1KZ-TE appears in some regional or swapped units.

3. KD Series: 2KD-FTV & 1KD-FTV (Common-Rail Diesels)

The KD family is extremely important in modern Hiace usage. These are common-rail turbo diesels with better efficiency and emissions control.

• 2KD-FTV (2,494 cc)

  • One spec example: 88 kW (118 hp) @ 3,600 rpm, torque ~325 Nm at 2,000 rpm (for intercooled version)

  • In UNICEF spec for 15-seater Hiace: 75 kW @ 3,600 rpm, torque 260 Nm @ 2,000 rpm

  • Widely used in Hiace, other Toyota vans/trucks.

  • Benefits: Good balance of power, fuel economy, reliability in many markets.

  • Common issues: injector-related wear, carbon buildup, turbo issues in poor maintenance setups.

• 1KD-FTV (3,000 cc)

  • A stronger KD variant. The common-rail injection pressure ranges around 30–160 MPa.

  • Uses an eight-hole injector, VGT turbo (variable geometry).

  • Frequently used in newer Hiace and many modern Toyota vans & SUVs.

  • More torque and better performance under load compared to 2KD in many scenarios.

  • Drawbacks: higher cost, more sensitive to fuel quality and maintenance.


Toyota’s spec sheet includes 1KD-FTV among Hiace options.

4. GD Series: 1GD-FTV

The GD family is Toyota’s newer generation of diesels. The 1GD-FTV is a ~2,755 cc common-rail turbo diesel.

• Bore × Stroke: 92 × 103.6 mm, compression ~15.6:1.

• Power & torque:

  • In some configurations, 150 kW (for automatic) and 500 Nm (auto) torque in newer models.

  • In Hiace-spec, often detuned: ~150 PS (≈ 110 kW) with 300 Nm in many markets.

• This engine is being adopted in recent Hiace models (post-2017/2019) in many markets.


Advantages: Better emissions, improved thermal efficiency, modern tech.
Challenges: Cost, high-pressure injection sensitivity, parts availability in remote markets.

Petrol Engines for Hiace

Though diesels dominate in many markets, petrol (gasoline) engines have been offered, especially in markets where diesel is restricted or less economical.

1. Older Petrol Engines: 2RZ-E, 1RZ-E, etc.

Earlier Hiace models in certain regions used Toyota’s RZ family (e.g. 2RZ-E) for petrol versions. These are simpler, naturally aspirated engines with decent reliability in moderate use.

2. Modern Petrols: 2TR-FE, 1TR-FE

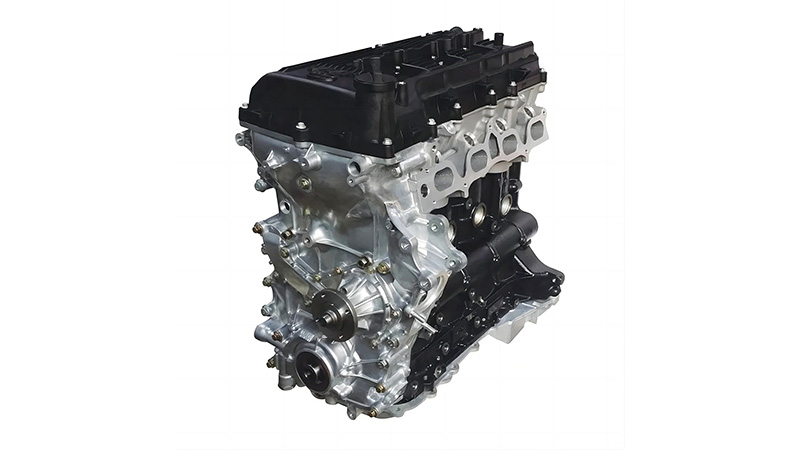

In many countries, newer Hiace variants (especially passenger versions) are offered with 2TR-FE or 1TR-FE petrol engines.

• Example: In Malaysia / general export, 2.7L 2TR-FE petrol is common.

• Specs: 2.7L 2TR-FE: ~106 kW (≈ 141 hp) and typical torque ~244 Nm (in many markets)

• These are used for passenger versions, where noise, smoothness, and emissions matter more than towing power.

Side-by-Side Spec Comparison

Here’s a simplified comparative table for key engines (typical market tuning):

⚠️ Note: These figures are representative and may vary by market, tuning, and emission regulations.

Common Problems & Reliability Tips

Every engine has its strengths and weakness. Here are common issues you should watch out for (especially in import / used engine contexts):

Reddit users also note the appeal of L-series diesels for their mechanical simplicity:

“The main pro to the 3L and 5L is the absolute simplicity and reliability. They are a very basic naturally aspirated diesel. Mechanical injectors, no common rail. No ECU. No complicated engine sensors.”

When sourcing an engine, always:

• Request compression test reports

• Check for leaks (oil, coolant)

• Ask about turbo health (if applicable)

• Confirm engine serial / code matches what your vehicle supports

• Insist on at least a short performance test / guarantee


Choosing the Right Engine for Your Region & Usage

Here are considerations to help pick the best engine for your Hiace application:

1. Fuel quality & availability

In regions with lower-grade diesel or variable fuel quality, simpler engines (e.g. older KD, L-series) often survive better.

2. Load & usage

Heavy loads, steep terrain, long-distance runs favor high torque engines (1KD, 1GD). For light passenger commuting, petrol or lower power diesel may suffice.

3. Parts & service availability

A modern engine is useless if you can’t find injectors, ECUs, or turbo spares. Always match to markets where your engine business operates.

4. Emission regulations

Some countries ban older engines or impose restrictions. Use engines that meet local emission norms (Euro standards, etc.)

5. Resale / flexibility

A more versatile engine (e.g. 1KD / GD) can appeal in multiple markets.

For example, African fleets often favor 5L-E or 1KD-FTV for durability, while Southeast Asian buyers prefer 2KD-FTV or 2TR-FE for parts availability.

Tips for Buying a Hiace Engine

When sourcing Hiace engines, here’s a checklist that helps you secure value and reliability:

• Know exactly which engine code your buyer’s Hiace uses

• Ask for full engine data (serial number, variant)

• Check compression and leak-down test results

• Reveal any known repair history (e.g. rebuilt head, replaced turbo)

• Prefer engines with warranty / return policy

• Consider “long block” vs “full engine” — in many cases long blocks are easier to ship

• Work with suppliers who can provide photos, video of test run, torque specs

• Use secure escrow or trade protection where possible


When you present an engine to a buyer, attach a clean spec sheet and history — that boosts trust and helps differentiate you from lower-quality sellers.

FAQ — Common Buyer Questions

Which Toyota Hiace engine is best?

It depends on application. For heavy duty and long-distance use, 1KD-FTV is often preferred. For markets with limited parts, a 2KD or even L-series may be more reliable.

Is the 1KD engine reliable?

Yes — the 1KD-FTV is widely used, and when maintained properly (good fuel, injectors, cooling) it performs well. But it is more sensitive to poor fuel or injector issues than older non-common-rail diesels.

Can I swap a 2KD into a van originally fitted with 1KD?

In many cases yes (same family), but you’ll need to align ECU wiring, mounts, turbo plumbing, and check emission controls.

What is the fuel consumption of Hiace diesel engines?

Recent Hiace LWB models claim ~7.4–8.4 L/100 km on the combined cycle depending on variant; 7.5 L/100 km is a common figure quoted for manual LWB in Australia (CarExpert). Actual consumption varies with load, terrain, driving style, and maintenance.

Conclusion

Understanding Toyota Hiace engine models is crucial for making smart import, repair, or sale decisions. From the rugged simplicity of the L-series to the power and efficiency of modern KD and GD diesels, each engine has its place.

At Woda Auto, we specialize in tested, export-ready Toyota Hiace engines with full documentation, performance checks, and warranty support. If you need a reliable 1KD, 2KD, GD, or even older L-series Hiace engine, contact us today — we’ll match the right engine to your buyer’s market and ensure you purchase with confidence.
