The Toyota Hilux is one of the world’s most popular pickup trucks, trusted across Asia, Oceania, Europe, Africa, and the Middle East. Known for its durability and versatility, the Hilux has been fitted with a wide range of engines over the decades to meet different fuel types, emission standards, and market demands.
This guide covers the most common Toyota Hilux engine models from the 5th generation onward, with a focus on both diesel and petrol options. (Note: Very early or rare variants are not included.)
Toyota Hilux Diesel Engines: The Backbone of Global Markets
Diesel power has long been the backbone of the Hilux in many regions, especially Southeast Asia, Australia, Europe, Africa, and the Middle East. These engines are praised for their torque, reliability, and efficiency.
Small-Displacement Diesel Engines
- 1KD-FTV (3.0L, I4, turbo, D-4D common rail)
Used from the 6th to 8th generation (2004–2015). A legendary engine, well known for its reliability and strong low-end torque. - 2GD-FTV (2.4L, I4, turbo, D-4D common rail)
Introduced with the facelifted 8th generation (2015–present). Replaced the 1KD, delivering better fuel economy and torque at low revs. Now the primary diesel engine in most global markets. - 2L / 2L-TE (2.4L, I4, turbo optional, early EFI)
Found in 4th and 5th generations (late 1980s–1990s). A simple, durable design, serving as a stepping stone to later models. - 3L (2.8L, I4, naturally aspirated)
Produced in the same era as the 2L series. Renowned for reliability but lacking power by today’s standards.
Medium & Large-Displacement Diesel Engines
- 1GD-FTV (2.8L, I4, turbo, D-4D common rail)
The current flagship diesel (2015–present). Offers significantly more power than the 2GD and is popular in high-spec Hilux models, especially in Australia. - 5L / 5L-E (3.0L, I4, NA / EFI)
Used in the 5th to 6th generation (1990s–2000s). An enlarged evolution of the 3L, with the same reputation for toughness. - 1KZ-TE (3.0L, I4, turbo, EFI)
A strong option in the 1990s–2000s, considered the predecessor to the 1KD. At the time, it was a performance-oriented diesel choice.
Toyota Hilux Petrol Engines: Power for Select Markets
Petrol engines are less common overall but remain important in markets where diesel is less popular or fuel quality is inconsistent, such as North America, the Middle East, and certain parts of Africa.
Core Petrol Engines

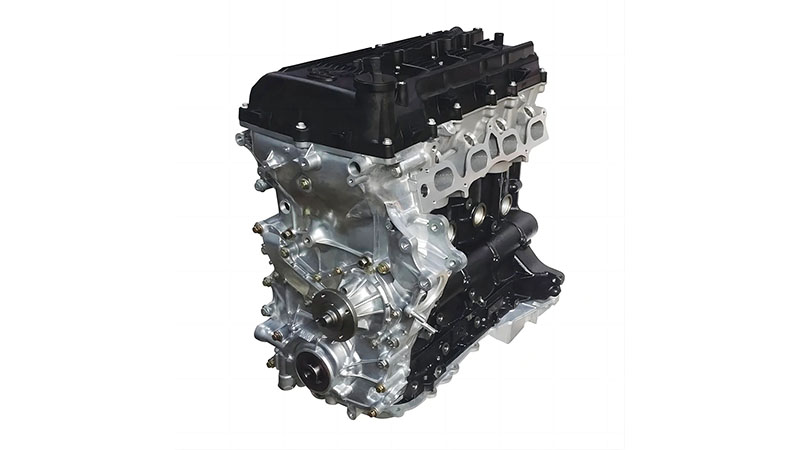

- 2TR-FE (2.7L, I4, Dual VVT-i)
In production from the 7th generation onward (2004–present in some markets). Known for extreme durability, though fuel efficiency is average. This engine continues to serve as the backbone petrol option in many countries.
High-Performance V6 and V8 Options
- 1GR-FE (4.0L, V6, Dual VVT-i)
Available in the 7th and 8th generations, especially in the Middle East and Australia. A smooth, powerful V6 often fitted to high-end trims like the Hilux SR5. - 2UZ-FE (4.7L, V8, VVT-i)
A rare Hilux variant from the 7th generation, limited mostly to Middle Eastern markets. Offers impressive power but was never widely distributed. - 3RZ-FE (2.7L, I4)
The predecessor to the 2TR-FE, fitted to 5th–6th generations (1990s–2000s). - 5VZ-FE (3.4L, V6)
Featured in the 5th generation during the 1990s–2000s. A strong V6 petrol choice for its era.
Summary Table: Mainstream Toyota Hilux Engines
| Fuel Type | Engine Code | Displacement | Notes |
|---|---|---|---|
| Diesel | 2GD-FTV | 2.4L | Current global workhorse, fuel-efficient |
| Diesel | 1GD-FTV | 2.8L | Flagship diesel, high performance |
| Diesel | 1KD-FTV | 3.0L | Previous-generation legend |
| Petrol | 2TR-FE | 2.7L | Durable core petrol engine |
| Petrol | 1GR-FE | 4.0L V6 | High-performance petrol option |
Key Takeaways
- Regional differences: Engine options vary greatly by market. Europe mainly relies on the 2.4L and 2.8L diesels, while the Middle East favors the 2.7L I4 and 4.0L V6 petrol versions.
- Emission standards: Toyota has continuously updated Hilux engines to meet stricter regulations (Euro 6/7), sometimes adding SCR systems while keeping engine codes unchanged.
- Historic models: If you’re searching for older Hilux engines (1980s–1990s), focus on specific years, as there were many unique variants.
FAQ
What are the most common Toyota Hilux engine models?
The Toyota Hilux features popular diesel engines like the 2.4L 2GD‑FTV and 2.8L 1GD‑FTV, along with petrol engines such as the 2TR‑FE and 1GR‑FE.
Which Toyota Hilux engine is the most reliable?
The 1KD‑FTV diesel and 3RZ‑FE petrol engines are known for their durability and long‑lasting performance.
What are the benefits of a Toyota Hilux diesel engine?
Hilux diesel engines, like the 2.8L 1GD‑FTV, offer excellent torque, fuel efficiency, and towing capacity, making them ideal for heavy-duty tasks.
Can the Toyota Hilux engine handle towing and heavy loads?
Yes, Hilux diesel engines are designed for heavy‑duty use, offering robust towing capacity and excellent performance under load.
Conclusion
The Toyota Hilux owes much of its global success to the variety of engines it has offered over the years. From rugged diesel legends like the 1KD and 1GD to dependable petrol options such as the 2TR-FE and powerful 1GR-FE V6, each Hilux engine reflects Toyota’s balance of durability, performance, and efficiency.
Whether your priority is torque for heavy-duty use, fuel economy for long-distance driving, or smooth petrol performance, there’s a Hilux engine suited to your needs.
