If you’ve ever looked at an engine spec sheet, you’ve probably seen two numbers listed side by side: horsepower and torque. Most people know horsepower means “how powerful the engine is,” but torque? That one usually creates confusion.
Some say torque is what you “feel” when you accelerate. Others say it only matters for towing. And on Reddit or car forums, the debate never ends.
The truth is simple: torque is the muscle of your engine. And once you understand what torque really does, every engine spec sheet suddenly becomes much easier to read.
Let’s break it down in a clear, real-world way.
What Is Torque in an Engine?
Torque is the twisting force an engine produces as it turns the crankshaft.
That’s it.
Not magic. Not complicated. Just rotational force.
A good way to visualize it:
Imagine using a wrench to loosen a tight bolt.
- The harder you push → the more torque you apply.
- A longer wrench → gives you more leverage, also increasing torque.
An engine works the same way — except instead of your arm pushing a wrench, combustion pushes the pistons, and the pistons rotate the crankshaft.
Torque is measured in:
- Nm (Newton-meters) in most countries
- lb-ft (pound-feet) in the U.S.
So when an engine makes 300 Nm, that means it can twist the crankshaft with 300 Newton-meters of force.
How Does an Engine Actually Produce Torque?

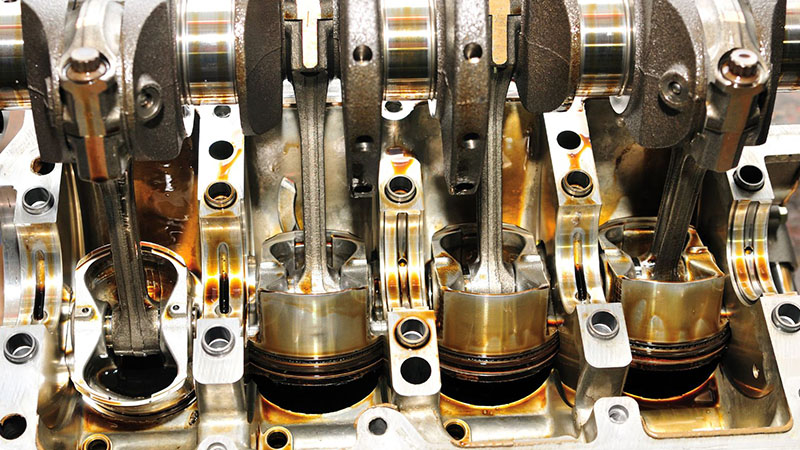

Every bit of torque starts inside the cylinder.
- Air and fuel enter the combustion chamber.
- The spark ignites the mixture.
- The explosion pushes the piston downward.
- The piston rotates the crankshaft through the connecting rod.
- The crankshaft’s rotation = torque.
The more force pushing down the piston → the more torque the engine produces.
This is why:
- Bigger engines (more displacement) generally make more torque.
- Turbocharged engines make strong torque because they push more air into the cylinders.
- Diesel engines produce huge low-RPM torque due to high compression.
Torque vs Horsepower: What’s the Real Difference?
Torque and horsepower are related, but they aren’t the same.
The simplest way to remember:
- Torque = the force
- Horsepower = how quickly the engine can use that force
Mathematically, they are tied together by this formula:
Horsepower = (Torque × RPM) ÷ 5252
You don’t need to memorize it — but it explains something important:
👉 Torque makes the car move.
👉 Horsepower determines how fast it can keep moving.
Examples:
- A truck that tows heavy loads needs high torque at low RPM.
- A sports car needs high horsepower at high RPM for top speed.
- A daily commuter car feels “quick” if it has good mid-range torque.
This is why torque matters more than horsepower in everyday driving.
What Is a Torque Curve (and Why It Matters More Than Peak Numbers)
Peak torque (like “400 Nm”) doesn’t tell the whole story.
What matters more is where in the RPM range the engine produces that torque.
Low-end torque
Produced at 1,200–2,000 RPM
- Diesels: like Toyota 1HZ, Isuzu 4JJ1
- Good for towing, hill climbing, off-road driving
Mid-range torque
Produced at 2,000–4,000 RPM
- Most modern turbo gasoline engines (Hyundai G4FD, VW EA888)
- Perfect for city driving and overtaking
High-RPM torque
Produced above 5,000 RPM
- High-performance engines (Honda K24, 2JZ-GE)
- Feels strong at high speeds
A “flat” torque curve — where torque stays high across a wide RPM band — makes the car easier and more pleasant to drive.
What Torque Means for Real-World Driving
Torque isn’t just a technical term — it’s something you feel every time you drive.
✔️ Faster, More Confident Acceleration
Torque is the force that gets the vehicle moving.
Engines with strong low-RPM torque launch more quickly, merge onto highways with ease, and feel more responsive when you overtake or carry passengers.
✔️ Better Towing Capability
If you tow trailers or haul heavy loads, torque is the spec that matters most.
More torque means smoother takeoff with a loaded vehicle, less stress on the powertrain, and the ability to keep speed on inclines without struggling.
✔️ Easier Hill Climbing
High torque helps a vehicle maintain momentum on steep roads without constant downshifts or high revs.
The engine feels steady, controlled, and far less strained.
✔️ Improved Off-Road Control
Off-road driving requires slow, steady power.
Low-end torque keeps the wheels turning with enough force to crawl through mud, sand, rocks, and uneven terrain without stalling.
✔️ Smoother City Driving
In daily traffic, good mid-range torque makes the car feel relaxed and responsive.
You don’t need to rev hard, and the vehicle accelerates smoothly between 30–60 km/h (20–40 mph), where most city driving happens.
What Is Considered “Good Torque” in a Car?
There’s no universal “best” torque figure — it really depends on the vehicle’s size, purpose, and engine design. Here’s a simple breakdown to help put the numbers into context:
Small Cars (1.5–2.0L engines)
Typical torque: 100–180 Nm
Most small naturally aspirated engines fall into this range.
Turbocharged versions can reach 220–260 Nm, which makes them feel much quicker in city driving even with a smaller displacement.
Compact SUVs / Family Cars
Typical torque: 220–350 Nm
This range offers enough pulling power for daily use, highway driving, and light cargo loads. Many modern 1.5–2.0L turbos sit comfortably here.
Pickup Trucks and 4×4 Vehicles
Typical torque: 400–600 Nm (especially diesel engines)
These vehicles need strong low-end torque for towing, climbing hills, and off-road use. Diesel models excel because they deliver this torque early, usually below 2,000 RPM.
Heavy-Duty Work Trucks and Commercial Vehicles
Typical torque: 600–900+ Nm
Large diesel engines in vans, buses, and work trucks often exceed 800–900 Nm to handle frequent heavy loads and extended operating hours.
Why the Number Alone Isn’t Enough
A “good” torque figure is more than just a peak value. What truly matters is:
- How early the torque arrives (low-end torque feels stronger and more usable)
- How wide the torque band is (a broad torque curve makes driving smoother)
- How consistently the engine delivers torque across RPM
An engine with a modest peak torque but a flat, wide torque curve often performs better in real-world driving than one with a high number that only appears for a brief moment at high RPM.
What Determines an Engine’s Torque Output?
Several engineering factors influence how much torque an engine produces and where that torque appears in the RPM range:
1. Engine Displacement
Larger engines move more air and fuel per cycle, creating a stronger push on the pistons and naturally delivering higher low-end torque.
2. Turbocharging or Supercharging
Forced induction packs extra air into the cylinders, allowing more fuel to burn. This significantly boosts torque, especially in the low and mid RPM range.
3. Compression Ratio
Higher compression creates a more forceful combustion event. Diesel engines excel here, which is why they produce strong torque at low RPM.
4. Stroke Length
Long-stroke engines generate more leverage on the crankshaft, improving low-end torque and steady pulling power.
5. Intake and Exhaust Design
Efficient airflow helps the engine breathe better. A smooth, unrestricted intake and exhaust path improves combustion and increases torque.
6. Camshaft Profile and Valve Timing
Cam design and variable valve timing systems control how air enters the engine. Optimized timing improves torque across different RPM bands.
7. ECU Tuning
Modern engines rely heavily on software. Adjustments to fuel delivery, ignition timing, and boost pressure can noticeably shift and increase the torque curve.
Top 10 High-Torque Engines You Should Know
Many engines have earned a reputation for producing strong, reliable torque. Below are ten well-known examples, along with verified factory torque figures that show how different designs deliver real-world pulling power.
| No. | Engine | Peak Torque (Factory) | RPM | Key Strength / Notes |
|---|---|---|---|---|
| 1 | Cummins 6BT 5.9L (12-valve) | ~583 Nm (430 lb-ft) | 1,600 | Exceptional low-end torque, extremely durable, ideal for heavy towing. |
| 2 | Cummins 6.7L Turbo Diesel | up to 1,356 Nm (1,000 lb-ft) | varies | Benchmark torque for modern diesel pickups. |
| 3 | Ford Power Stroke 7.3L Diesel | ~710 Nm (525 lb-ft) | 1,600 | Known for reliability and a broad, usable torque curve. |
| 4 | GM Duramax 6.6L (various generations) | 705–1,234 Nm (520–910 lb-ft) | varies | Smooth mid-range torque; heavily used in HD trucks. |
| 5 | Toyota 1HD-T (4.2L Turbo Diesel) | ~361 Nm (266 lb-ft) | 1,400 | Early torque delivery; excellent off-road performance. |
| 6 | Toyota 1HD-FT (4.2L Intercooled Diesel) | ~380 Nm (280 lb-ft) | 2,500 | Improved airflow and smoother torque curve. |
| 7 | Mercedes OM617 (3.0L Diesel) | 172–226 Nm (127–167 lb-ft) | varies | Modest torque but unmatched longevity and consistency. |
| 8 | Mercedes OM606 (3.0L Diesel) | ~330 Nm (243 lb-ft) | varies | Smooth torque delivery and strong tuning potential. |
| 9 | Isuzu 4JJ1 (3.0L Turbo Diesel) | 360–430 Nm (265–317 lb-ft) | varies | Strong low-RPM torque and commercial-grade durability. |
| 10 | Volkswagen 1.9 TDI (ALH) | 210 Nm (155 lb-ft) | 1,900 | Small but torquey; great daily drivability and efficiency. |
Common Misunderstandings About Torque
Torque is often misunderstood. Here are a few common myths — and why they’re not true.
❌ “Torque only matters for trucks.”
Small cars benefit too. Strong low- and mid-range torque makes city driving smoother, reduces gear changes, and improves responsiveness at everyday speeds.
❌ “More torque always means faster acceleration.”
Acceleration depends on more than torque alone. Weight, gearing, traction, and how wide the torque band is all play major roles. A lighter car with less torque can still be quicker.
❌ “Diesel engines are slow.”
Diesels produce high torque at very low RPM, which is exactly where most daily driving happens. That’s why they excel in towing, hill climbing, and off-road use.
❌ “A higher peak torque number is always better.”
A broad, consistent torque curve matters more than a single high peak. Engines that deliver usable torque across a wide RPM range feel stronger and easier to drive.
Conclusion
If horsepower tells you how fast an engine can work, torque tells you how hard it can pull. Torque is the force that gets a vehicle moving, while horsepower helps it build and maintain speed. Once you understand how torque works—and why it matters across different driving conditions—choosing the right engine for daily use, heavy-duty work, or performance becomes much simpler.
About Us

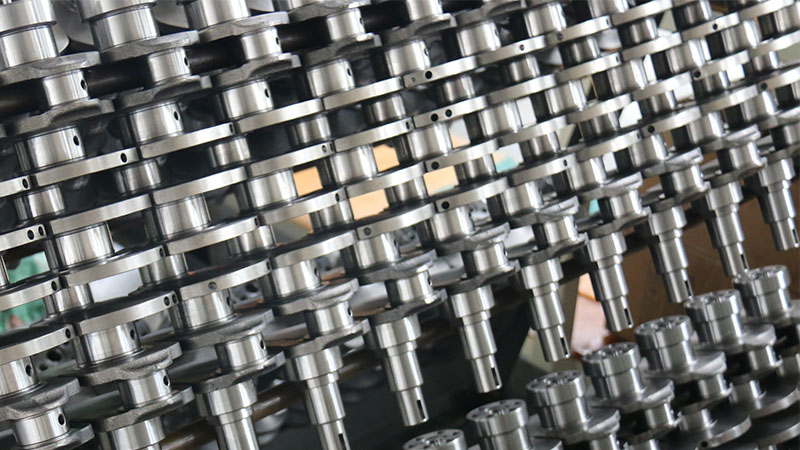

Woda Auto is a trusted manufacturer and supplier of OEM-grade engines, cylinder heads, crankshafts, and other core engine components. With over 25 years of experience, we support global distributors, workshops, and wholesalers with reliable parts for leading brands such as Toyota, Hyundai, Nissan, Isuzu, Mitsubishi, and more.
