The G4KD engine is a widely used Hyundai-Kia gasoline engine found in models such as the Hyundai Sonata and ix35/Tucson and the Kia Sportage, Cerato/Forte and Optima. Depending on the vehicle and market, output is generally around 145–165 hp.
As these engines age, buyers and repair professionals increasingly need to identify the correct replacement unit and understand common issues such as cylinder scoring, piston noise and oil consumption. This guide covers the G4KD’s specifications, applications, reliability, common problems and replacement considerations.
What Is the G4KD Engine?
The G4KD is a 1,998 cc naturally aspirated inline-four gasoline engine from Hyundai and Kia’s Theta II family. It uses an aluminum block and cylinder head, DOHC 16-valve construction, multi-point fuel injection (MPI), variable valve timing and a timing chain.
Unlike some later Theta II engines, the G4KD uses MPI rather than gasoline direct injection (GDI) and does not have a turbocharger.
The engine code is especially important when sourcing a replacement because Hyundai and Kia produced several closely related Theta engines, including the G4KE, G4KJ and G4KH. Similar appearance does not necessarily mean interchangeability, so the engine code, VIN, vehicle model and market specification should be verified before ordering.
G4KD Engine Specifications
| Specification | G4KD |
|---|---|
| Engine family | Hyundai/Kia Theta II |
| Displacement | 1,998 cc / 2.0L |
| Configuration | Inline-four |
| Fuel system | Multi-point injection (MPI) |
| Aspiration | Naturally aspirated |
| Bore × stroke | 86 × 86 mm |
| Compression ratio | 10.5:1 |
| Valvetrain | DOHC, 16 valves |
| Variable valve timing | CVVT (Dual CVVT on many versions) |
| Timing drive | Timing chain |
| Cylinder block | Aluminum |
| Cylinder head | Aluminum |
| Typical power | Approx. 145–165 hp |
| Typical torque | Approx. 190–200 Nm |
Exact horsepower and torque vary by vehicle and market calibration, which is why different G4KD applications may show slightly different figures.
What Cars Use the G4KD Engine?
The G4KD was used in a range of Hyundai and Kia passenger cars and SUVs, mainly in 2.0L gasoline applications. Common models include:
- Hyundai Sonata – used in selected 2.0L gasoline versions, depending on generation and market.
- Hyundai ix35 / Tucson (LM, depending on market) – fitted to certain 2.0L naturally aspirated gasoline versions.

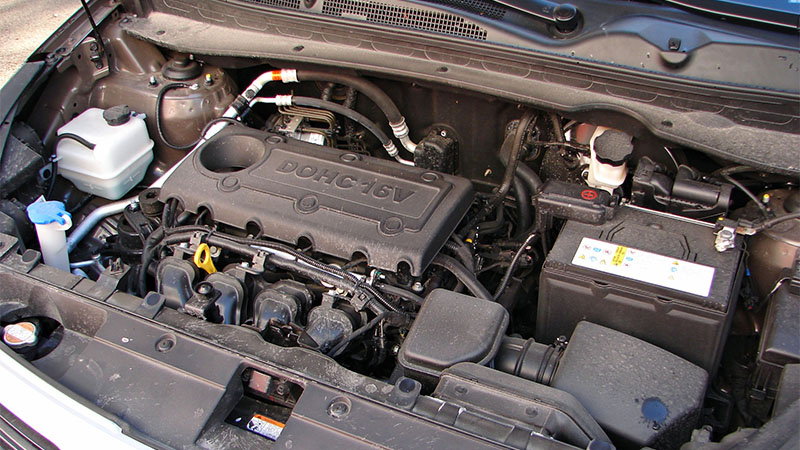

- Kia Sportage – found in selected 2.0L gasoline versions across several markets.
- Kia Cerato / Forte – used in some 2.0L sedan and hatchback applications.
- Kia Optima / K5 – available with the G4KD in certain 2.0L gasoline configurations.
- Kia Magentis – also used the G4KD in selected 2.0L variants.
Applications vary by production year, country and vehicle specification. The same model could be offered with different gasoline or diesel engines depending on the market.
For example, a Kia Sportage listed simply as a “2.0L” is not automatically a G4KD, and the same applies to models such as the Tucson and Sonata.
Before sourcing a replacement engine, it is best to confirm:
- the engine code;
- the VIN;
- the vehicle model and production year;
- the original sales market;
- and, where necessary, the transmission or drivetrain configuration.
This is especially important when sourcing engines internationally, as externally similar G4KD-family engines may use different sensors, accessories or mounting components.
Is the G4KD Engine Reliable?
The G4KD has a mixed reliability reputation.
Its naturally aspirated design and multi-point fuel injection system are relatively simple, and many well-maintained engines have covered high mileage without major repairs. However, older or poorly maintained examples can develop issues such as cylinder-wall wear, piston noise, oil consumption and bearing wear.
Maintenance history is especially important. Regular oil changes, keeping the oil at the correct level and addressing unusual noises early can significantly affect engine life.
For this reason, mileage alone is not the best indicator of condition. A higher-mileage G4KD with a good service history may be a better choice than a lower-mileage engine with unknown maintenance.
When evaluating a used or replacement engine, check for abnormal knocking, oil consumption, compression consistency and signs of internal wear.
Overall, the G4KD can be a reliable engine, but condition and maintenance history matter more than mileage alone.
Common G4KD Engine Problems
1. Cylinder Scoring and Piston Slap
Cylinder scoring is one of the most commonly reported G4KD problems. As the cylinder walls and pistons wear, increased clearance can cause tapping or knocking, especially during cold starts.
Other signs may include:
- increased oil consumption;
- reduced compression;
- blue exhaust smoke;
- persistent piston noise.
A borescope inspection can help confirm cylinder-wall damage.
2. Excessive Oil Consumption
Older G4KD engines may begin using more oil between services due to worn piston rings, cylinder wear or external leaks.
Low oil levels can accelerate bearing and crankshaft wear, so regular oil checks are especially important on higher-mileage engines.
3. Engine Knocking and Bearing Wear
A light tapping noise may indicate piston slap, while a deeper metallic knock from the lower engine can point to connecting-rod or crankshaft-bearing wear.
A deep knock combined with low oil pressure should be checked promptly, as continued driving can lead to serious engine damage.
4. Timing Chain and Tensioner Wear
The timing chain, guides and tensioner can wear over time.
Common warning signs include:
- rattling at startup;
- noise from the timing-cover area;
- rough running;
- timing-related fault codes.
There is no universal replacement interval, so inspection should be based on condition and service history.
5. Oil Leaks
Aging seals and gaskets can develop oil leaks, particularly around the valve cover and timing cover.
Minor leaks are usually repairable but should be addressed before they cause the engine oil level to drop.
G4KD Maintenance: Oil and Timing Chain
Oil quality and oil level are especially important for the G4KD, particularly on higher-mileage engines.
Depending on the vehicle, climate and market, recommended viscosities may include 5W-20, 5W-30 or 5W-40. Always follow the service information for the specific vehicle rather than using one oil grade for every G4KD.
Oil capacity can also vary by application, so use the vehicle-specific specification and confirm the final level after servicing.
The timing chain is designed for long service, but the chain, guides and tensioner still depend on proper lubrication. Low oil levels, poor-quality oil or overly long service intervals can accelerate wear.
For better long-term reliability:
- use oil that meets the correct specification;
- keep the oil level within the proper range;
- avoid excessively long oil-change intervals;
- monitor rising oil consumption;
- check startup rattles or timing-chain noise promptly;
- repair oil leaks before they lower the oil level.
Good lubrication and timely maintenance can help reduce avoidable wear and extend engine life.
G4KD vs G4KE: What’s the Difference?
The G4KD and G4KE both belong to Hyundai and Kia’s Theta II engine family, but they are different engines with different displacement and internal dimensions.
| Specification | G4KD | G4KE |
|---|---|---|
| Displacement | 2.0L / 1,998 cc | 2.4L / 2,359 cc |
| Engine family | Theta II | Theta II |
| Cylinders | Inline-four | Inline-four |
| Bore × stroke | 86 × 86 mm | 88 × 97 mm |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Typical fuel system | MPI | MPI |
| Timing drive | Chain | Chain |
| Typical output | Lower | Higher due to larger displacement |
The main difference is displacement. The G4KD is a 2.0L engine, while the G4KE is a 2.4L version with a larger bore and longer stroke. As a result, the G4KE generally produces more torque and is commonly used in larger or heavier Hyundai and Kia models.
Although the two engines share the same basic Theta II architecture and can look similar externally, they should not be treated as direct replacements for one another. Internal components, engine management, accessories and vehicle-specific fittings may differ.
For parts or replacement-engine sourcing, always verify the engine code, VIN and vehicle application rather than relying on appearance or engine family alone.
What to Check When Sourcing G4KD Replacement Engines
For distributors, importers and repair networks, sourcing G4KD engines is not just about matching the engine code. Compatibility, supply configuration and quality consistency all matter, especially for bulk orders.
Before ordering, confirm:
Engine Code and Application
Verify that the required engine is actually a G4KD. Descriptions such as “Sportage 2.0” are not specific enough, as the same model may use different engines across markets and production years.
Provide the engine code, VIN where available, vehicle model, year and target market.
Long Block or Complete Engine
Confirm exactly what is included. A long block usually covers the main internal engine assembly, while a complete engine may include additional intake, fuel-system, electrical or accessory components.
Because “complete engine” is not standardized, request a detailed component list before ordering.
External Components
Check whether items such as manifolds, sensors, alternator, starter, mounts and flywheel or flexplate are included or need to be transferred from the original engine.
Quality Control and Testing
For bulk sourcing, ask about:
- inspection and testing procedures;
- supplied configuration;
- batch consistency;
- export packaging;
- warranty and claim handling.
Clear specifications before shipment can help reduce compatibility issues, installation delays and after-sales costs.
FAQ
Is the G4KD engine reliable?
The G4KD has a mixed reliability record. Well-maintained engines can provide long service, but higher-mileage examples may develop cylinder scoring, piston noise, oil consumption or internal bearing wear. Maintenance history and overall condition are therefore important when evaluating a used engine.
What are the most common G4KD engine problems?
Commonly reported G4KD problems include cylinder-wall scoring, piston slap, excessive oil consumption, bearing wear and timing-chain or tensioner wear. Not every engine develops these issues, but they are worth checking when inspecting a used or replacement G4KD.
What cars use the G4KD engine?
The G4KD was used in selected 2.0L gasoline versions of the Hyundai Sonata and ix35/Tucson, as well as the Kia Sportage, Cerato/Forte, Optima/K5 and Magentis. Applications vary by model year and market, so the engine code or VIN should be verified before sourcing a replacement.
Is the G4KD MPI or GDI?
The G4KD uses multi-point fuel injection (MPI), not gasoline direct injection (GDI). This is an important distinction because Hyundai and Kia also produced other Theta II engines with direct injection.
Does the G4KD use a timing belt or timing chain?
The G4KD uses a timing chain. It is designed for long service life, but the chain, guides and tensioner can wear over time. Startup rattles or timing-related fault codes are signs that the timing system should be inspected.
Conclusion
The G4KD is a 2.0-liter Theta II MPI engine widely used in Hyundai and Kia vehicles. While its design is relatively straightforward, cylinder wear, oil consumption, knocking and timing-chain condition are important areas to inspect as these engines age.
For replacement-engine sourcing, correct identification is just as important as engine condition. Always confirm the engine code, VIN, vehicle application and required configuration before placing an order.
