Kia Sportage Engine Models: Engine Codes, Specs & Generations

The Kia Sportage has been around since the early 1990s, but there is no single answer to the question, “What engine does a Kia Sportage have?”

Over five generations, Kia has used a wide range of gasoline, diesel, turbocharged, and, more recently, hybrid powertrains. To make things slightly more complicated, the engine fitted to a Sportage can differ considerably by country. A Sportage sold in the United States may have a completely different engine from one of the same year sold in Europe, Australia, or Korea.

For owners, repair shops, and engine buyers, that makes the engine code just as important as engine size.

This guide covers the major Kia Sportage engine models by generation, explains common engine codes such as G4GC, G4FD, G4KD, G4NA, and D4HA, and shows what to check when identifying or sourcing a replacement Sportage engine.

Kia Sportage Engine Models at a Glance

The table below provides a practical overview of the main engines found across different Sportage generations.

Note: Engine availability and generation transition years vary by market. The table above covers major Kia Sportage engine applications rather than every regional configuration. Always confirm the VIN, engine code, and vehicle specification when identifying or sourcing a replacement engine.

Kia itself describes the first Sportage as using inline-four gasoline and diesel engines with displacements from 1,998 to 2,184 cc. By the current generation, the range has expanded to include conventional gasoline and diesel engines as well as hybrid powertrains.

Looking for a Reliable Engine & Parts Supplier?

Share your request and get a quote from our team.

Get a Quote Now

First-Generation Kia Sportage Engines (1993–Early 2000s)

The original Sportage was very different from today’s crossover. Introduced in 1993, it was a relatively compact, body-on-frame SUV with four-wheel-drive capability.

Kia’s heritage records list inline-four gasoline and diesel engines between roughly 2.0 and 2.2 liters for the first generation.

Depending on the market and production period, buyers encountered several Mazda-derived and Kia-developed engine configurations. The 2.0-liter gasoline engine became one of the more familiar choices, while diesel versions were particularly relevant in markets where fuel economy and utility mattered more than outright performance.

Today, first-generation Sportage engines are less commonly requested than those from later models. When sourcing one, however, simply asking for a “2.0 Sportage engine” is not enough. Early Sportage applications can differ in cylinder head configuration, fuel system, sensors, and accessory layout.

For an older vehicle, checking the original engine number and VIN is particularly important because previous owners may already have replaced or modified the engine.

Second-Generation Kia Sportage Engines (2004–2010)

The second-generation Sportage, commonly identified by the KM chassis code, moved closer to the compact crossover format most drivers now associate with the nameplate.

In many markets, one of its core engines was the 2.0-liter G4GC, a naturally aspirated four-cylinder gasoline engine from Hyundai-Kia’s Beta family.

Technical application catalogs list the Sportage KM with the 1,975 cc G4GC, and also show the G4KD appearing in certain late KM applications from around 2009.

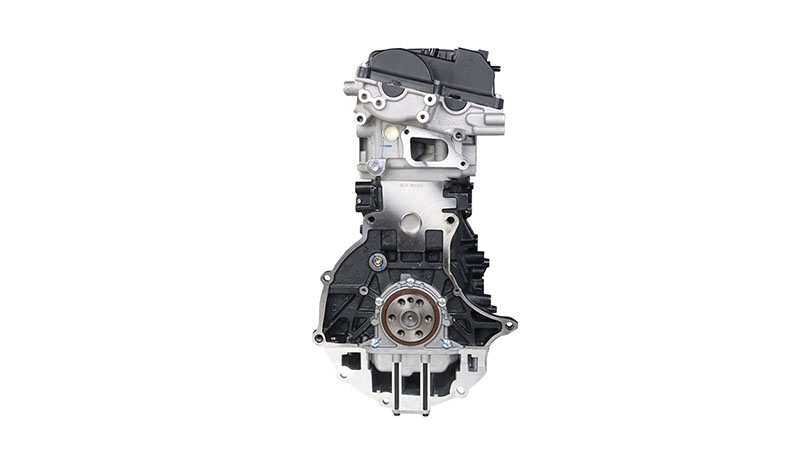

2.0L G4GC Gasoline Engine

The G4GC is one of the more straightforward Sportage engines of this period. It uses multi-point fuel injection rather than the direct-injection systems that became common later.

For repair businesses and parts buyers, G4GC is also a much more useful identifier than “2.0L Kia engine,” because the same displacement was used by several completely different engine families across later Sportage generations.

2.7L V6 Gasoline Engine

North American Sportage models were also available with a 2.7-liter V6.

For the 2009 U.S.-market Sportage, Kia listed a 2.0-liter four-cylinder producing 140 hp and an optional 2.7-liter V6 producing 173 hp.

The V6 was largely a regional offering rather than a global Sportage standard, which is a good example of why model year alone cannot identify the correct engine.

2.0L CRDi Diesel

European and other diesel-oriented markets also received 2.0-liter common-rail diesel versions. These engines offered much stronger low-speed torque than the gasoline engines and became popular in markets where the Sportage was used for higher-mileage driving.

Third-Generation Kia Sportage Engines (2010–2015)

The third-generation SL Sportage brought one of the biggest changes in the model’s engine range.

Depending on the region, buyers could choose from naturally aspirated gasoline engines, direct-injection engines, turbocharged gasoline engines, and CRDi diesels.

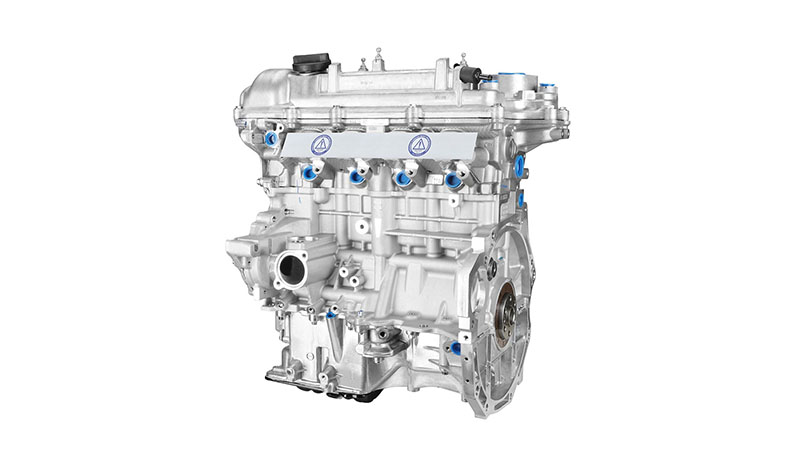

1.6L GDI – G4FD

European-market Sportage models used the 1.6-liter G4FD, part of Hyundai-Kia’s Gamma engine family.

NGK/Niterra application data identifies the Sportage SL 1.6 GDI with engine code G4FD, rated at 99 kW in the listed European application.

This naturally aspirated direct-injection engine later carried over into the fourth-generation Sportage.

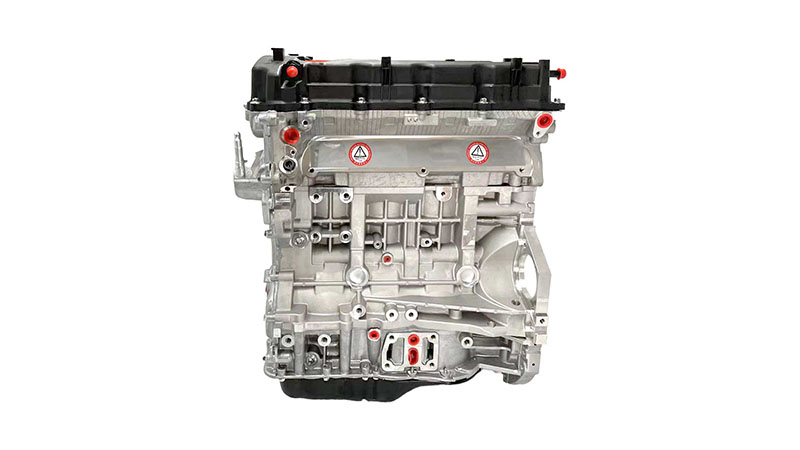

2.0L G4KD

The G4KD is one of the most recognizable Kia Sportage engine codes and an important replacement-engine application.

It is a 2.0-liter Theta II gasoline engine used in a number of Hyundai and Kia vehicles. Niterra’s catalog lists the Sportage SL 2.0 CVVT with the G4KD from 2010, while later SL applications also included the G4NA in some markets.

Because both can be described simply as a “2.0 Sportage engine,” checking the actual engine code is essential.

2.4L Gasoline Engine

In North America, the third-generation Sportage took a different direction.

The 2011 U.S. Sportage launched with a 2.4-liter DOHC four-cylinder producing 176 hp, replacing the previous generation’s 2.7-liter V6. Kia also added a higher-performance 2.0-liter turbo GDI engine to the lineup.

The Sportage SX’s Theta II 2.0 turbo produced up to 260 hp and 269 lb-ft of torque in Kia’s U.S. specifications.

So a 2012 Sportage in the U.S. and a 2012 Sportage in Europe may have very different engines under the hood.

1.7L and 2.0L CRDi Diesels

Diesel engines were much more important in Europe.

The third-generation range included a smaller 1.7-liter CRDi and a 2.0-liter R-family diesel. Kia’s historical documentation records the Sportage R with a 2.0 diesel producing up to 184 PS.

The 2.0-liter R-series diesel is commonly associated with the D4HA engine code and remains an important replacement application in many markets.

Fourth-Generation Kia Sportage Engines (2015–2021)

The fourth-generation QL Sportage had perhaps the most geographically diverse engine lineup.

Europe emphasized small gasoline engines and diesels. North America continued with larger naturally aspirated and turbo gasoline engines. Other markets offered their own combinations.

1.6L GDI – G4FD

The naturally aspirated 1.6 GDI Gamma engine carried over from the previous generation.

For the European-market model, Kia rated it at 132 PS and 160.8 Nm.

Niterra application data confirms G4FD as the engine code for the QL Sportage 1.6 GDI.

1.6L T-GDI

Kia also introduced a turbocharged version of its 1.6-liter gasoline engine to the Sportage.

The European 1.6 T-GDI produced 177 PS and 265 Nm, providing much stronger mid-range performance than the naturally aspirated version.

This engine is commonly associated with the Gamma-family G4FJ, although exact engine-code applications should still be checked against the destination market and VIN.

2.0L and 2.4L Gasoline Engines

North American buyers again received a very different selection.

The 2017 U.S.-market Sportage LX and EX used a 2.4-liter GDI four-cylinder producing 181 hp, while the SX Turbo came with a 2.0-liter turbo GDI producing 240 hp in FWD form and 237 hp with AWD.

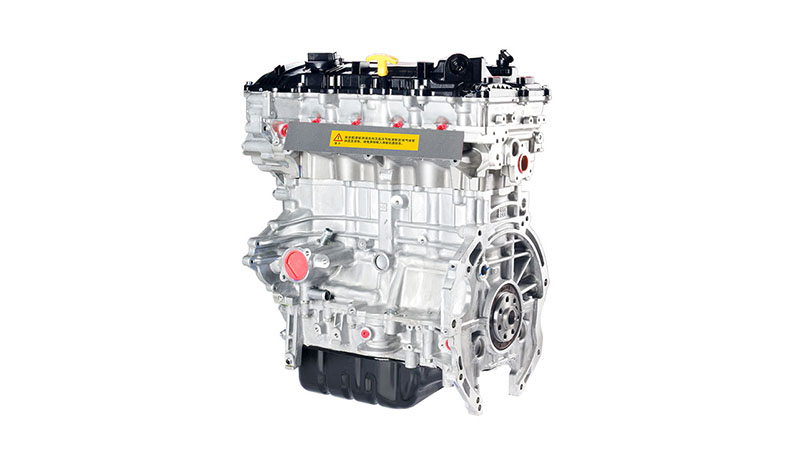

Elsewhere, naturally aspirated 2.0-liter engines were also available. Niterra catalogs identify G4NA applications in both late third-generation and fourth-generation Sportage models.

Again, this is why descriptions such as “Sportage 2.0” should be treated as a starting point, not a definitive engine identification.

1.7L, 1.6L and 2.0L CRDi Diesels

At launch in Europe, the QL generation offered a 1.7 CRDi and two 2.0-liter CRDi versions. The 2.0 R-family diesel was available with 136 PS or 185 PS.

During the 2018 update, Kia replaced the older 1.7 CRDi with a new 1.6-liter U3 CRDi, available in 115 PS and 136 PS outputs.

Parts-catalog data identifies this 1.6 CRDi application with engine code D4FE.

Fifth-Generation Kia Sportage Engines (2021–Present)

The fifth-generation NQ5 Sportage marks the biggest change in the engine lineup because electrified powertrains now sit alongside conventional gasoline and diesel engines.

However, current engine choices differ substantially by country.

Kia’s heritage information describes the fifth-generation Sportage as available with inline-four gasoline, diesel, and hybrid powertrains.

Smartstream 1.6L Turbo Gasoline

The 1.6-liter Smartstream T-GDI engine is used widely across the current Sportage range and also forms the combustion-engine side of several hybrid configurations.

Unlike older Sportage generations, the engine is increasingly integrated with technologies such as continuously variable valve duration and electrified drivetrains.

2.0L Gasoline

Some markets continue to offer a naturally aspirated 2.0-liter gasoline engine.

For example, Kia Australia’s MY26 Sportage specification lists a 1,999 cc Smartstream G2.0 MPI producing 115 kW and 192 Nm.

2.5L Gasoline

Other regions, particularly North America, use a larger 2.5-liter naturally aspirated gasoline engine as the conventional powertrain.

This is a good illustration of the regional difference: searching for a “2025 Kia Sportage engine” without specifying the country may produce several correct but completely different answers.

Diesel Engines

Diesel is still available in selected markets.

Kia Australia’s MY26 lineup, for instance, includes a 1,998 cc Smartstream 2.0 turbo-diesel producing 137 kW and 416 Nm.

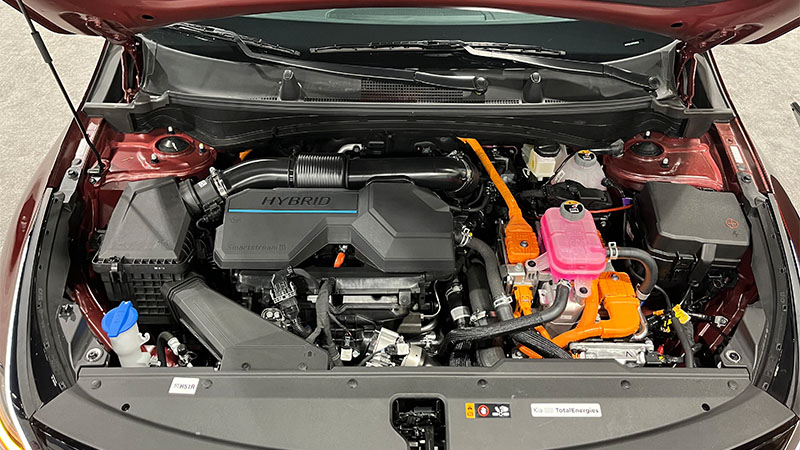

Hybrid and Plug-In Hybrid Sportage

Hybrid powertrains are now a major part of the Sportage family.

These generally pair a 1.6-liter turbocharged gasoline engine with an electric motor, while plug-in hybrid versions add a larger battery and external charging capability.

For engine buyers, that makes identification more complex. A hybrid Sportage cannot simply be treated as another 1.6 T-GDI application because the engine, transmission, electrical architecture, control systems, and accessories form part of an integrated powertrain.

Common Kia Sportage Engine Problems

It is difficult to describe Sportage engine reliability with a single statement because the nameplate covers several generations and many unrelated engine families.

That said, a few issues appear more often than others.

Oil Consumption

Higher-mileage gasoline engines can develop increased oil consumption due to piston-ring wear, cylinder wear, valve-seal deterioration, PCV-system problems, or poor maintenance history.

If oil consumption rises significantly, the cause should be diagnosed rather than assuming the entire engine needs replacement.

Engine Knocking and Bearing Wear

Some Hyundai-Kia gasoline engine applications have been associated with connecting-rod bearing wear and related knocking concerns. Knocking noises, falling oil pressure, or metallic debris in the engine oil should never be ignored.

Before purchasing a used replacement engine, checking its history and internal condition is particularly important.

Carbon Buildup on GDI Engines

Gasoline direct injection improves combustion control but can allow carbon deposits to accumulate on intake valves because fuel no longer washes over the back of the valve.

Symptoms may include rough idle, hesitation, reduced performance, or misfires.

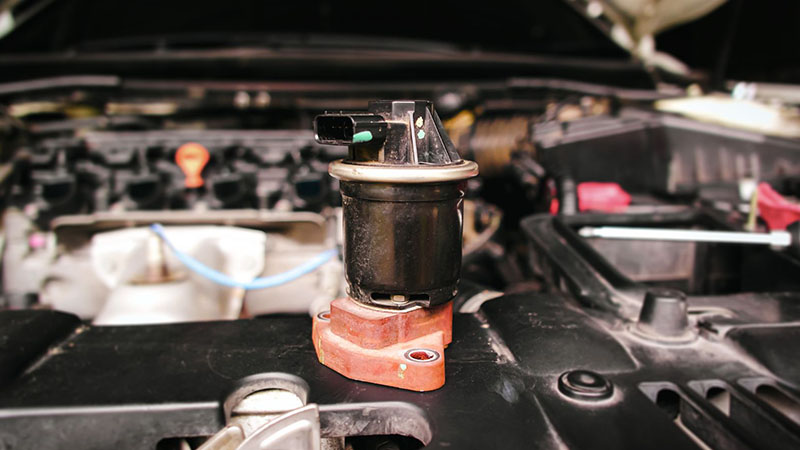

Diesel EGR, DPF and Turbo Issues

Modern CRDi engines add another set of components to maintain. EGR contamination, diesel particulate filter problems, injectors, and turbocharger wear can all create symptoms that may initially look like internal engine failure.

A proper diagnosis can prevent replacing an otherwise usable long block.

Kia Sportage Replacement Engine Buying Guide

For distributors, wholesalers, repair businesses, and other professional buyers, identifying the correct Sportage engine is the first step before requesting a quotation. Engine displacement alone is not enough, as different Sportage generations can use different engine families with the same capacity.

Confirm the VIN and Engine Code

The VIN helps identify the model year, production specification, and original powertrain, while the engine code provides a more precise reference for the engine itself.

For example, a 2.0-liter Sportage may use different engine families depending on the generation and market. The engine code should therefore be confirmed rather than relying only on displacement.

Verify the Model Year and Market

Sportage engine applications vary significantly between regions. A U.S.-market vehicle may use a different engine from a European or Australian Sportage of the same model year.

For importers and parts suppliers, the original sales market should be confirmed together with the VIN and engine code.

Compare the Existing Engine

Clear photos of the original engine can help verify differences in manifolds, sensors, engine mounts, wiring connections, and accessory layout.

This is particularly useful when an engine code has several market-specific configurations.

Confirm the Required Engine Configuration

Once the application has been identified, clarify what type of engine assembly is needed.

A long block generally includes the core assembled engine, while a complete engine may include additional components and accessories. The exact configuration can vary between suppliers, so included components should always be confirmed before ordering.

When requesting a quotation, professional buyers should ideally provide:

• engine code
• VIN
• model year and market
• transmission and drivetrain
• required engine configuration
• required quantity
• shipping destination

Providing this information at the quotation stage makes application checking more efficient and helps reduce compatibility issues during installation.

FAQ

What engine does a Kia Sportage have?

The Kia Sportage has used a wide range of engines across its five generations, including 1.6L, 2.0L, 2.4L, 2.5L, and 2.7L gasoline engines, several CRDi diesels, turbocharged gasoline engines, and newer hybrid and plug-in hybrid powertrains. The exact engine depends on the model year and market.

How do I know which engine is in my Kia Sportage?

The most reliable way is to check the VIN and engine code. Model year and displacement can help narrow the options, but they are not always enough because Sportage models of the same year may use different engines in different countries.

Which Kia Sportage models use the G4KD engine?

The 2.0L G4KD is most commonly associated with the third-generation Sportage (SL), although it also appears in certain late second-generation KM applications depending on the market. Always confirm the engine code before sourcing a replacement unit.

Which Kia Sportage engine is most reliable?

There is no single Sportage engine that is the most reliable in every generation or market. Reliability depends on the specific engine family, production year, mileage, service history, and maintenance quality. When evaluating a used or replacement engine, its condition and maintenance history are usually more important than reputation alone.

Are Kia Sportage engines interchangeable?

Not necessarily. Two Sportage engines may have the same displacement but use different blocks, cylinder heads, fuel systems, sensors, wiring, mounts, ECUs, or transmissions. For example, G4GC, G4KD, and G4NA are all 2.0L engines, but they belong to different engine families and should not be assumed to interchange.

Conclusion

The Kia Sportage has evolved from a relatively simple compact SUV into a global model offered with gasoline, diesel, turbocharged, hybrid, and plug-in hybrid powertrains. That variety gives buyers more choice, but it also makes accurate engine identification increasingly important.

If you’re sourcing a replacement Sportage engine, don’t rely on a description such as “2015 Kia Sportage 2.0 engine” alone. Confirm the engine code, VIN, model year, and market specification before ordering to reduce the risk of compatibility issues.
